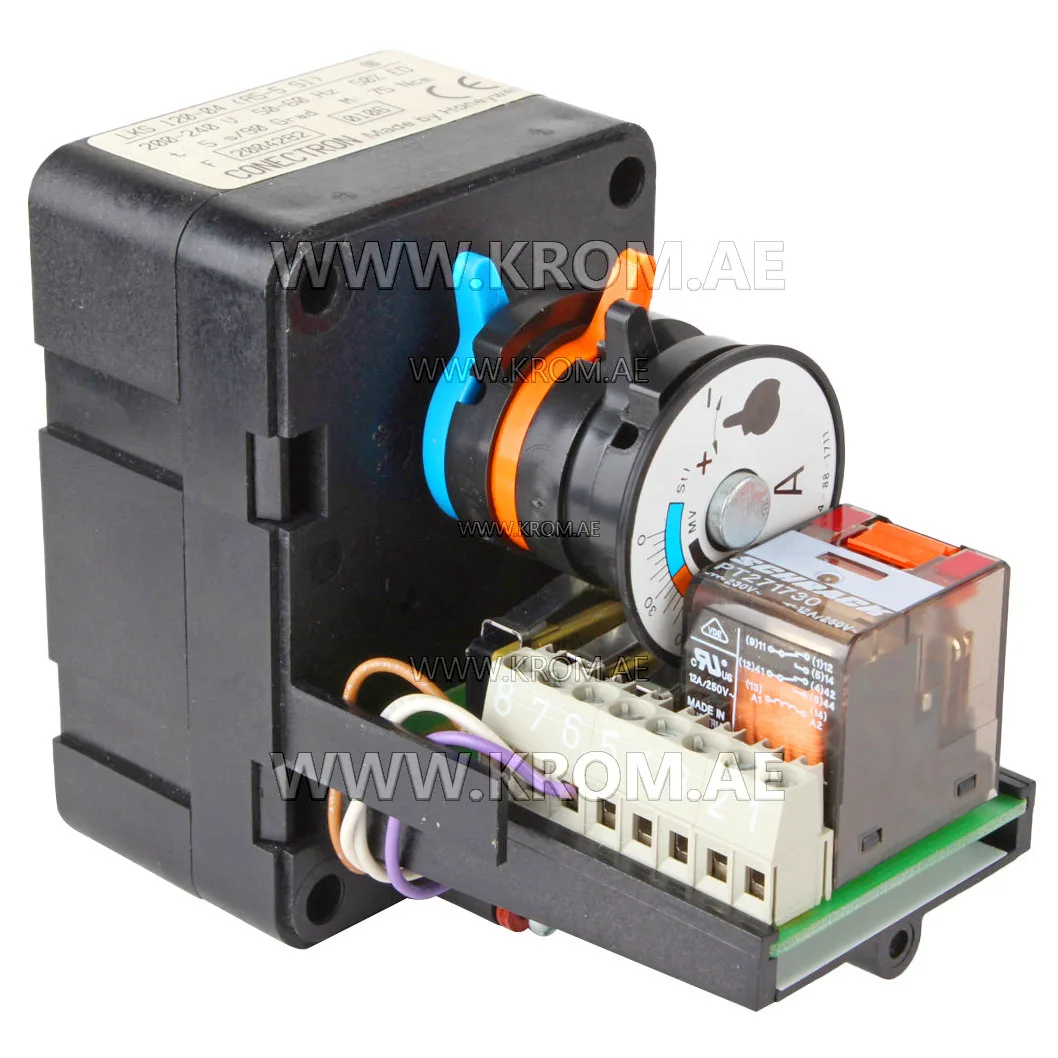

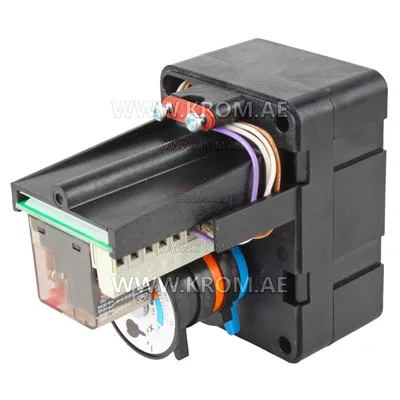

Honeywell LKS120-04 (A5-5S1) actuator

Connection LKS120-04 (A5-5S1) actuators are designed for use in burners with a single-stage or two-stage control system, regardless of the presence of a closing flap. The features of Honeywell 78-LKS120-04 servo motors include small size, robust construction and high reliability. The drive unit, which includes a synchronous motor with gearboxes, is placed in a housing made of synthetic materials and does not require regular maintenance. Technical specifications of the Honeywell Conectron 78-LKS120-04U servo motor Voltage: 230 V Power consumption: 9 VA 90° adjustment time: 5 seconds Torque: 75 N*m Protection type: IP 31 Electrical connection: 5-pole terminal block Installation: through holes for M5*50 m Ambient temperature: -10°C to +60°C Weight: 0.5 kg
