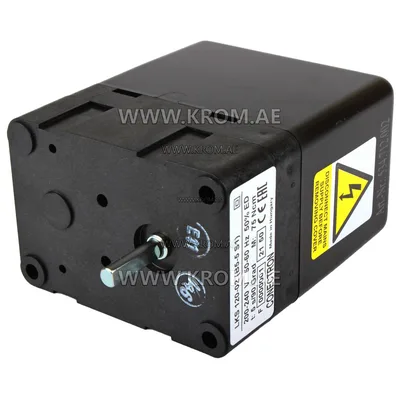

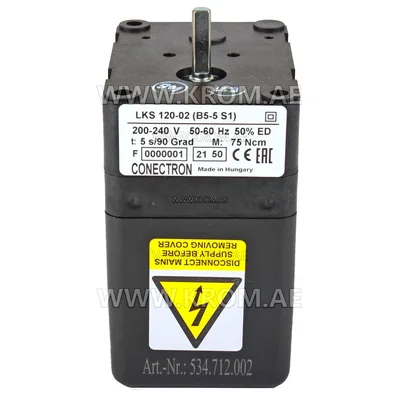

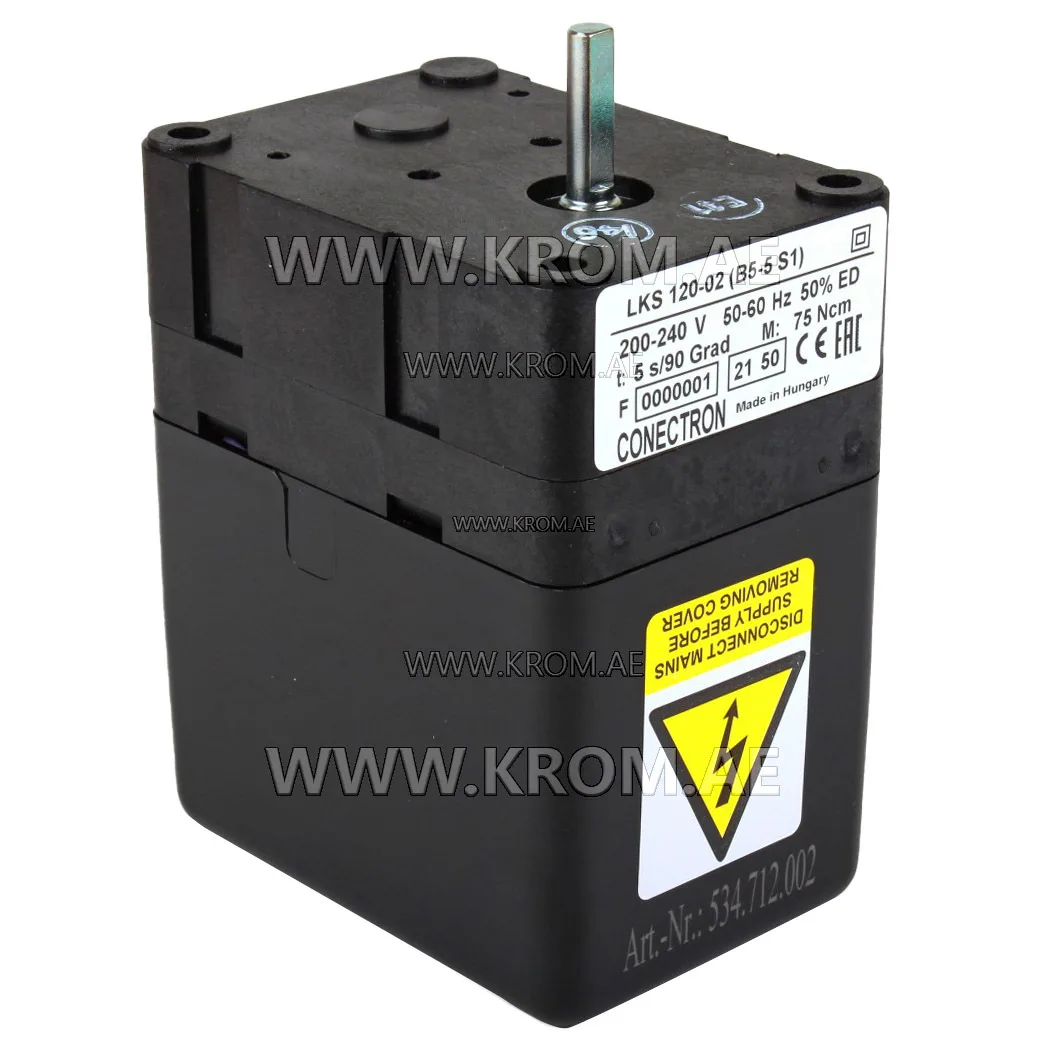

Honeywell LKS120-02 (B5-5S1) actuator

Honeywell LKS120-02 (B5-5S1) servo motors are designed for use in single-stage and two-stage burners with or without a fully closing flap. Typical features of Honeywell Conectron 78-LKS120-02U servomotors are surprisingly small dimensions, extremely robust construction and the highest possible degree of reliability. The drive unit, consisting of a synchronous motor with gearboxes, is enclosed in a synthetic housing and is completely maintenance-free. Technical specifications of the Conectron 78-LKS120-02 actuator Voltage: 230 V Power consumption: 9 VA 90° adjustment time: 5 seconds Torque: 75 N*m Protection type: IP 31 Electrical connection: 5-pole terminal block Installation: through holes for M5*50 m Ambient temperature: -10°C to +60°C Weight: 0.5 kg
