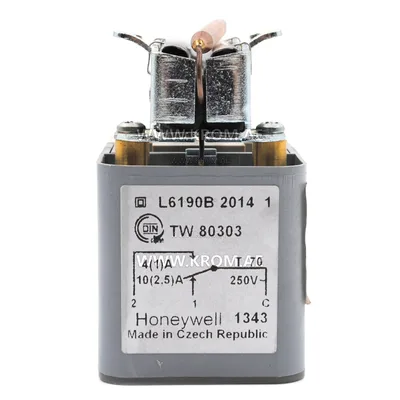

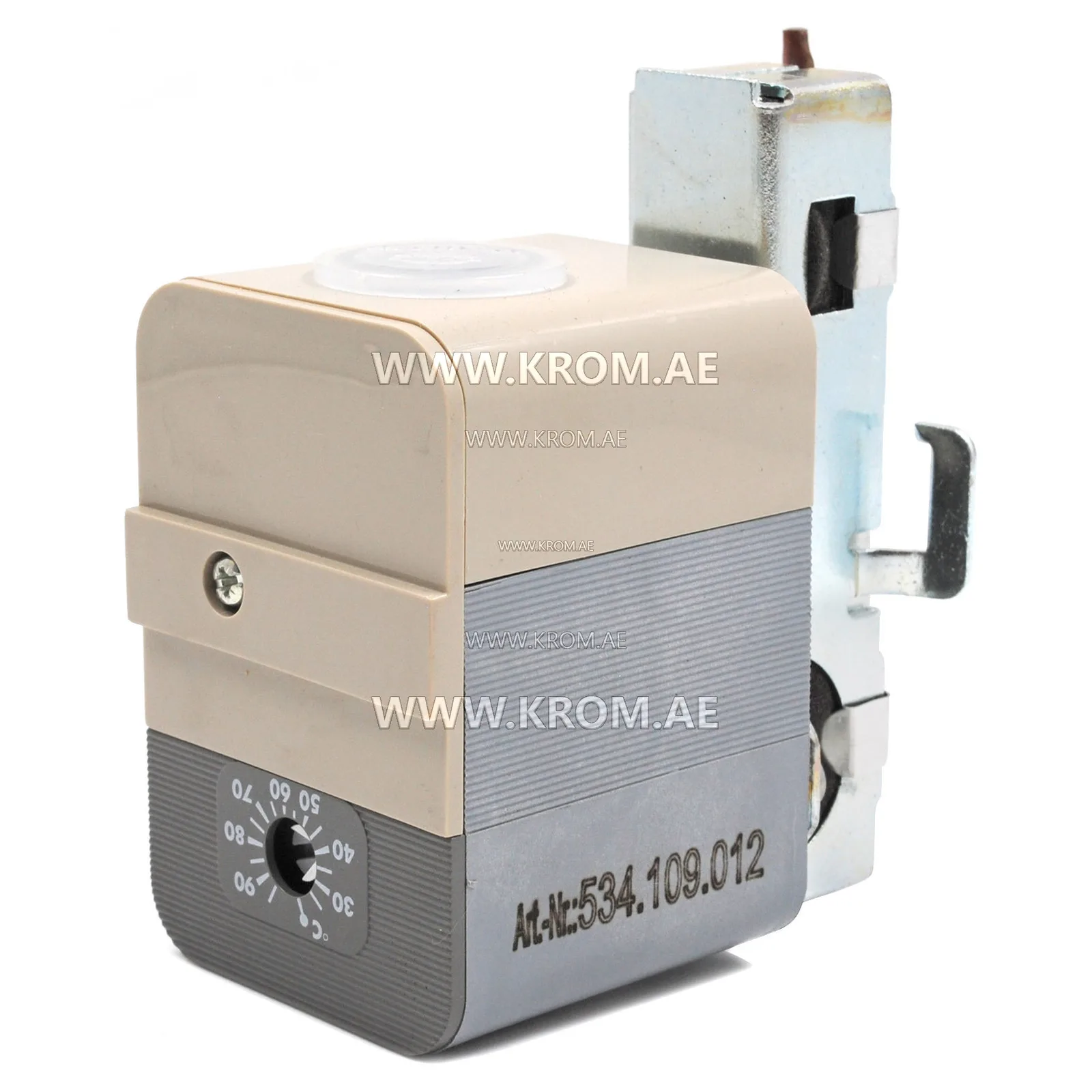

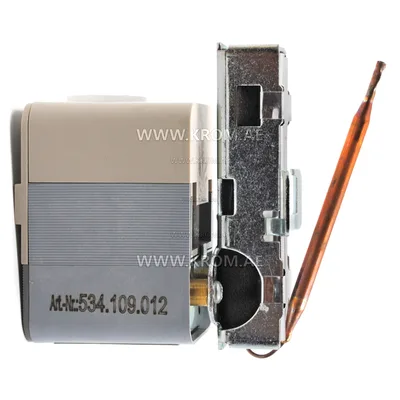

Honeywell L6190B2014U aquastat

Aquastat (thermostat) Honeywell L6190B2014U High-sensitivity surface-mount thermostat 25–95°C for regulation and protection of heating and DHW systems. The Honeywell L6190B2014U Aquastat is a reliable surface-mount thermostat with a liquid-filled sensor, designed for regulating water temperature in heating and hot water supply systems, as well as for limiting maximum temperature (overheat prevention). The model with a range of 25–95°C and SPDT switch type is ideal for controlling circulation pumps, valves, and contactors. The model is equipped with a remote liquid-filled sensor and a mounting clamp for surface mounting on a pipe or tank wall. Installation does not require draining water and can be performed without stopping the system. The high-sensitivity sensor ensures fast thermal response. If your boiler or water heater fails to shut off when the set temperature is reached, does not heat up, or operates intermittently, the cause is often a faulty original aquastat. Technical specifications: Parameter Value; Part numbers L6190B2014U, 534.109.012; Manufacturer Honeywell (Resideo); Mounting type Surface-mount (with mounting clamp); Sensor type Liquid-filled; Temperature adjustment range 25–95°C; Switching differential 12°C (fixed); Switch type SPDT (single-pole double-throw); Electrical load (resistive) 10 A at 250 V AC; Electrical load (inductive) 2.5 A at 250 V AC; Electrical load (locked rotor) 15 A at 250 V AC; Protection class IP40; Clamp length 2000 mm; Ambient temperature range 0 to 70°C; Standards CE, UL, AGA, CSA. Key advantages: High-precision liquid temperature measurement: The aquastat is equipped with a liquid-filled sensor. This design provides fast thermal
