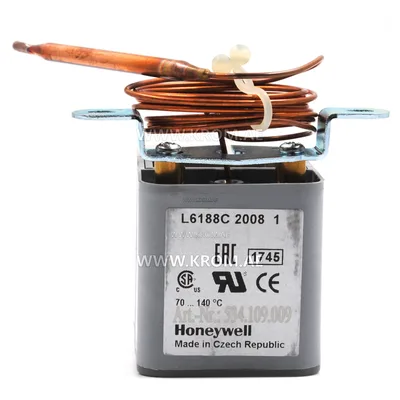

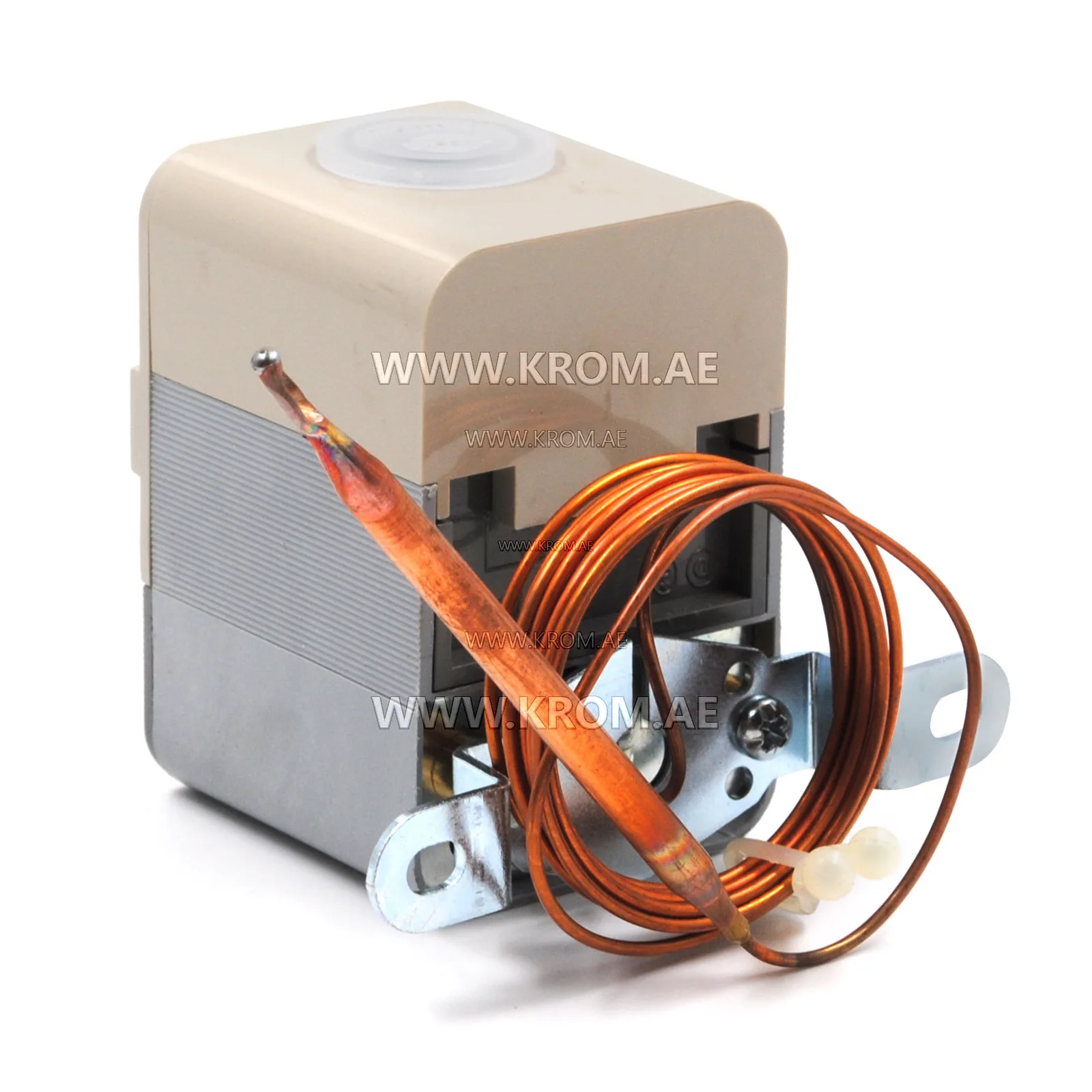

Honeywell L6188C2008U aquastat

Aquastat Honeywell L6188C2008U — immersion safety thermostat (high limit) with manual reset. Ensure maximum safety of your heating system with the Honeywell L6188C2008U aquastat. This specialized immersion limit thermostat is designed for monitoring and emergency shutdown when the maximum allowable water temperature is exceeded in boilers, water heaters, and hydraulic heating systems. The L6188C2008U model features manual reset, making it an ideal protective device: when triggered by overheating, the boiler or burner is locked until the temperature drops and the operator manually presses the reset button. This prevents restart in an emergency and increases overall system safety. Key advantages: Adjustment range 70–140 °C — well suited for high-temperature boiler operation. Manual Reset — provides reliable protection against overheating, preventing damage to the boiler, heat exchanger, and system as a whole. SPDT contacts (single-pole double-throw) — universal connection for controlling the burner, pump, or valves. High switching capacity: 10(2.5) A at 250 V. Fast response thanks to liquid-filled sensing element and direct immersion mounting in a well (well purchased separately). Convenient adjustment with protection against accidental parameter changes. Main specifications: Temperature range: 70…140 °C Type: high-temperature limit aquastat with manual reset Switching: SPDT Mounting: direct immersion Ambient temperature: 0…70 °C Compact and robust housing with protective cover Honeywell L6188C2008U is a professional solution for gas, solid fuel, electric, and combination boilers. It is mandatory in systems...
