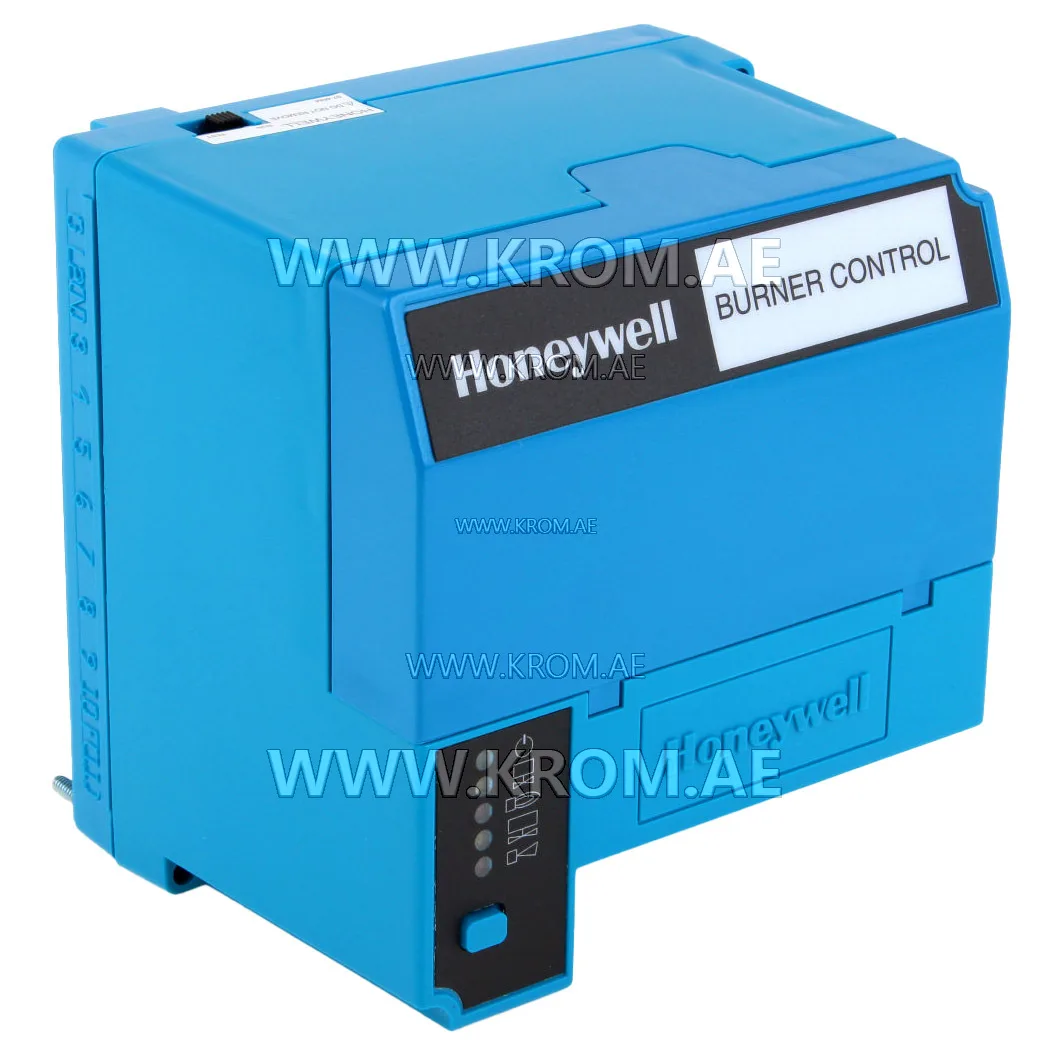

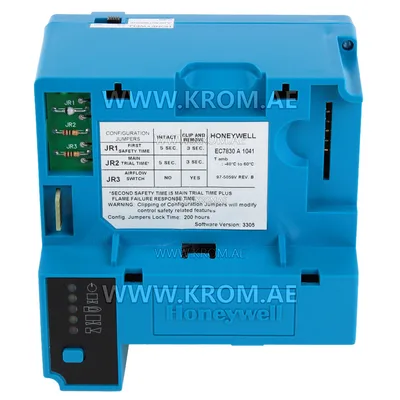

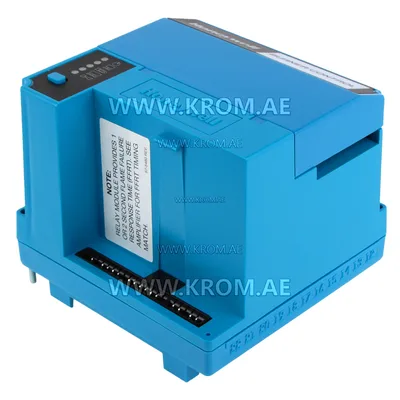

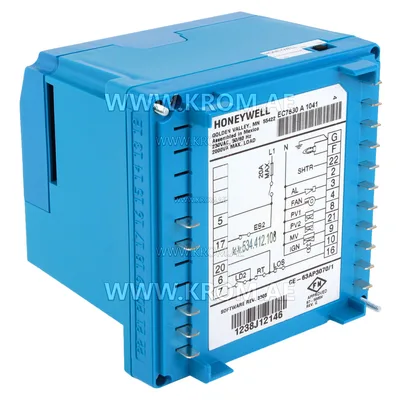

Honeywell EC7830A1041 burner control

Honeywell EC7830A 1041 automatic burner control unit provides automatic sequencing of burner operations, flame monitoring, system status indication, system diagnostics, and fault detection. Honeywell EC7830A1041 burner control unit allows external voltage monitoring and offers flexibility in application with a communication interface. Five LEDs provide information on the sequence of operations, while a five-function switch allows selection between operating mode and testing. Interchangeable, removable flame signal amplifiers add convenience. Local or remote information on equipment operation or faults can also be provided. Honeywell EC7830 A 1041 burner control features non-volatile memory for storing process history files and lockout status during power failures. Honeywell EC7830A 1041 burner controller is compatible with existing Honeywell flame detectors. Honeywell EC7830A 1041 automatic burner control unit technical data: Ambient temperature: -40 C to +60 C (-40 F to +140 F) Transport temperature: -40 C to +66 C (-40 F to +150 F) Humidity value: constant relative humidity 85%, non-condensing Power Supply: 220-240 V, 50/60 Hz Energy dissipation: 10 W max. Fuse: 20 A max. FRN type or equivalent Vibration: 0.5G in the immediate environment Start-up period: 3 or 5 seconds Postoperative purge: 30 seconds Dimensions: width - 127 mm; height - 127 mm; thickness - 133 mm with base Q7800A, thickness - 155 mm with base Q7800B. Weight: 0.7 kg Connected load: only 2000 VA max. Honeywell EC7830 A 1041 automatic burner control unit required components: Q7800A,B 22-pin mounting base Flame signal amplifiers R7824, R7847; R7848; R7849; R7861, R7886 Removable ST7800A purge timer cards Honeywell EC7830A1041 burner controller accessories: Q7700 Network Interface Unit Controlbus S7810A data bus module S7820 Remote Reset (reset) module ZM7850A Combustion System Manager software 221818A Extension cable kit, 1524 mm long 221729C Dust Cover
