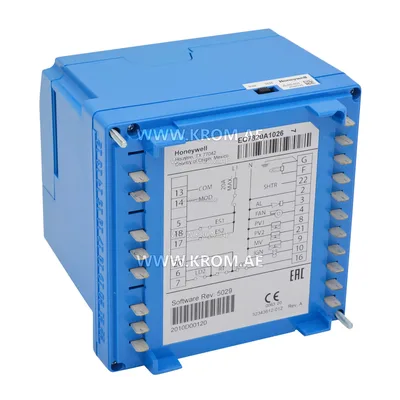

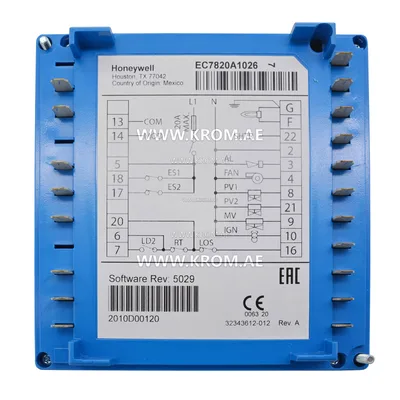

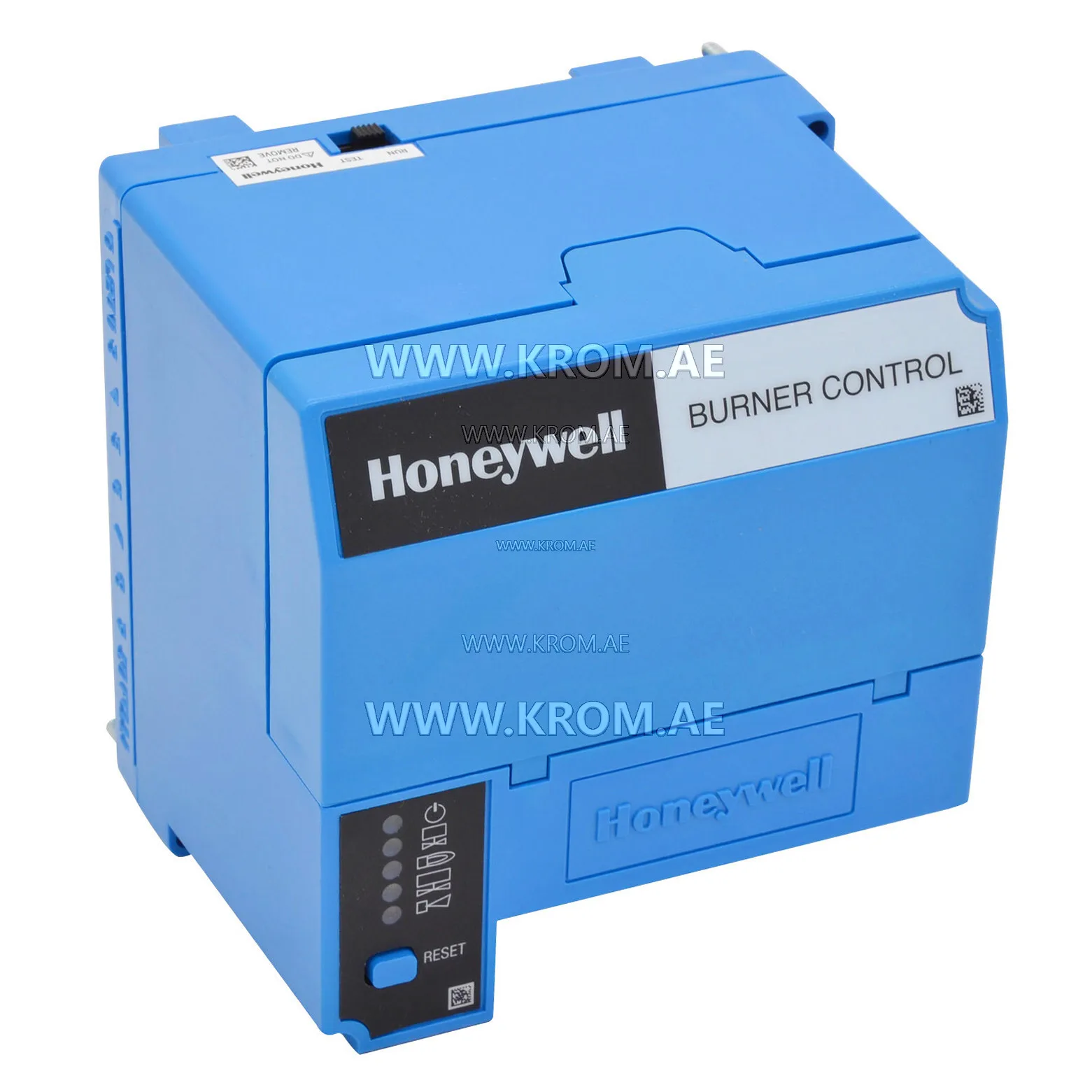

Honeywell EC7820A1026 burner control

Honeywell EC7820A 1026 burner control unit designed for controlling a single low-pressure burner. Honeywell EC7820 A 1026 burner control unit ensures the sequential execution of burner operations, monitors the flame, displays system status, performs system and self-diagnostics, and detects and diagnoses faults. Honeywell EC7820 A 1026 burner control technical data: Start-up period: 2 s Postoperative purge: 5 seconds Ignition attempts: 1 Dimensions: width - 127 mm; height - 127 mm; thickness - 133 mm with base Q7800A, thickness - 155 mm with base Q7800B. Weight: 0.7 kg Ambient temperature: -40 C to +60 C (-40 F to +140 F) Transport temperature: -40 C to +66 C (-40 F to +150 F) Humidity value: constant relative humidity 85%, non-condensing Power Supply: 220-240 V, 50/60 Hz Energy dissipation: 10 W max. Fusing: 20 A max. FRN type or equivalent Vibration: 0.5G in the immediate environment Honeywell EC7820A1026 burner control unit necessary components: Q7800A,B 22-pin mounting base Flame signal amplifiers R7824, R7847; R7848; R7849; R7861, R7886 Removable ST7800A purge timer cards Honeywell EC7820 A 1026 burner controller accessories: Interface for personal computer Display module with keyboard (KDM) S7800A Controlbus S7810A data bus module Remote reset (reset) module S7820 Combustion System Manager software ( System Administrator) ZM7850A Extension cable kit 221818A, 1524 mm long Dust cover 221729C
