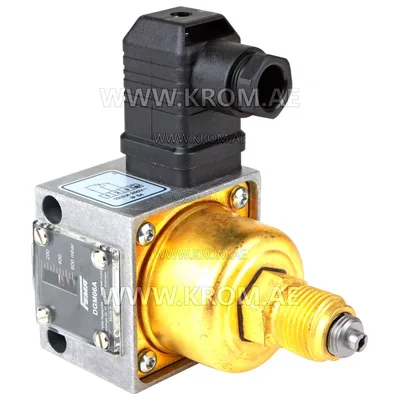

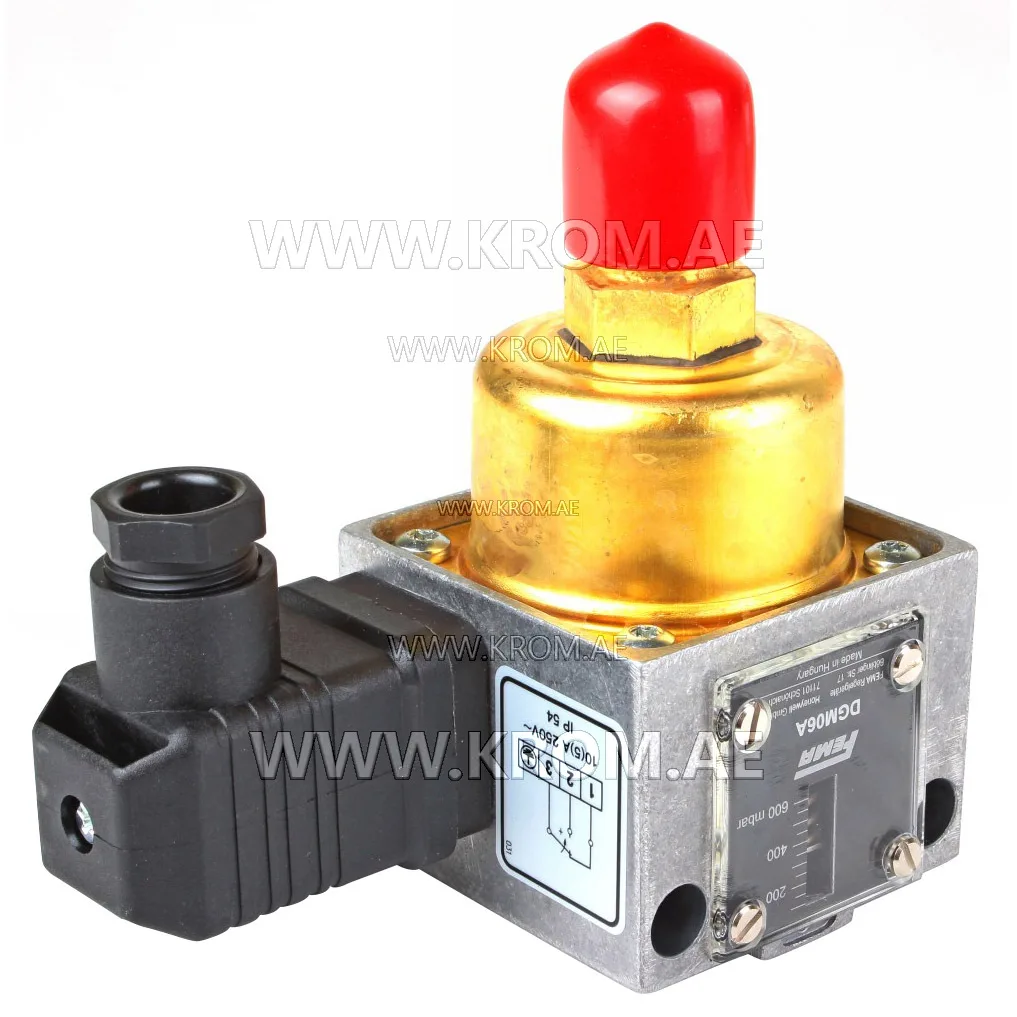

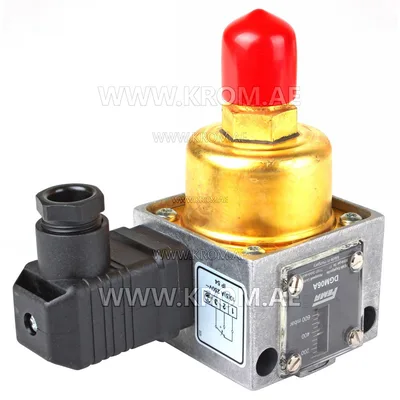

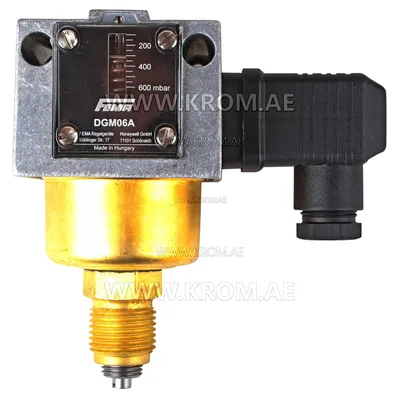

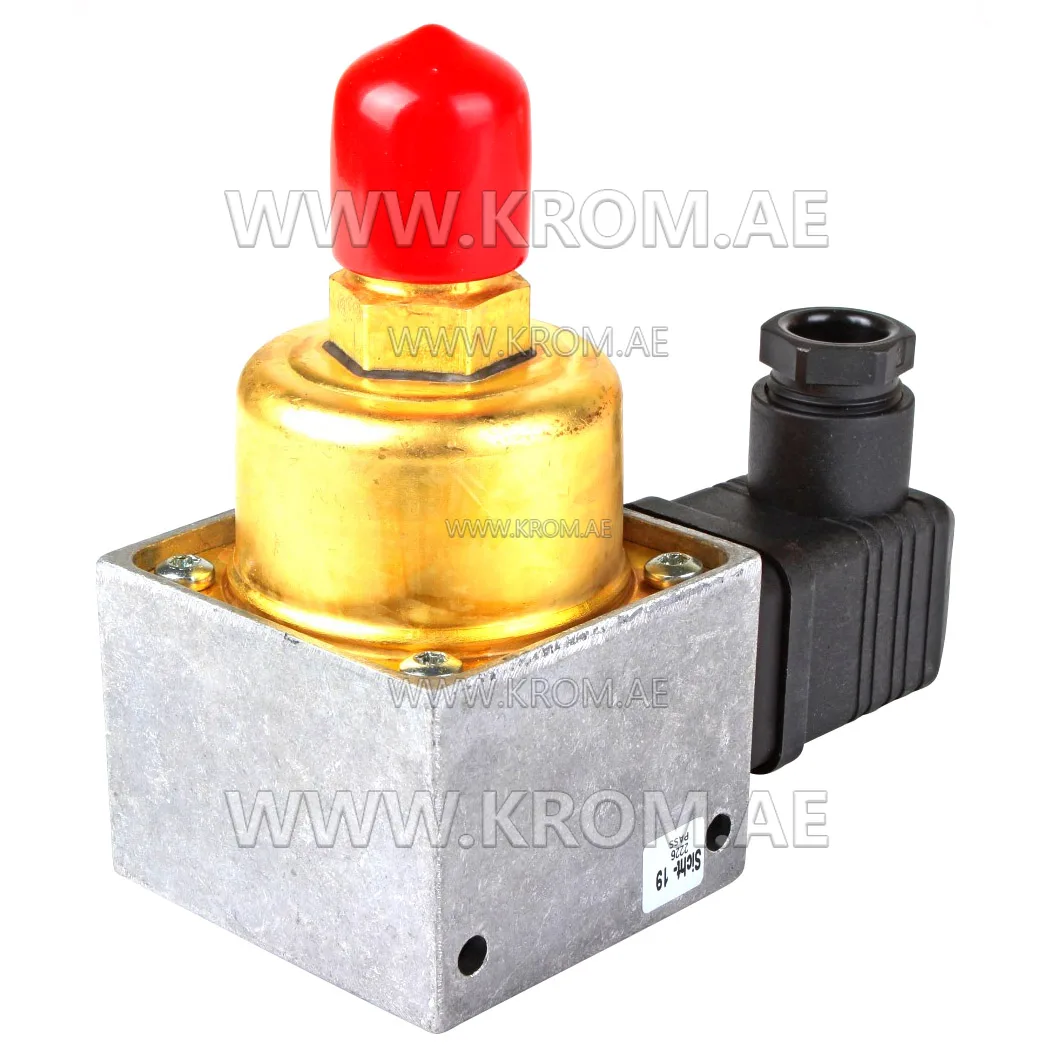

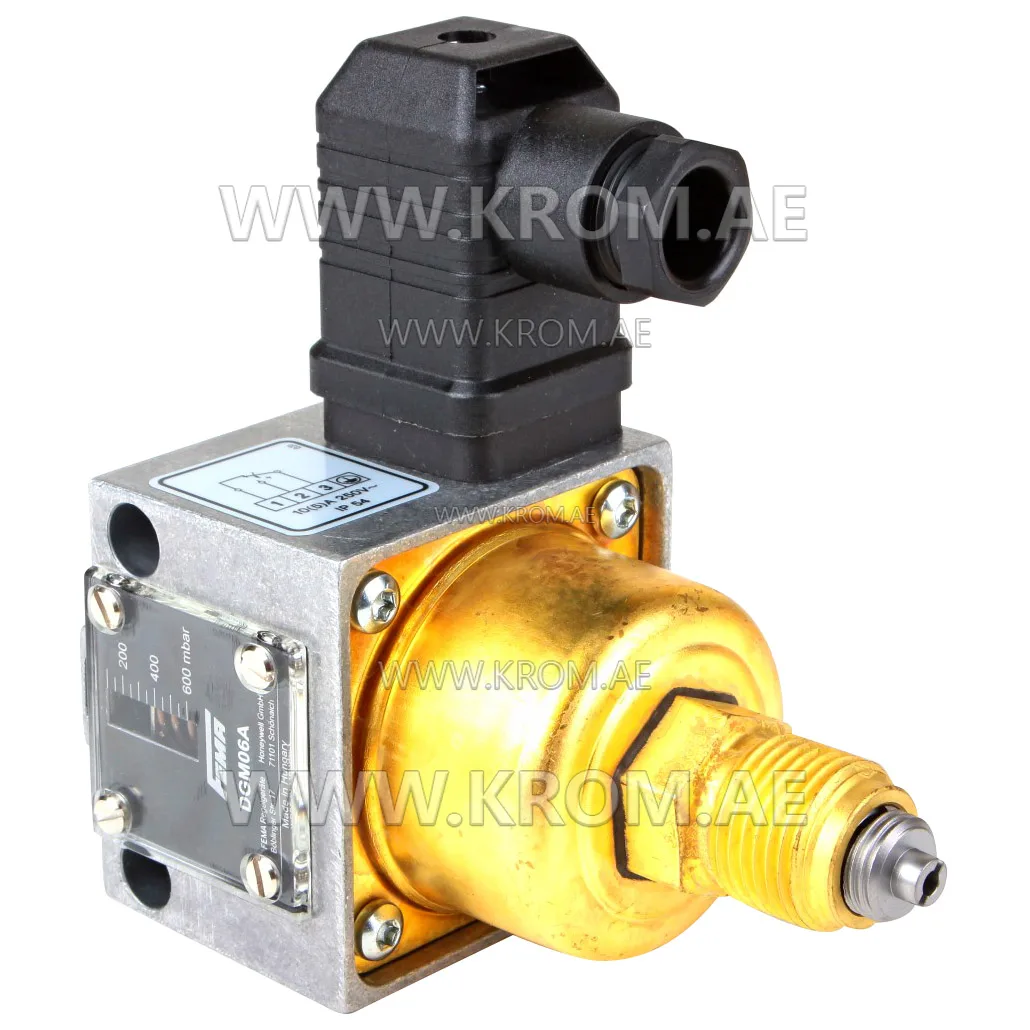

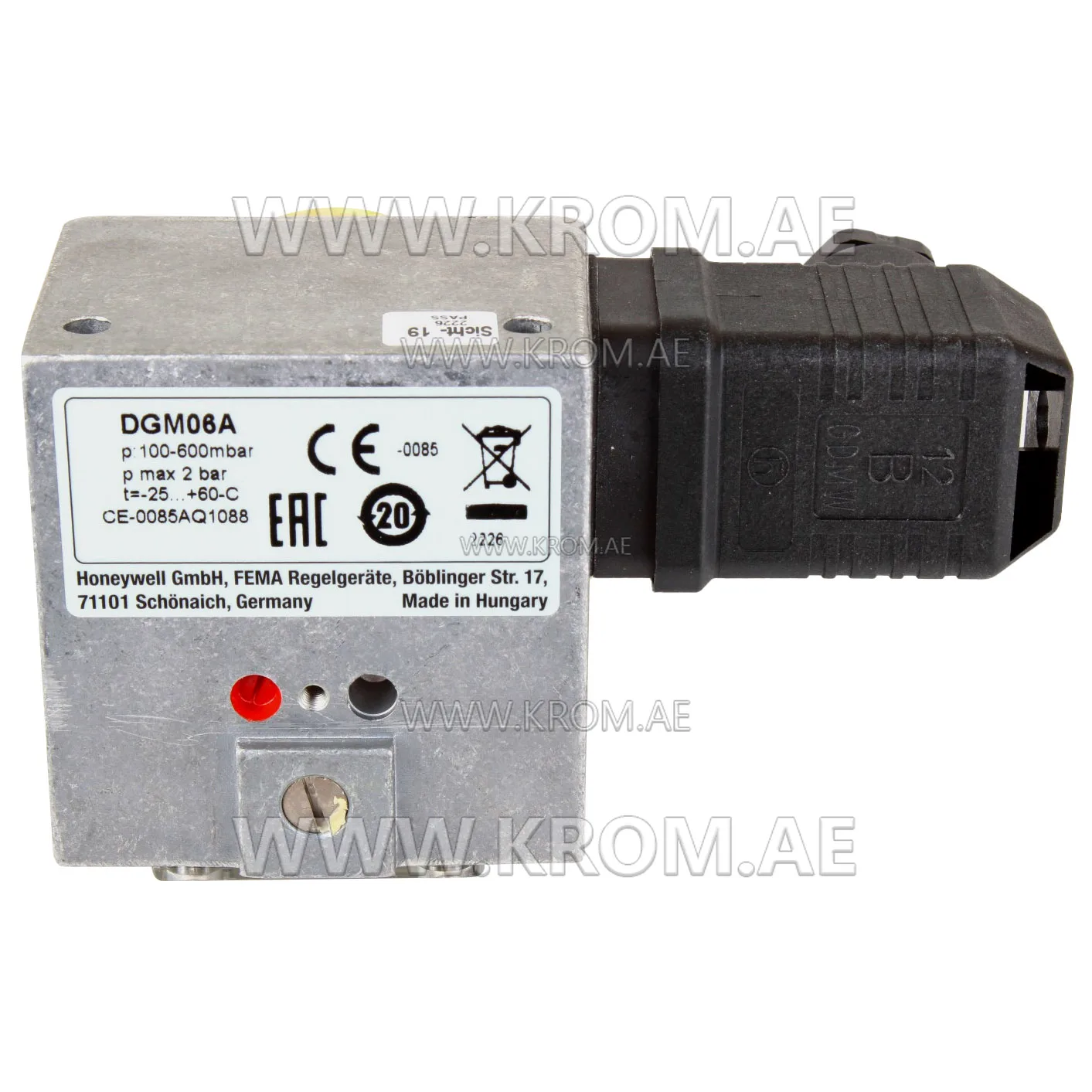

Honeywell DGM06A pressure switch

Fema DGM06A pressure switch designed to operate with steam, hot water, fuel gases, and liquid fuels. Honeywell Fema DGM06A gas pressure switch provide reliable pressure measurement in various conditions, including high-temperature and aggressive environments. Honeywell DGM06A pressure switch also comply with standards DVGW G260 and EN 1854 for gas applications. It is recommended to conduct thorough chemical resistance testing before selecting and installing this equipment. Honeywell DGM06A differential pressure switch technical data Setting range: 100-600 mbar Switching differential: 25 mbar Maximum working pressure: 2 bar ambient temperature: -25 to 60 °C ambient temperature: 60 °C The difference in the sizes of materials operating at contact pressure (average values) when pulling the medium Switching: Single-pole switching Switching capacity: 8 (5) A, 250 V AC Installation position: Vertical and horizontal Pressure connection: External thread G 1/2” A (pressure gauge connection) according to DIN 16288 and internal thread G 1/4” according to ISO 228, Part 1. When working with gas, the internal thread is allowed only at pressures up to 4 bar. If the pressure is > 4 bar, use a flat O-ring.
