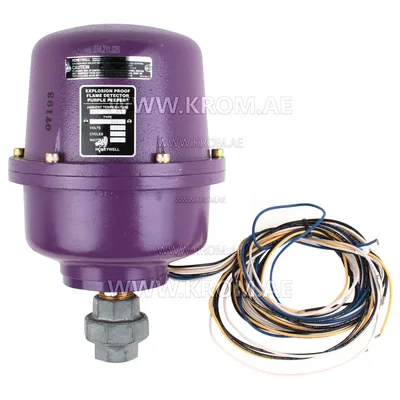

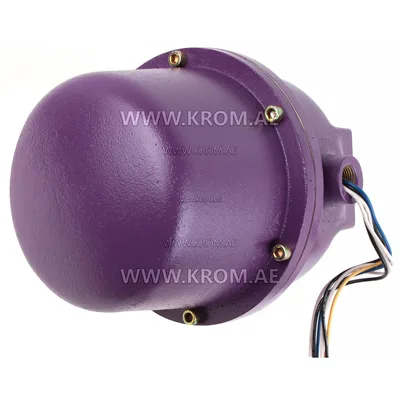

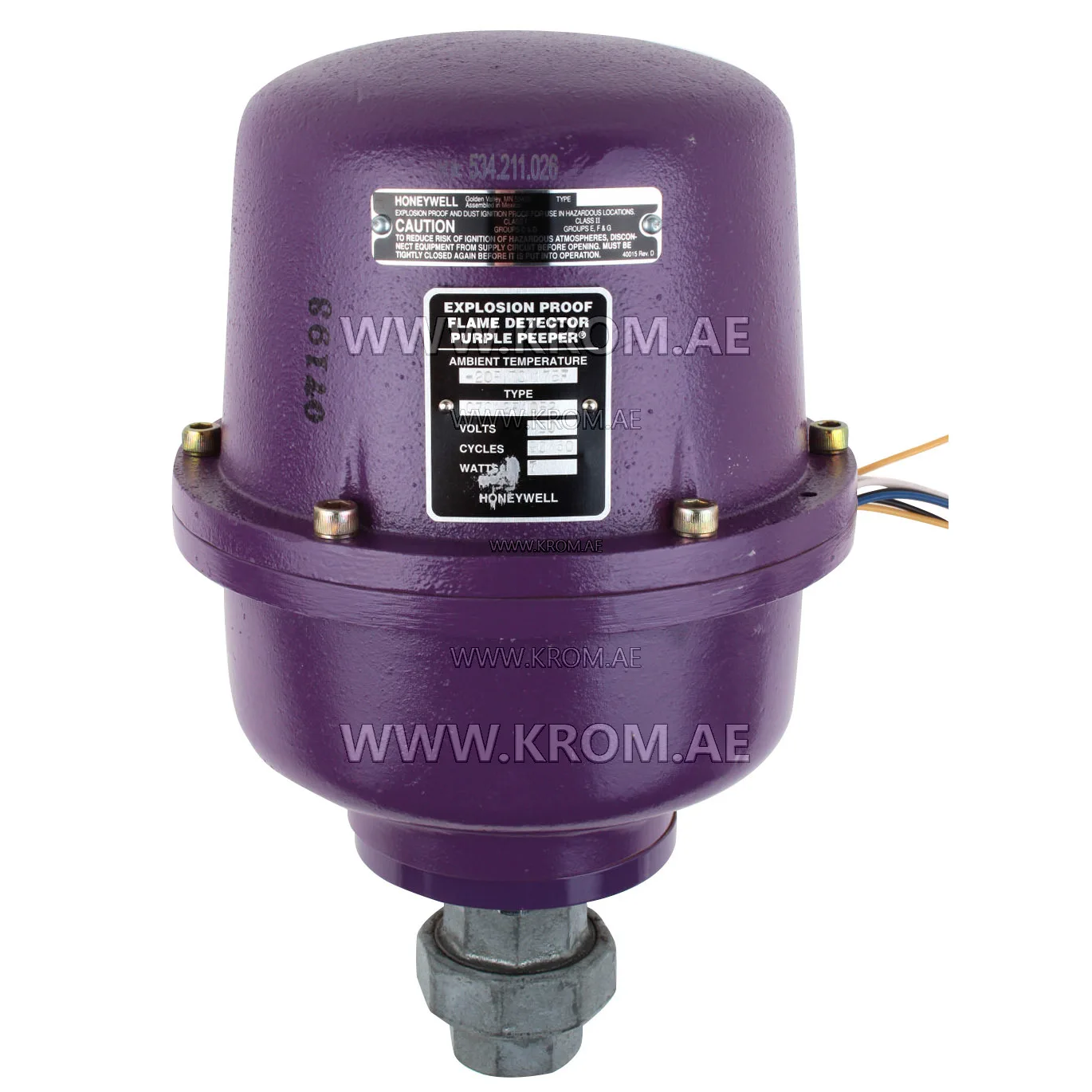

Honeywell C7012F1052 UV detector 120VAC self-check explosionproof

The Resideo C7012F1052/U UV sensors are modern electronic devices designed to detect ultraviolet radiation that occurs during the combustion of various carbon-containing fuels, such as natural gas, liquefied petroleum gas and oil. The sensors are designed to detect ultraviolet radiation that occurs during the burner of various carbon-containing fuels, such as natural gas, liquefied petroleum gas and oil. Features: - The use of semiconductor electronics ensures efficient power consumption and high reliability of operation. - Semiconductor models replace traditional vacuum cathode ray tubes. - Flexible mounting options allow the sensors to be installed at different angles relative to the surface. - Replacement of failed components is carried out at the place of operation. - Fast installation of the equipment is provided thanks to the threaded connections of the conductors with color indication. - Under difficult flame monitoring conditions, two sensors can be connected in parallel to reduce the likelihood of a false alarm. - The hinged support provides convenience when observing the flame. - Models with a nominal value up to -40°C are available. - There is a function for monitoring the cathode ray sensor tube of ultraviolet radiation used with Honeywell flame signal amplifiers (R7247C, R7747C, R7847C). Specifications: - Compatible with R7247C, R7747C and R7847C amplifiers. - Various models operate from 100 to 240 V at a frequency of 50/60 Hz. - Energy consumption - up to 7.0 watts. - Operating temperatures from 40°C to 79°C outside the enclosure. - Storage temperature from 51°C to 79°C. Service: 1. Regular cleaning of the viewing window or lens if necessary. 2. The need to adjust the detection system according to the manufacturer's recommendations.
