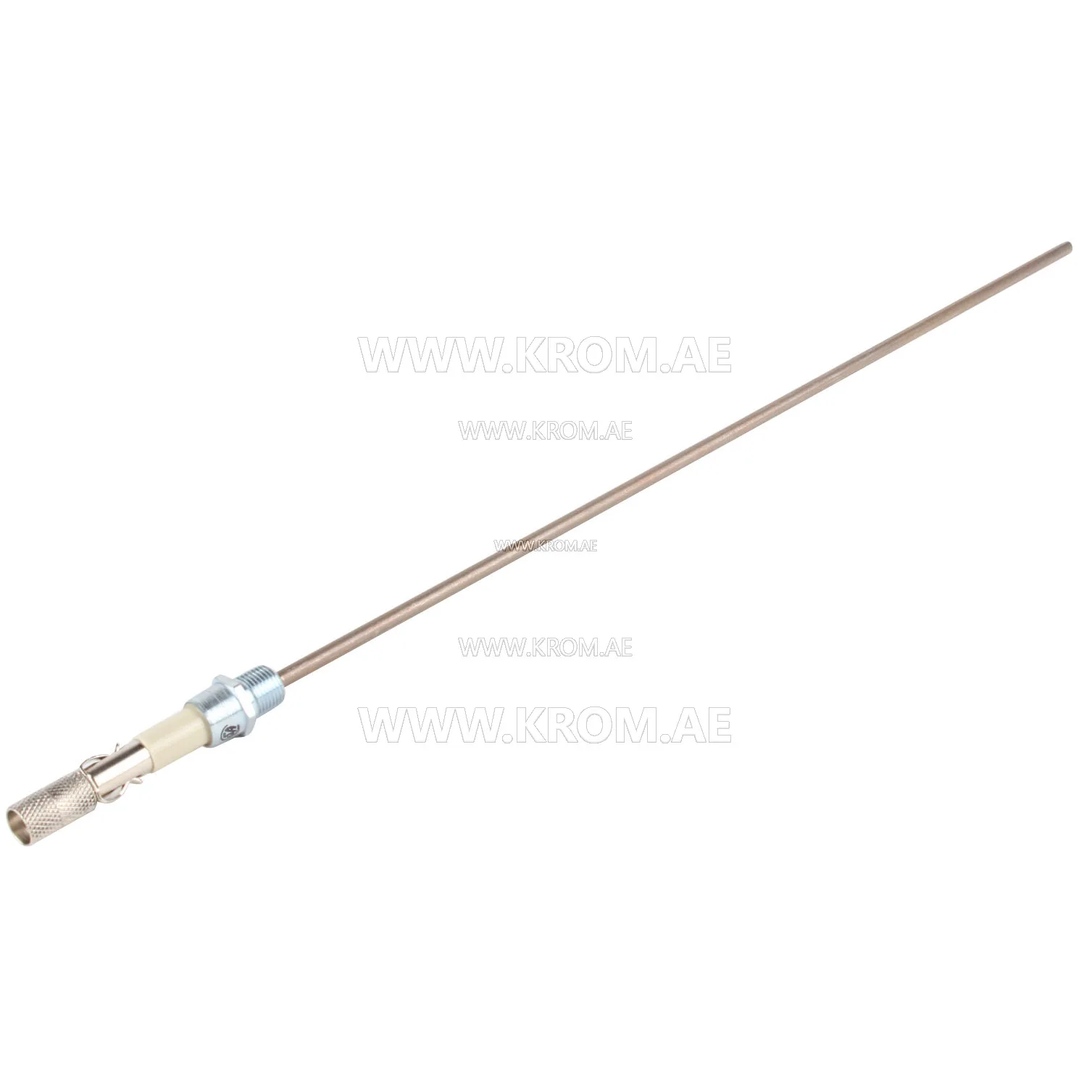

Honeywell C7009A1025 flame rod w/probe 102 mm, 1/8" npt male

The Honeywell C7009A1025 photo cell is a compact device designed to ensure safety when working with gas burners. Its reduced dimensions allow installation in confined spaces, such as gas or oil burners with gas ignition, which are controlled by electronic flame protection systems. The main characteristics of the Resideo C7009A1025U UV sensor include compatibility with protection systems using the flame detection method through a rectifier. The Honeywell C7009A1025B flame detector is a flame extinguishing rod with an external thread (1/8-27 NPT) for an easy and affordable electrical connection. During installation, the following recommendations should be taken into account: 1. Selection of an installation location that provides control over a safe control flame capable of quickly starting the main flame. 2. Placing the sensor so that it does not block the fire doors. 3. Preventing drafts from affecting the control flame. 4. Preferred vertical or inclined placement of the rod to avoid deflection at high temperatures. 5. Additional support for rods larger than 12 inches if they are mounted at an upward angle. 6. Ensuring that the rod is sufficiently removed from the oil flame when used on an oil burner to avoid oil splashes. 7. Control of the flame of a horizontal or inclined flame extinguisher from the side to avoid false signals about the presence of a sufficient control flame.
