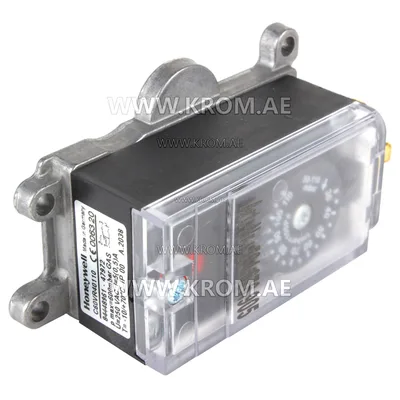

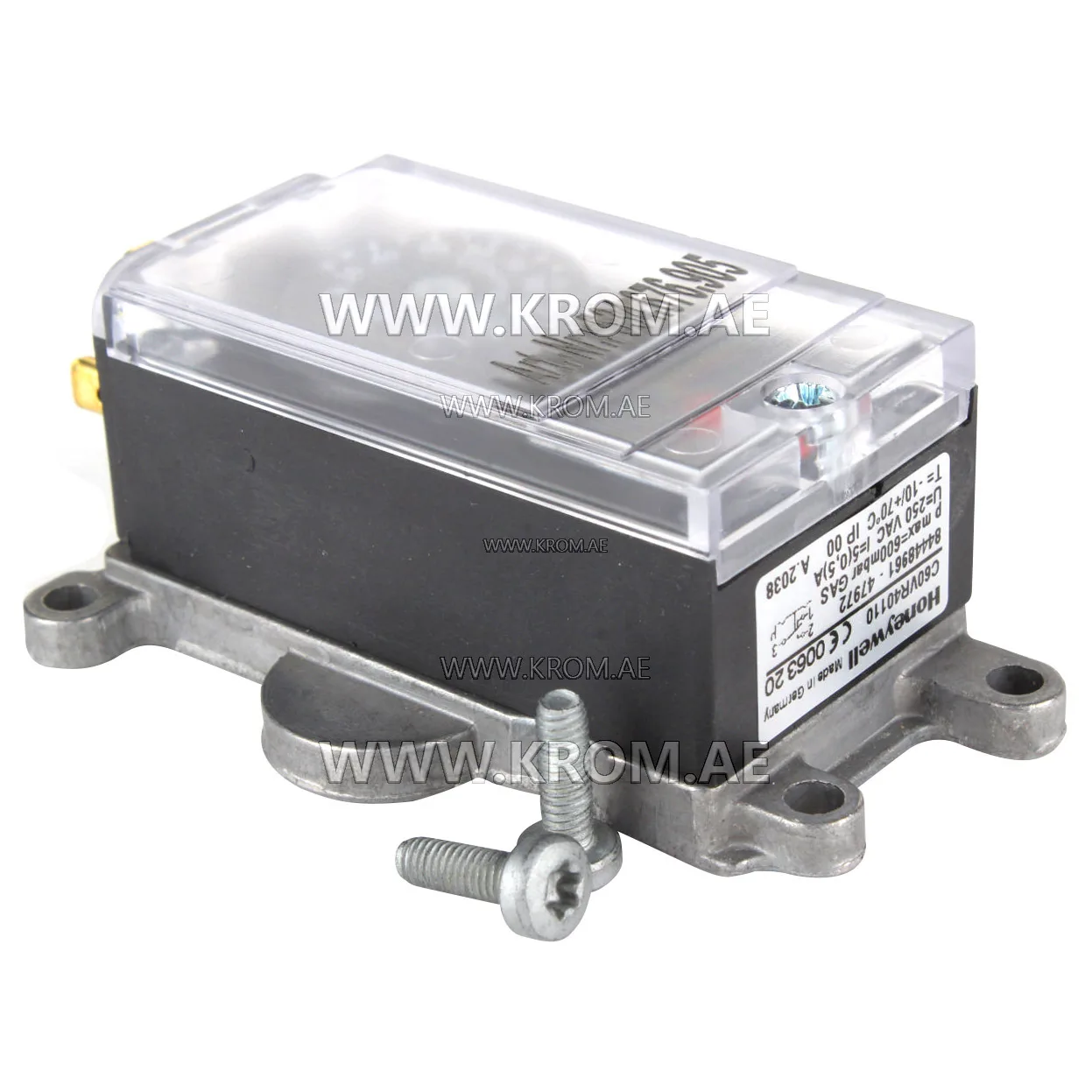

Honeywell C60VR40110 gas pressure switches for flanged

Honeywell C60VR40110 pressure switch is mounted on VQ400 double valves and VRB00/VR400/V4730 combination gas valves. C60VR40110 has an adjustable set point and performs the function of monitoring minimum gas pressure in the safe start interlock circuit. Honeywell C60VR40110 is designed for direct mounting on the gas valve body using two mounting screws and a sealing ring. Electrical connection: DIN plug. Protection class: IP00 (IP54 with DIN plug installed). Pressure type: gauge pressure, relative. Connection: Flange, direct mounting on valve body. Housing material: Aluminum. Cover: PBT reinforced with fiberglass. Ambient temperature: -10...70°C. Switch/load: Switching function: 1x SPDT. Certifications: CE (EN 1854). Max. pressure: 2 bar.
