Honeywell C6097A4210B gas pressure switch 2.5-50mbar

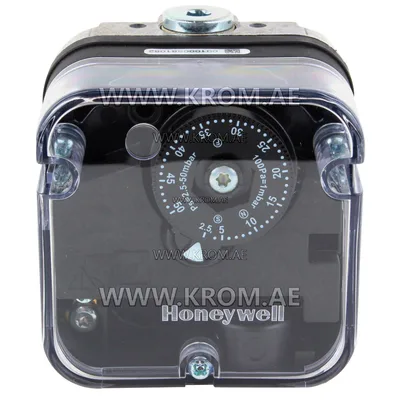

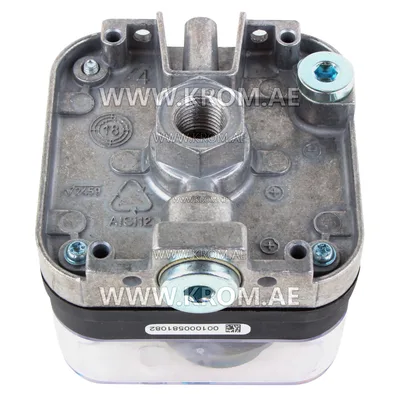

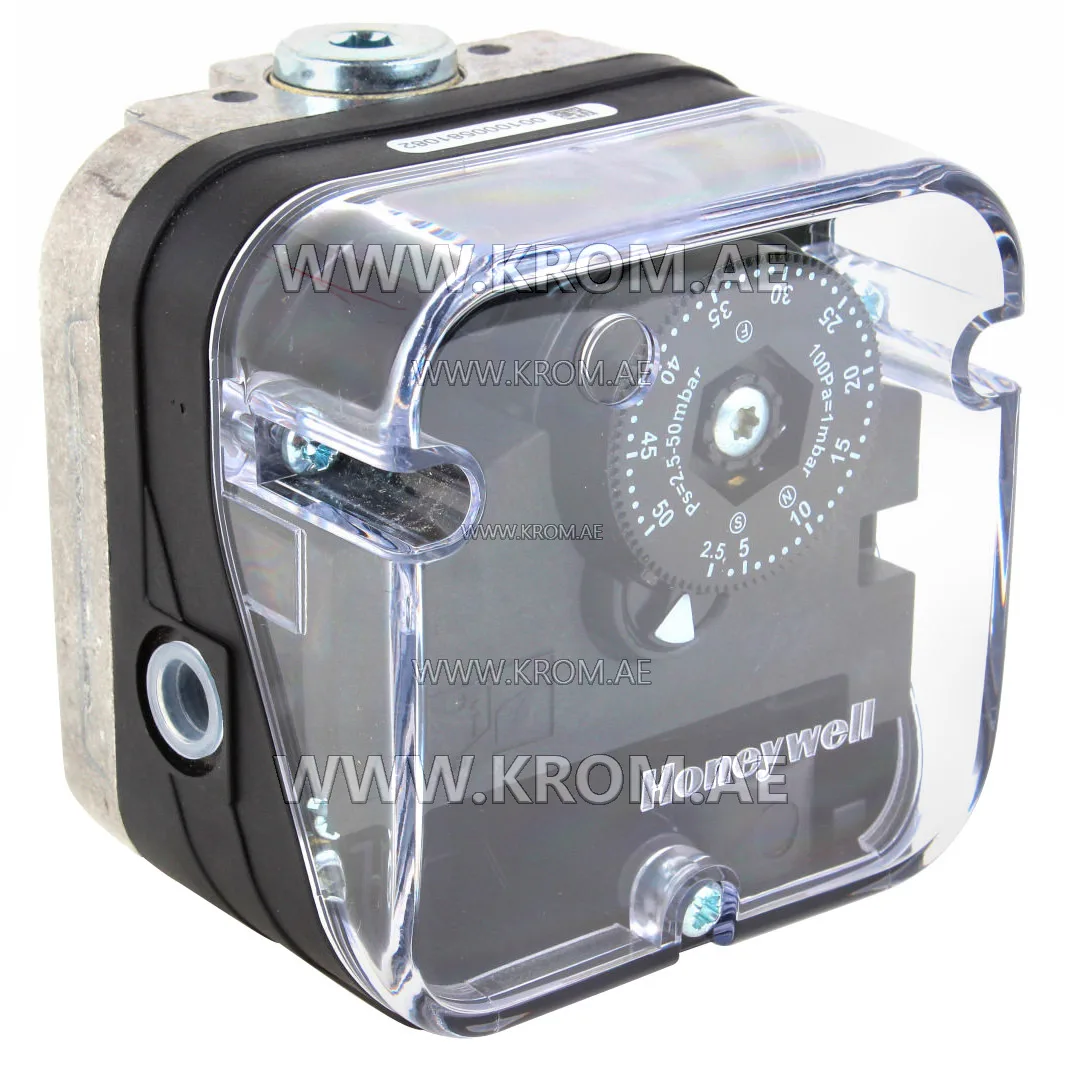

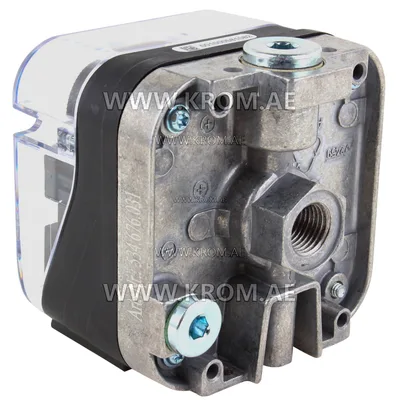

Honeywell C6097A4210B Gas Pressure Switch High-precision minimum/maximum gas pressure control (range 2.5–50 mbar) for gas burners and boilers. The Honeywell C6097A4210B gas pressure switch is a precision pneumatic switch (gas pressostat) from the professional C6097A series. The device is designed for continuous monitoring of natural gas, LPG (gaseous phase), air or non-combustible gases in burner and boiler control systems. Model C6097A4210B has a setting range of 2.5–50 mbar and switches when pressure drops below the set threshold. This makes it an ideal choice for minimum gas pressure control in medium and high power gas burners. If your burner gives a low gas pressure error, does not start, or shuts down unexpectedly, the likely cause is a faulty or incorrectly adjusted switch. Technical specifications: Parameter Value; Part numbers C6097A4210B, 84449022, 534.676.031; Manufacturer Honeywell (Germany); Device type Gas pressostat (Pressure switch), series C6097A; Switching On falling pressure (NO-COM opens when pressure drops); Pressure setting range 2.5 – 50 mbar (0.25 – 5 kPa / 1 – 20 inches w.c.); Setting accuracy ±15% of scale; Average switching differential 0.8 – 1.5 mbar; Maximum inlet pressure 500 mbar (50 kPa); Contact type SPDT (single-pole double-throw); Switching capacity 0.05 – 5 A, 24 – 250 V AC; Medium temperature -20°C to +80°C; Storage temperature -20°C to +40°C; Enclosure protection class IP65 (dust-tight, water jets); System connection type Thread Rp 1/4" (ISO 7-1) or G 1/4"; Cable entry M16 x 1.5, for cable Ø 4–10 mm; Housing material (lower part) AlSi 12 (aluminum alloy); Housing material (upper
