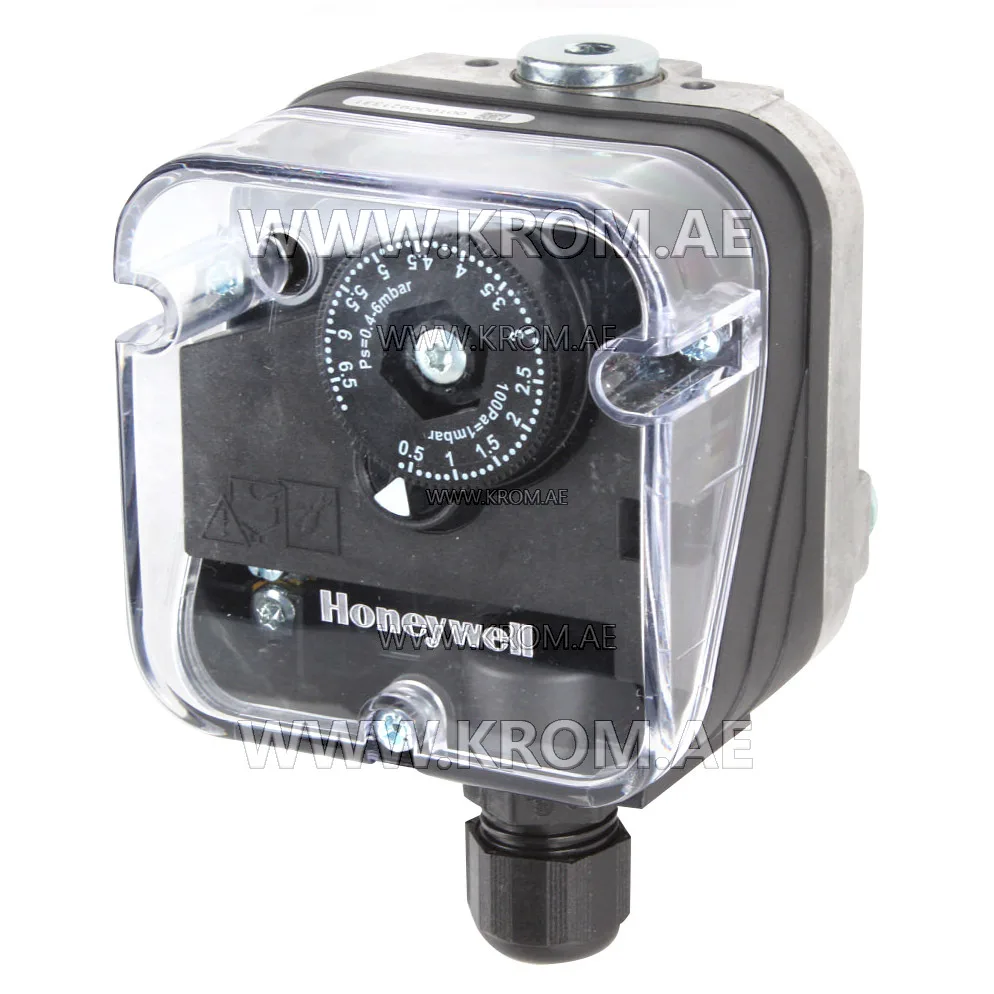

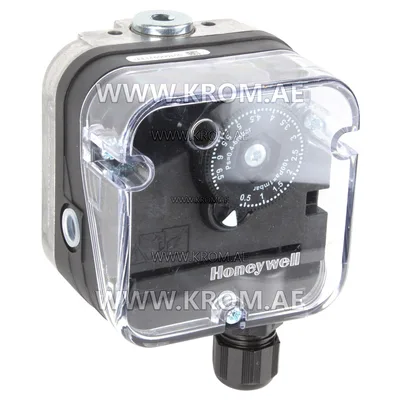

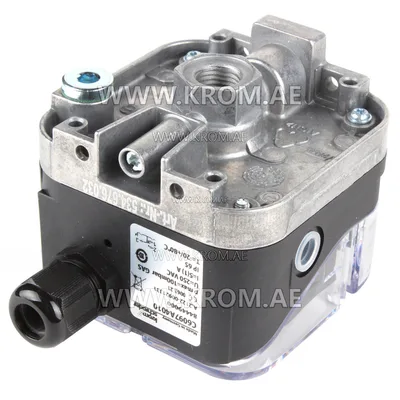

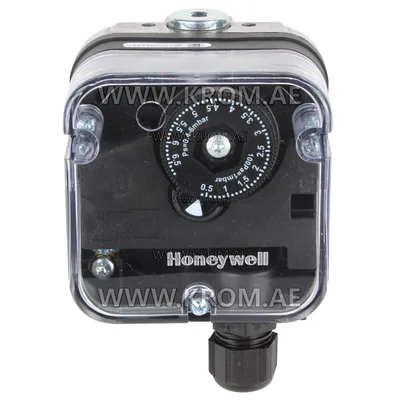

Honeywell C6097A4010 gas pressure switch 0.4-6 mbar

Honeywell C6097A4010 Gas/Air Pressure Switch (range 0.4–6 mbar) High-precision ultra-low pressure control for gas burners, ventilation and filtration. The Honeywell C6097A4010 pressure switch is a precision pneumatic switch from the professional C6097A series. The device is designed for continuous monitoring of ultra-low pressure of natural gas, LPG (gaseous phase), air, flue gases or biogas in burner, boiler and ventilation equipment control systems. Model C6097A4010 has a setting range of 0.4–6 mbar and switches when pressure drops below the set threshold. This makes it an ideal choice for minimum gas pressure control in low-pressure burners, as well as for monitoring fan operation and air filter clogging. If your burner does not start, gives a low air/gas pressure error, or shuts down unexpectedly, the likely cause is a faulty or incorrectly adjusted switch. Technical specifications: Parameter Value; Part numbers C6097A4010, 84449000, 534.676.032; Manufacturer Honeywell (Germany); Device type Gas pressostat (Pressure switch), series C6097A; Switching On falling pressure (NO-COM opens when pressure drops); Pressure setting range 0.4 – 6 mbar (40 – 600 Pa); Maximum inlet pressure (withstand) 100 mbar (10 kPa); Setting accuracy ±15% of scale; Average switching differential 0.2 – 0.3 mbar; Contact type SPDT (single-pole double-throw); Switching capacity 0.05 – 5 A, 24 – 250 V AC; Medium temperature -20°C to +80°C; Storage temperature -20°C to +40°C; Enclosure protection class IP65 (dust-tight, protection against water jets); System connection type Thread Rp 1/4" (ISO 7-1); Cable entry M16 x 1.5 (for cable
