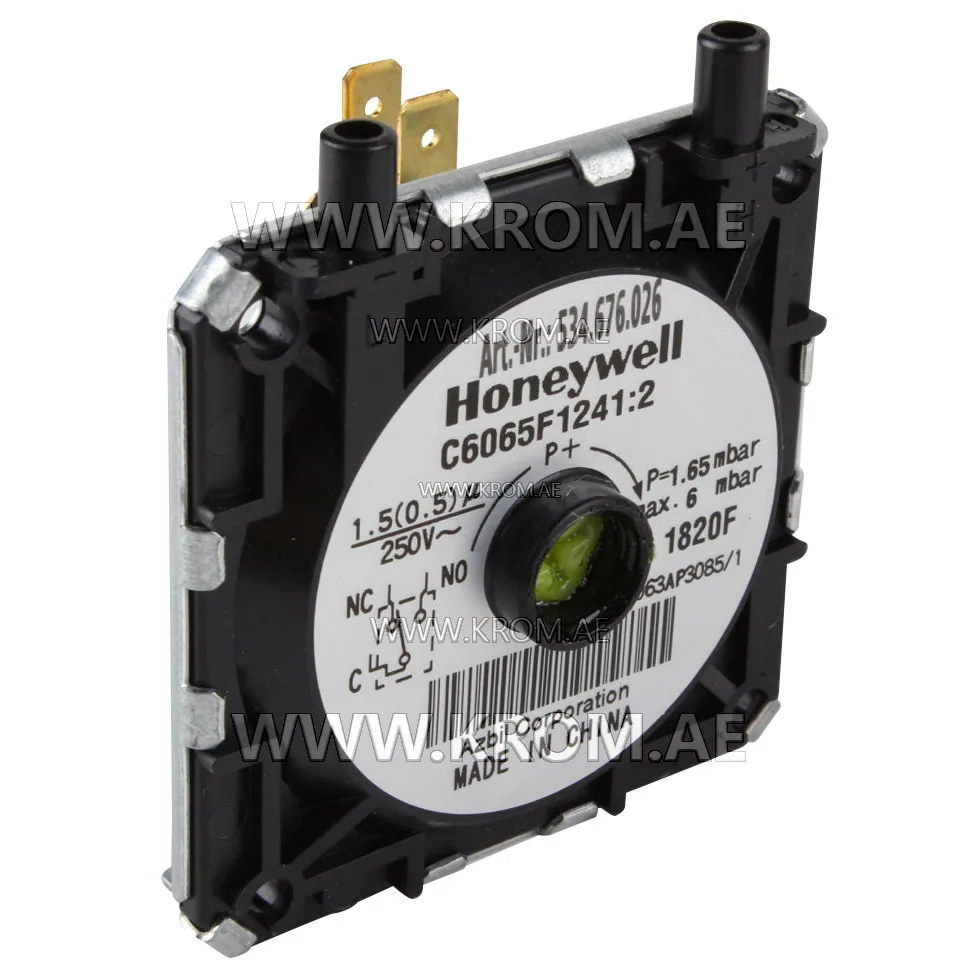

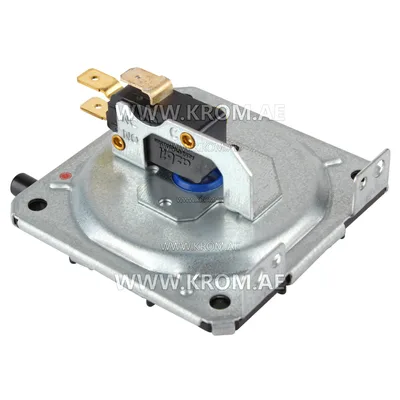

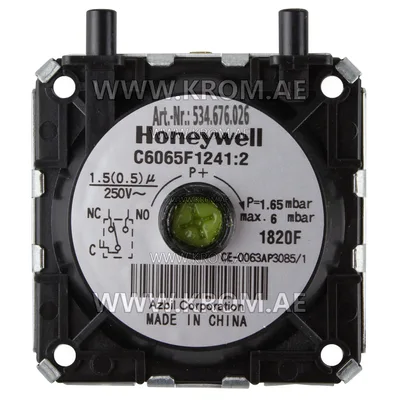

Honeywell C6065F1241U pressure switch

Honeywell C6065F1241U air pressure switch. Adjustable pressure switch 1.65–6 mbar for air and flue gas control. Honeywell C6065F1241U air pressure switch is a highly reliable differential pressure switch of the C6065F series, designed for air and flue gas control in forced draft systems. The device is used in gas and oil burners to confirm the presence of the required air pressure before start-up and during operation, providing a basic level of equipment safety. If your burner fails to start, shuts down during the pre-purge stage, or the fan runs but ignition does not occur, the cause may be a failure or misadjustment of this relay. Technical specifications: Parameter Value. Part numbers: C6065F1241U, 534.676.026. Manufacturer: Honeywell (USA/Europe). Type: Air pressure switch (differential). Control medium: Air, flue gases. Pressure adjustment range: 1.65 – 6 mbar (165 – 600 Pa). Maximum working pressure: 6 mbar. Application: Forced draft burners. Installation: Can be used in systems with positive or negative pressure. Materials: Impact-resistant plastic housing. Standards: Approved for use with gas burners and appliances. Key advantages: Adjustable pressure range 1.65–6 mbar: The ability to precisely set the switching threshold allows adaptation to different burner types and operating modes, ensuring optimal safety system sensitivity. Air and flue gas control: Versatility allows the relay to be used both for fresh air supply control (nozzles, fans) and for exhaust gas pressure monitoring. Robust construction: Housing made
