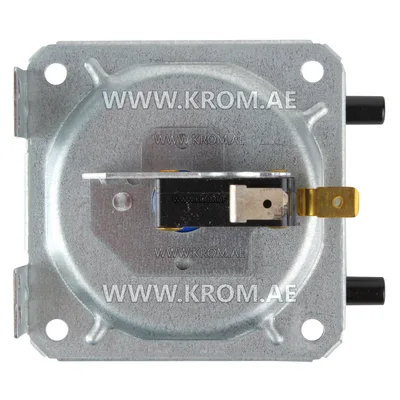

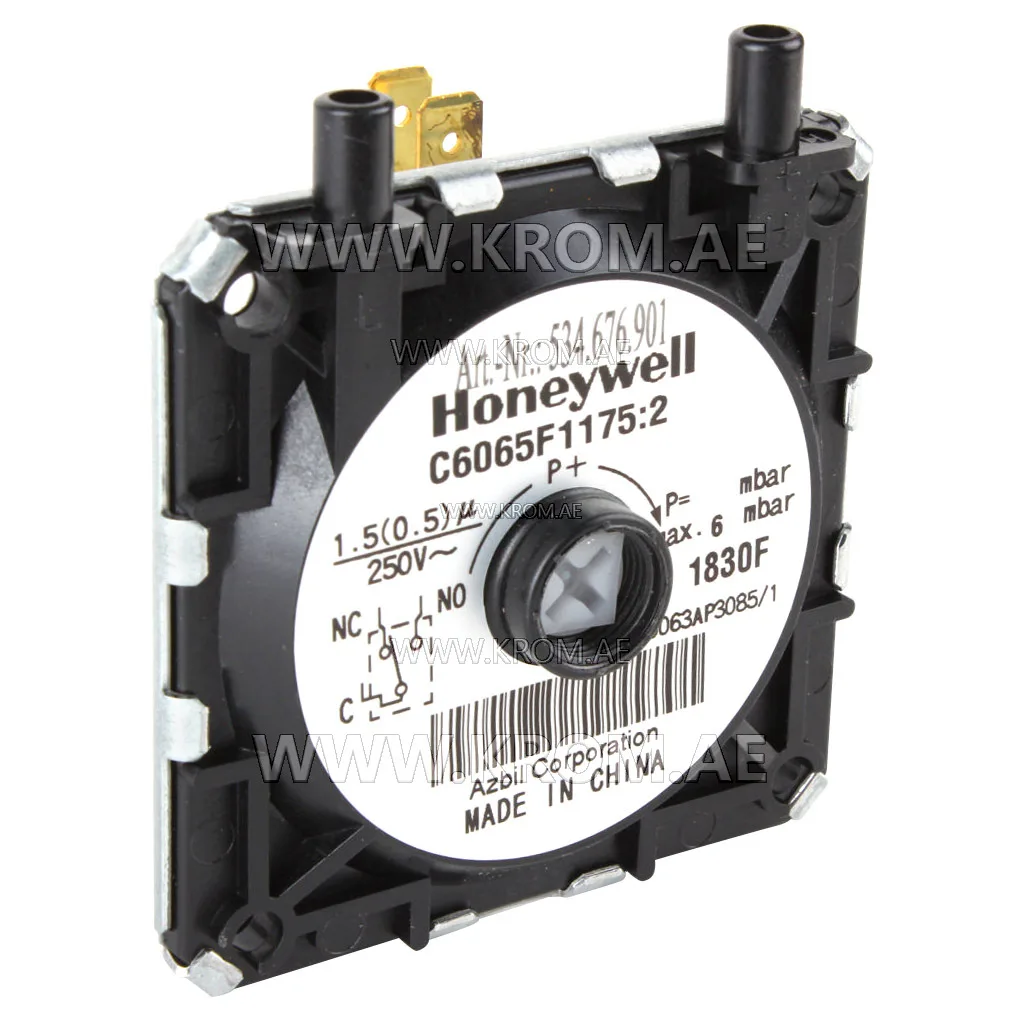

Honeywell C6065F1175B pressure switch

Honeywell Pressure Switch C6065F1175 is designed for automation and safety of burner systems. It is ideal for forced-draft gas burners and locks out when pressure changes above the set threshold. Model C6065F features high accuracy and can be used with high-efficiency boilers. Features of Honeywell pressure switch: Suitable for positive and negative pressure with differentials up to 400 Pa. Version with differential up to 900 Pa available on request. Operates at temperatures up to 90 °C. Threshold settings are factory-set with standard accuracy. Models with user adjustment available. Works with both air and flue gases. Diaphragm responds to pressure from 25 Pa. Simple connection via terminals (6.36/4.8 mm). Mounts on a 5 mm diameter tube (rubber or plastic). Adjustment range: 1 to 2 mbar, maximum pressure: 6 mbar at 250 V. Honeywell Pressure Switch C6065F1175 is a reliable and functional device for ensuring safety and automation of burner systems. Using it ensures efficient burner operation and minimal risk of emergency situations.
