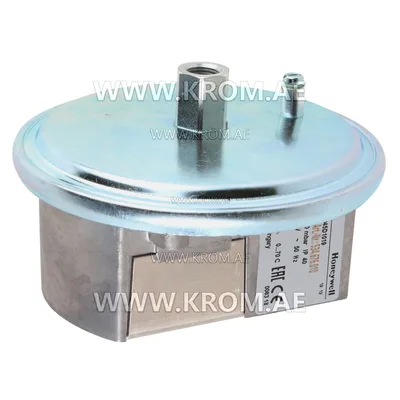

Honeywell C6045D1019 pressostat 5-50mbar

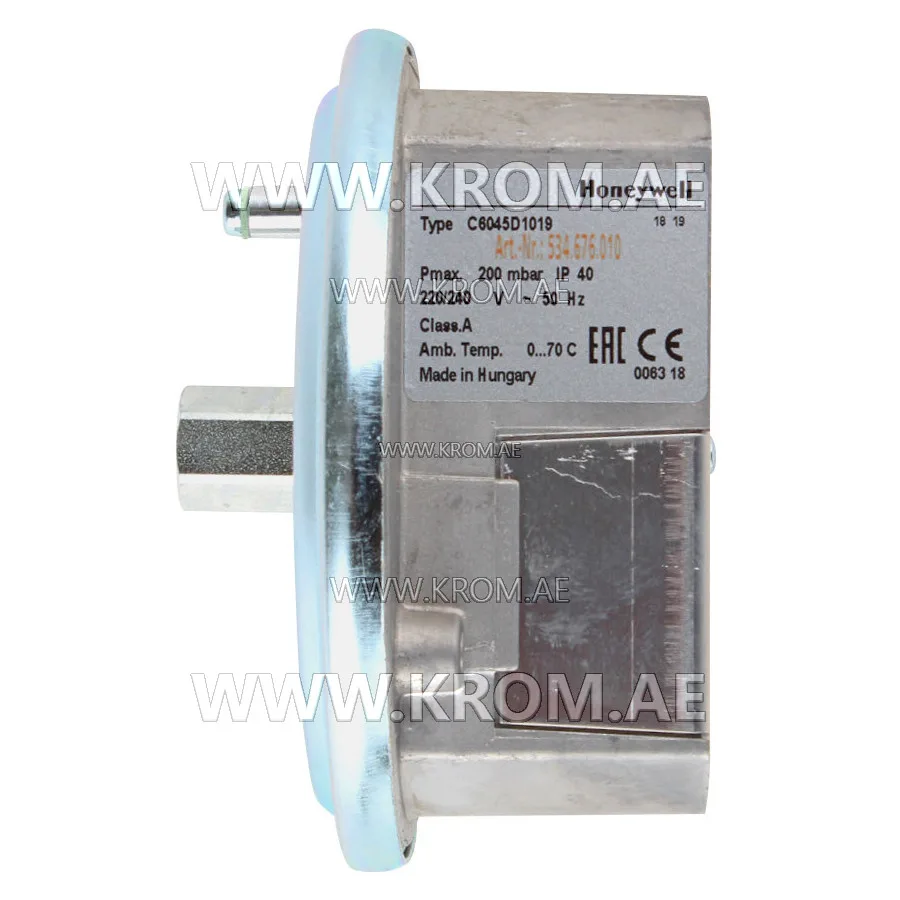

Honeywell C6045D 1019 gas and air pressure relay is designed to monitor pressure of air and non-aggressive (fuel) gases. It is made of a durable cast aluminum housing, which gives it reliability and durability. The main feature of this relay is its universal installation - it can be installed both horizontally and vertically. This provides flexibility and convenience during installation in various conditions. Some important characteristics of the relay include pressure type (differential pressure, relative pressure), pressure connection (G1/4" for positive pressure, G1/8" for negative pressure), electrical connector (PG13.5), operating temperature (0 to 70 °C), and switch/power function (SPDT Microswitch with rated voltage 250 V AC). The product marking contains information about the manufacturer (Honeywell), type (C 6045D 1019), certification (CE-0063AR3085/2), maximum pressure (200 mbar), range (1 to 10 mbar), protection rating (IP40), supply voltage (220/240 V AC, 50 Hz), operating temperature (0 to 70 °C).
