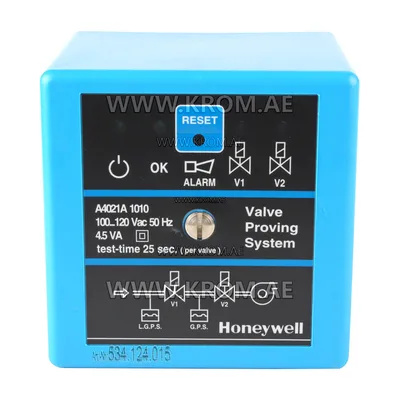

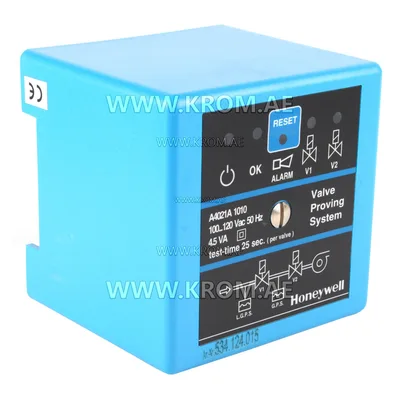

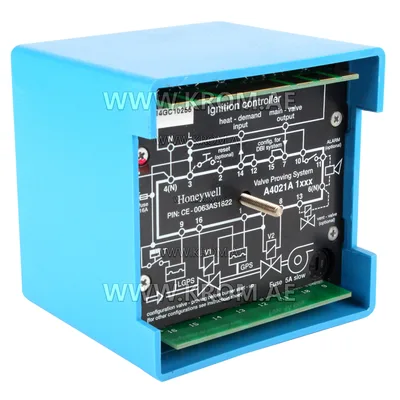

Honeywell A4021A1010 valve proofing system 115V 50Hz without base

The Honeywell A4021A1010 is a valve proofing system, a type of industrial burner control that manages the ignition and safety sequence for burners, typically in larger commercial or industrial heating plant. This particular unit is rated for 115V 50Hz supply and is supplied without the base – the base is ordered separately and matches the plug pattern of the control. A valve proofing system performs the same core tasks as a standard burner control: it coordinates pre‑purge, ignition, fuel admission and flame proving, but with the addition of a valve proofing step that checks that the gas or oil valves are closed before the start sequence begins. This function is often required on burners with multiple safety valves or where regulations demand a tightness check prior to each start. Parts of this type read signals from pressure switches, a flame detector and temperature sensors, and in turn drive the ignition transformer, the fuel valve(s), the fan and sometimes a damper actuator. Selection is based on the exact series and type designation; supply voltage; the required safety time and pre‑purge time; the flame detection method (ionisation, UV or IR); and the base or plug pattern. Within the same brand, controls from different series are generally not interchangeable, and using a model with a different safety time creates a hazardous condition. When replacing a valve proofing system, verify that the new unit’s settings match the appliance specifications and that the wiring pattern and base are compatible with the existing installation. The “without base” version allows the engineer to reuse a base already in place, but the base must be of the correct type for the control.
