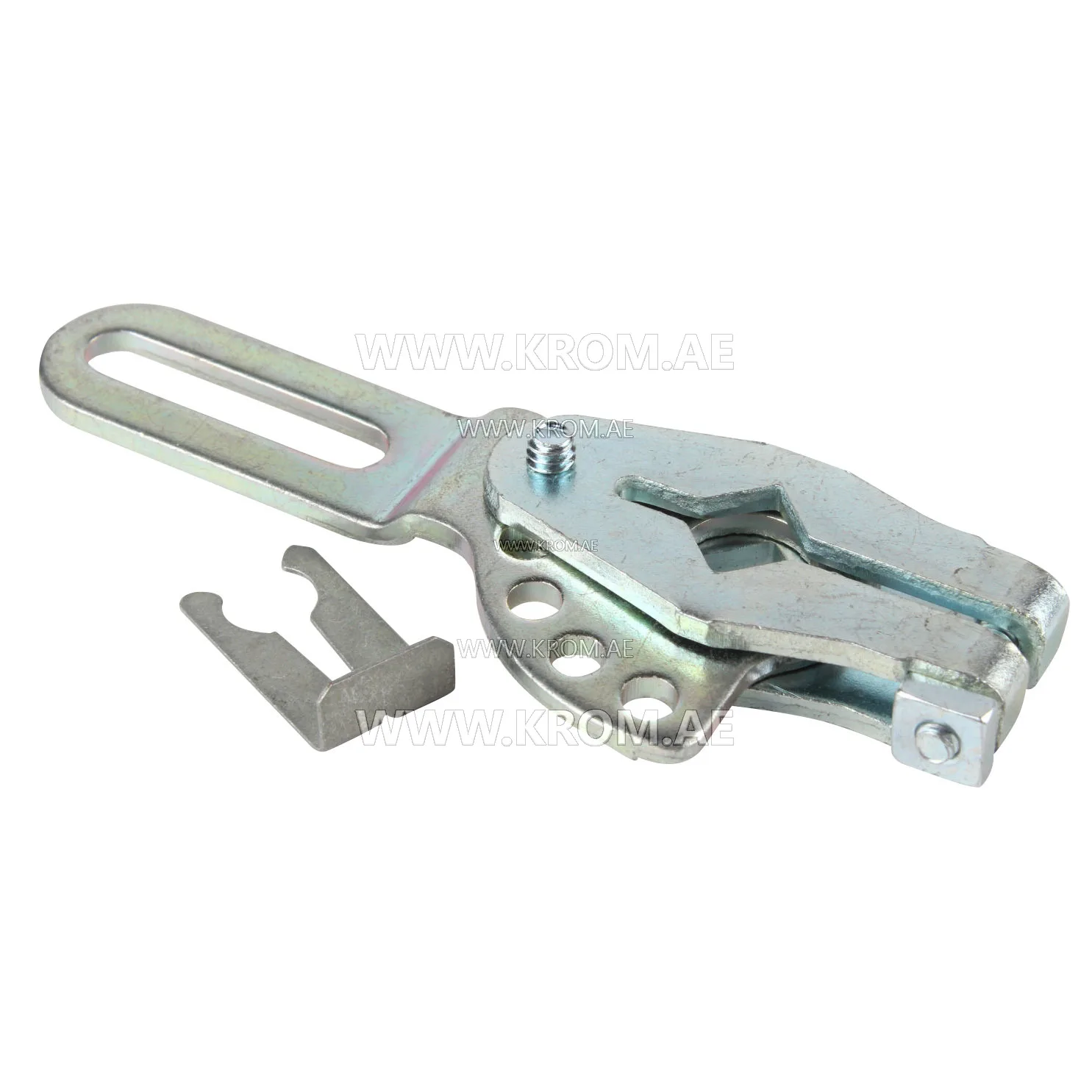

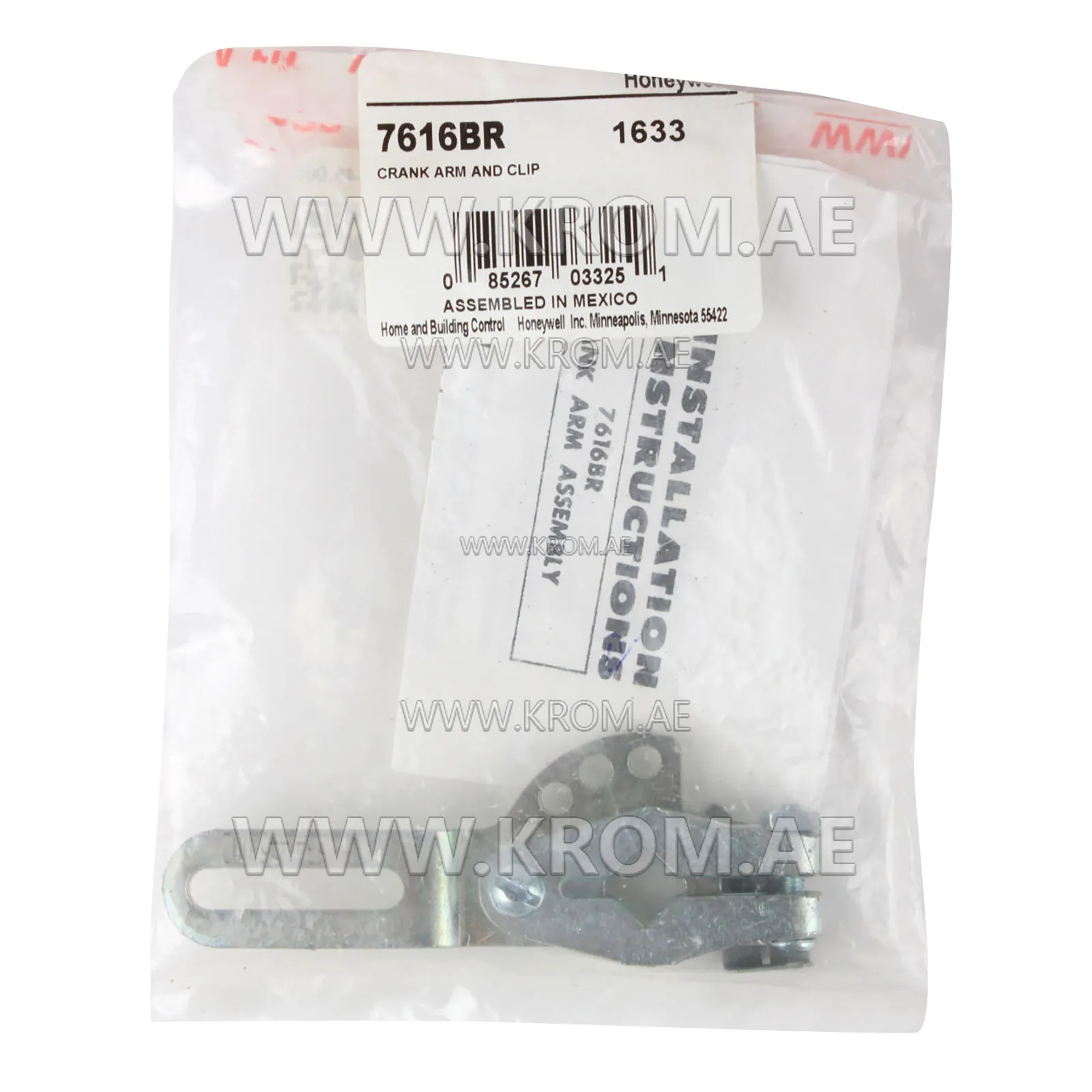

Honeywell 7616BR lever

This item is a lever, catalogue article 534.445.002, supplied under the Honeywell brand in the actuator components category. Parts of this type are mechanical interface elements used to connect an actuator’s output shaft to the spindle of an air damper or a mixing valve. The lever transmits the rotational movement from the actuator to the controlled component, converting the actuator’s rotation into the angular displacement that opens, closes, or modulates the damper or valve. Such levers are typically clamped or keyed to the actuator shaft and have a linkage or fork that engages with the damper or valve stem. When selecting a replacement lever, the key parameters are the shaft bore diameter and shape (round with flat, square, or splined), the lever arm length, the hole or slot pattern for the linkage pin, and the overall angle of rotation the lever must accommodate. It is important to match the lever to both the actuator output and the damper/valve spindle geometry; a mismatch can cause binding, insufficient travel, or premature wear. During replacement, inspect the lever for deformation, cracks, or worn holes, and verify that the clamping screw or fastener is intact. Also check the mating shaft for corrosion or damage, as a seized actuator spindle can break the lever or strip the connection. If the lever is used on a mixing valve that has been stationary for a season, operate the valve manually first to free the stem before fitting the new lever, to avoid overload.
