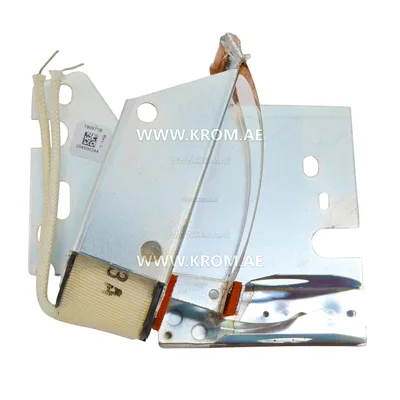

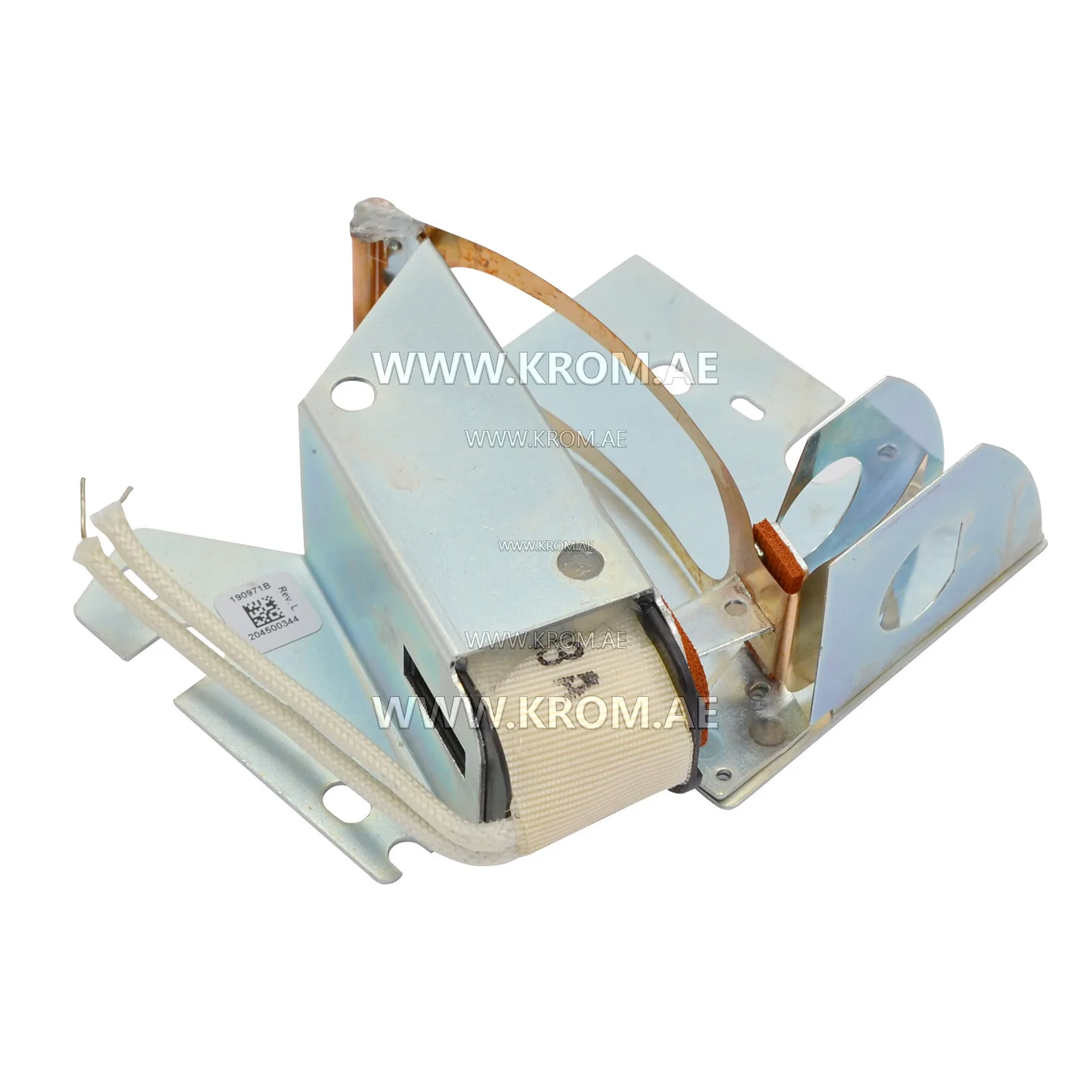

Honeywell 190971B/U coil and shutter assy for C70xx

This article is a coil and shutter assembly intended for use with Honeywell C70xx series burner controls. Parts of this type are electromechanical actuators that translate an electrical signal from the control into a mechanical movement of a shutter, typically to regulate the flow of combustion air or gas. The coil, when energised, creates a magnetic field that moves a plunger or armature linked to the shutter plate, either opening or closing the passage or modulating its cross-section. Such assemblies are commonly found in modulating burners where precise air or fuel flow control is required, working in conjunction with the fan speed or valve position feedback. When selecting a replacement coil and shutter assembly of this class, the primary parameters are the operating voltage of the coil, the mechanical stroke length, and the mounting dimensions. The electrical connector type and cable length also need to match the existing wiring. Physical fit with the actuator housing and linkage must be verified; any binding or misalignment will cause erratic control or lockout. During installation, check that the shutter moves freely and that the sealing surface is clean and undamaged. Typical failure modes include coil winding burnout due to sustained overvoltage or moisture ingress, a stuck shutter from debris or corrosion, and wear on the pivot points. Always confirm that the replacement part is specified for the same control series (C70xx) and that the electrical ratings are compatible with the burner control output. No further specifications for this particular article are provided beyond its name and manufacturer codes.
