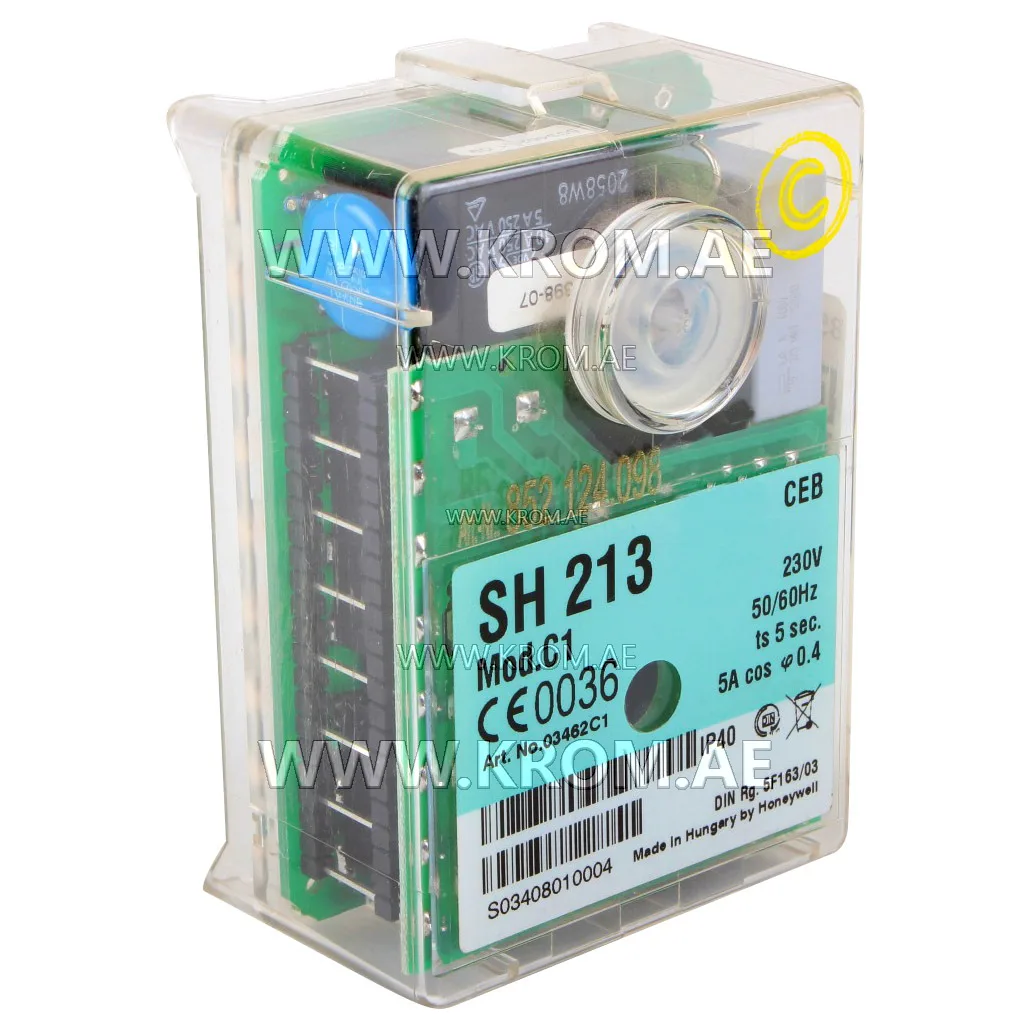

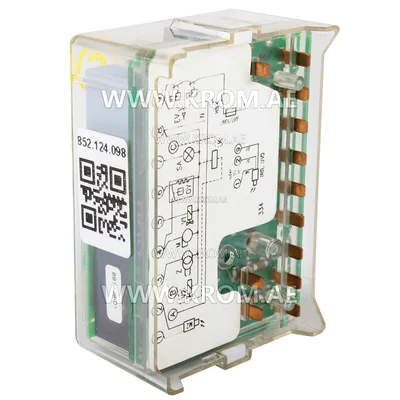

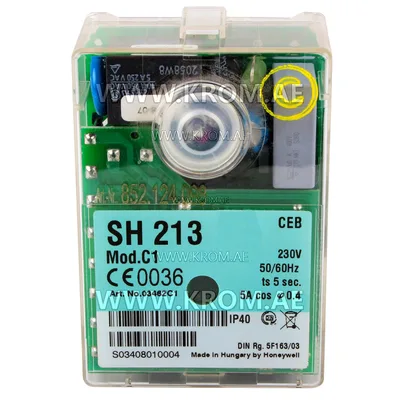

Honeywell SH213 mod.C1 03462C1 control box

Honeywell SH213 mod.C1 03462C1 control unit for liquid-fuel single-stage supercharged burners for pre-heating operation, with or without heating of liquid fuel. Possible flame sensor: MZ 770 S photoresistor IRD 1010 infrared detector UV flame sensor UVD 970 Satronic SH213 mod.C1 automatic gas firing device technical data:  Maximum heating time of the fuel heater ta: 400 s TV1 pre-ventilation time: 22 s The opening signal of the door. during the pre-war. Ventilation TLK: 17 s Air flap closing time tr: 5 s Ambient light control TF: 10s Safety time ts: 5 s Time after ignition tn: 7 s Delay terminal B/C tv2: 13 s Operating voltage: 230 V (-15...+10%) 50/60 Hz (±5%) Input fuse: 10 A high-speed, 6 A inert Power consumption: approximately 12 VA Air pressure switch: 1 working contact 4 A, 230 V Sensitivity: 1.0 µA Minimum required ionization current: 1.5 µA Sensitivity to outside light: 0.4 µA Wire length: < 3 m Weight with base: 190 g Installation position: any Protection: IP 40
