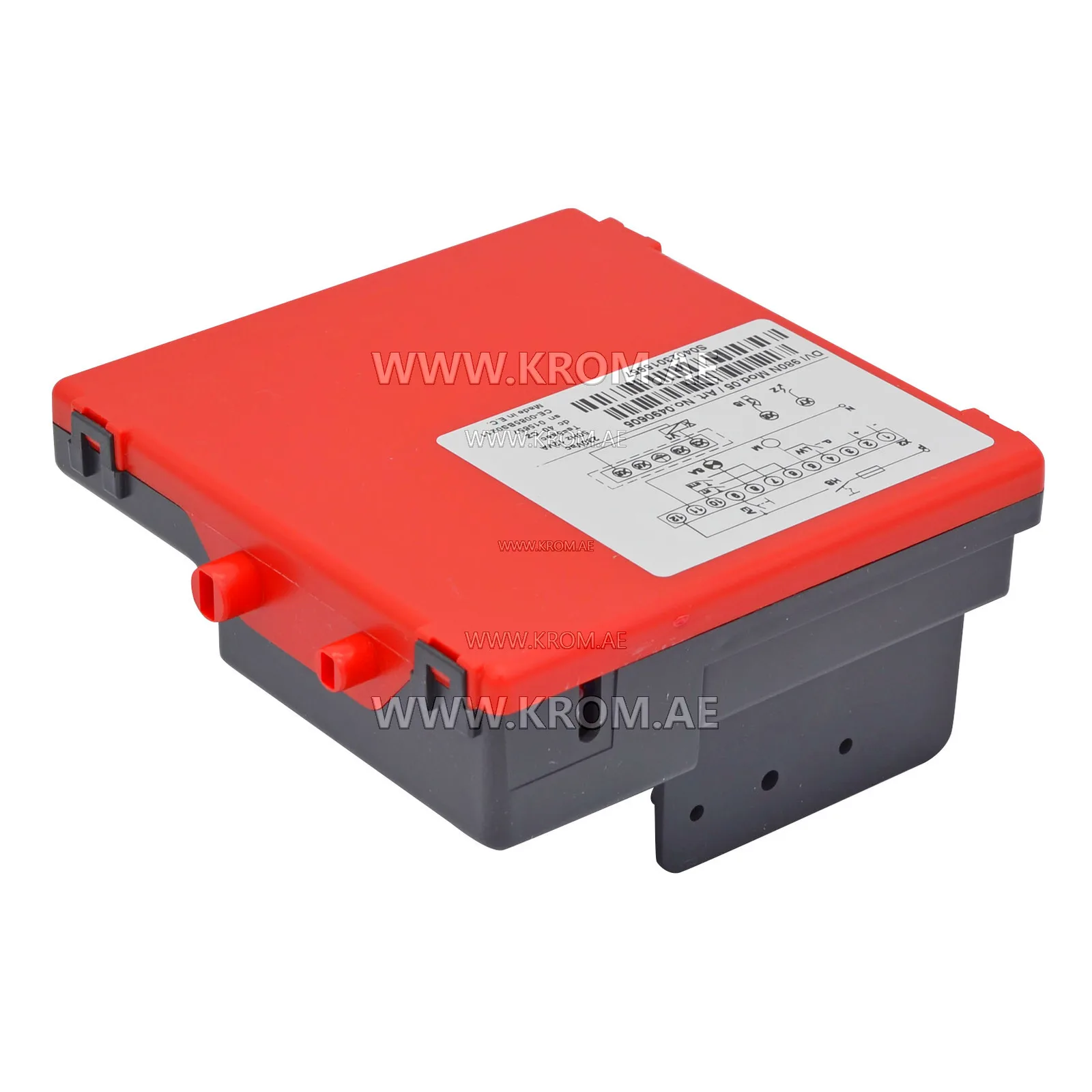

Honeywell DVI980-N mod.05 0490605 control box

Satronic DVI980-N MOD.05 control box for 1-stage forced draught and atmospheric gas burners, with DC valves. Possible flame detectors: Ionisation probe Infrared flicker detector 1020.1 UV flame sensor UVD 971 Satronic DVI980-N MOD.05 automatic gas firing device technical data: Operating voltage 220 / 240 V (-15... +10%) Power consumption: ca. 12 VA Total load: max. 6 A during 0,5 sec Air proving switch: 1 working contact STB Safety temperature delimiter: 1 working contact Ignition frequency: up to 40 Hz Energy ignition spark: 10 µAs Ignition voltage: 20 kV Sensitivity (operation): 1 µA Min. required ion. current: 1.5 µA Sensitivity for stray light: 0.4µA Flame signal output: Optocoupler max 70V DC/100mA Stray capacity: Probe - earth less than 1000 pF Cable length: < 3 m Flame detectors IRD 1020.1: end-on viewing UVD 971: end-on viewing Weight incl. Wiring base: 190 g Mounting position: any Protection class: IP 40
