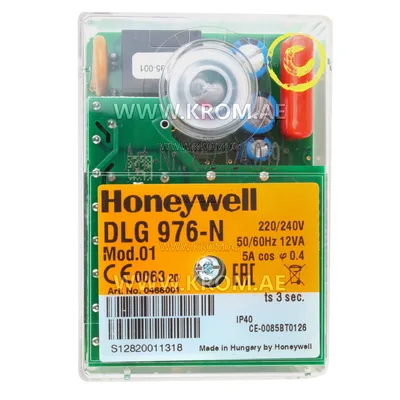

Honeywell DLG976-N mod. 01 0466001 control box

Honeywell DLG976-N mod.01 0466001 gas burner control unit controls and supervises power burner for gas and dual fuel. Satronic DLG976-N mod.01 control unit for 2-stage forced draught and combi oil/gas burners. Resideo DLG976-N mod.01 gas burner control technical data: Operating voltage: 220 / 240 V (-15... +10%) Air proving switch: 1 working contact 4 A, 230V Sensitivity (operation): 1 µA Min. required ion. current: 1.5 µA Sensitivity for stray light: 0.4 µA Cable length: < 3 m Weight incl. wiring base: 190 g Mounting position: any Protection class: IP 40 Approved ambient parameter for control and flame detector max. 95% at 30°C Build-up of ice, penetration of water and condensing water are inadmissible Approvals according to European standards EN 298 and EN 230, as well as all other relevant Directives and standards Classified acc. to EN 298 FTLLXN
