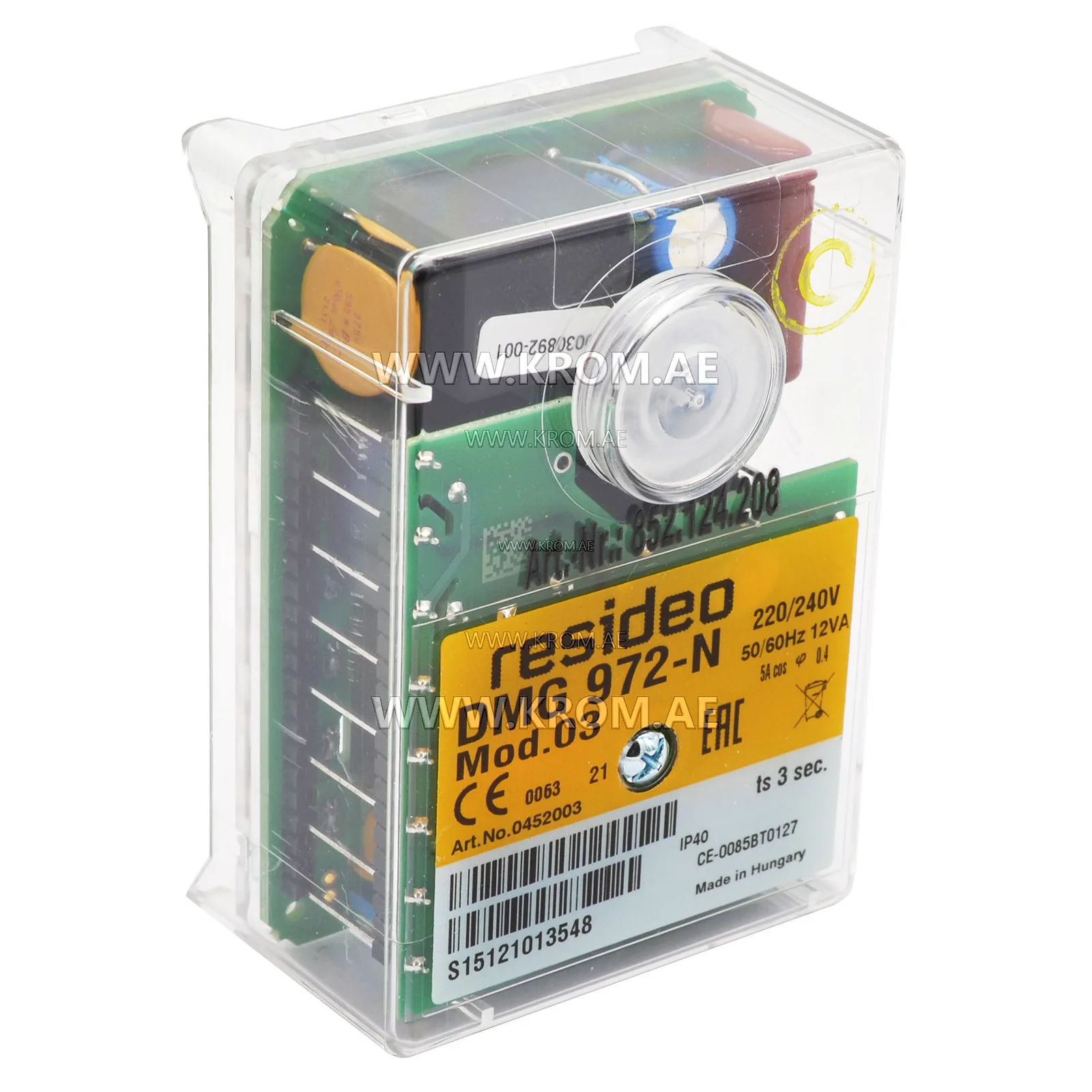

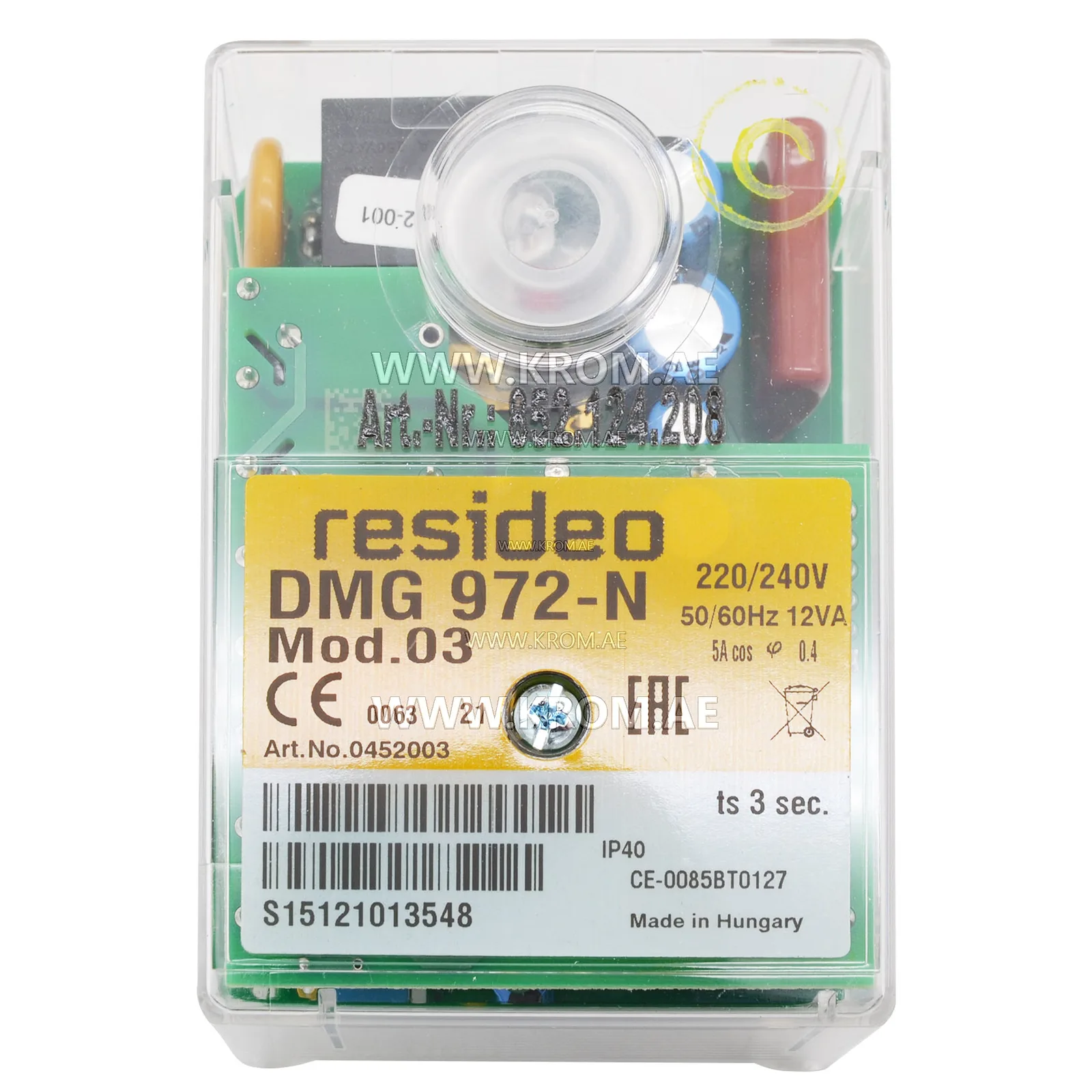

Honeywell DMG972-N mod. 03 0452003 control box

Satronic DMG972-N mod.03 gas burner safety control box controls and supervises power burner for gas and dual fuel. Resideo DMG972-N mod.03 control box technical data: Operating voltage: 220 / 240 V (-15... +10%) Air proving switch: 1 working contact 4 A, 230V Stray light monitoring: 5 sec Sensitivity (operation): 1 μA Min. required ion. current: 1.5 μA Sensitivity for stray light: 0.4μA Cable length: < 3 m Weight incl. Wiring base: 190 g Mounting position: any Protection class: IP 40 Approved ambient parameter for control and flame detector: max. 95% at 30° C Honeywell DMG972-N mod.03 automatic gas firing device designed for maximum safety in case of fluctuations in the voltage supply.
