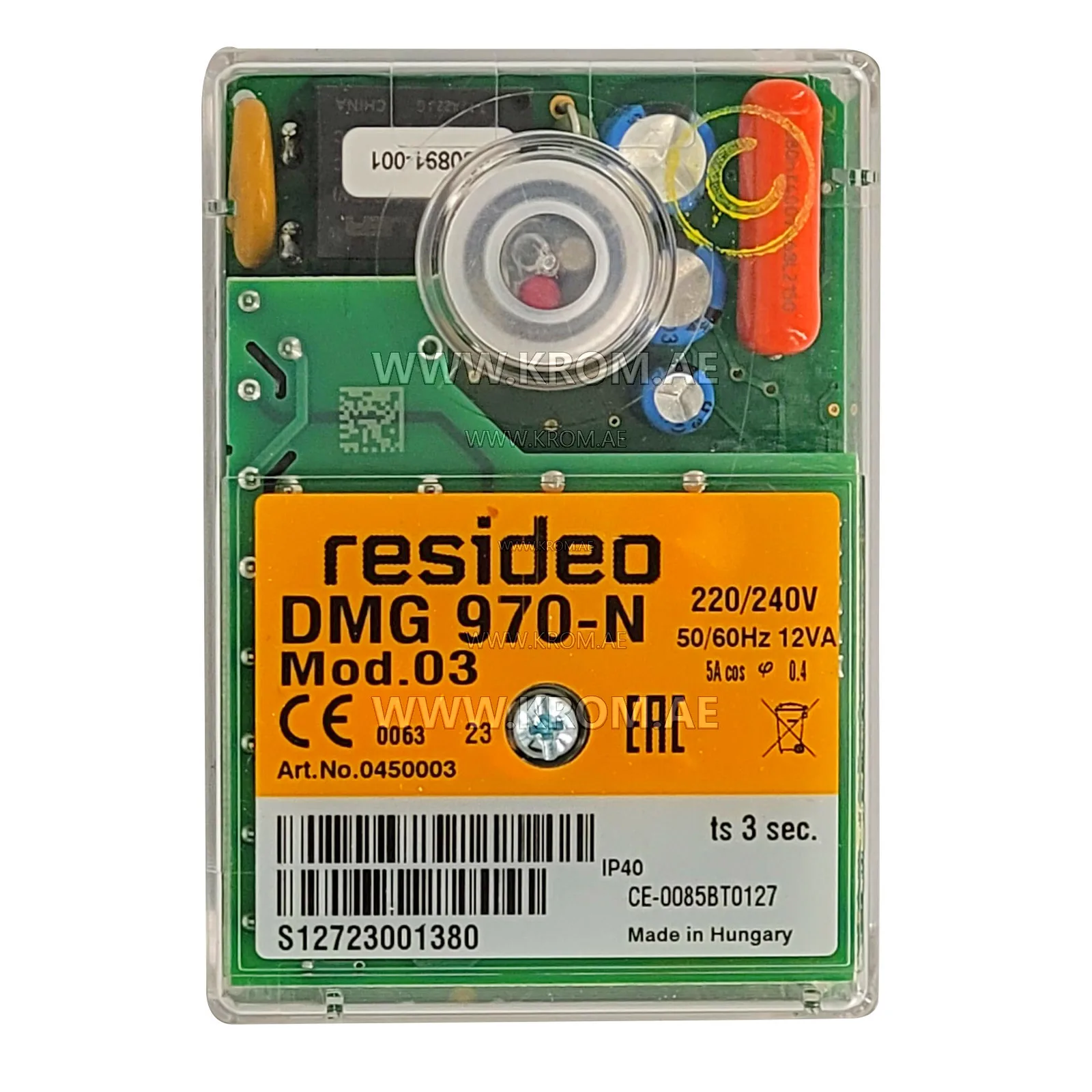

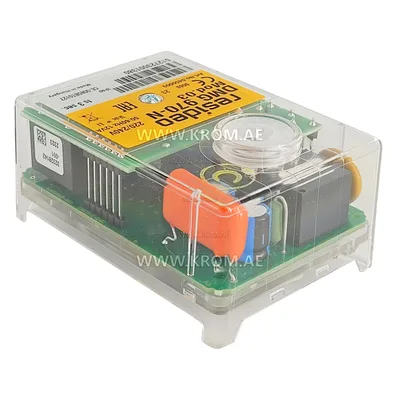

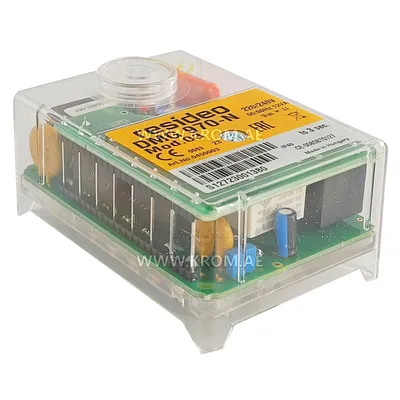

Honeywell DMG970-N mod.03 0450003 control box

Honeywell DMG970-N MOD.03 control unit for 2-stage forced draught and combi oil/gas burners. The use on direct air heaters according DIN 4794 is also possible. Resideo DMG970-N MOD.03 0450003U control box technical data: Operating voltage: 220 / 240 V (-15... +10%) Air proving switch: 1 working contact 4 A, 230V Stray light monitoring: 5 sec Sensitivity (operation): 1 μA Min. required ion. current: 1.5 μA Sensitivity for stray light: 0.4μA Cable length: < 3 m Weight incl. Wiring base: 190 g Mounting position: any Protection class: IP 40 Approved ambient parameter for control and flame detector: max. 95% at 30° C
