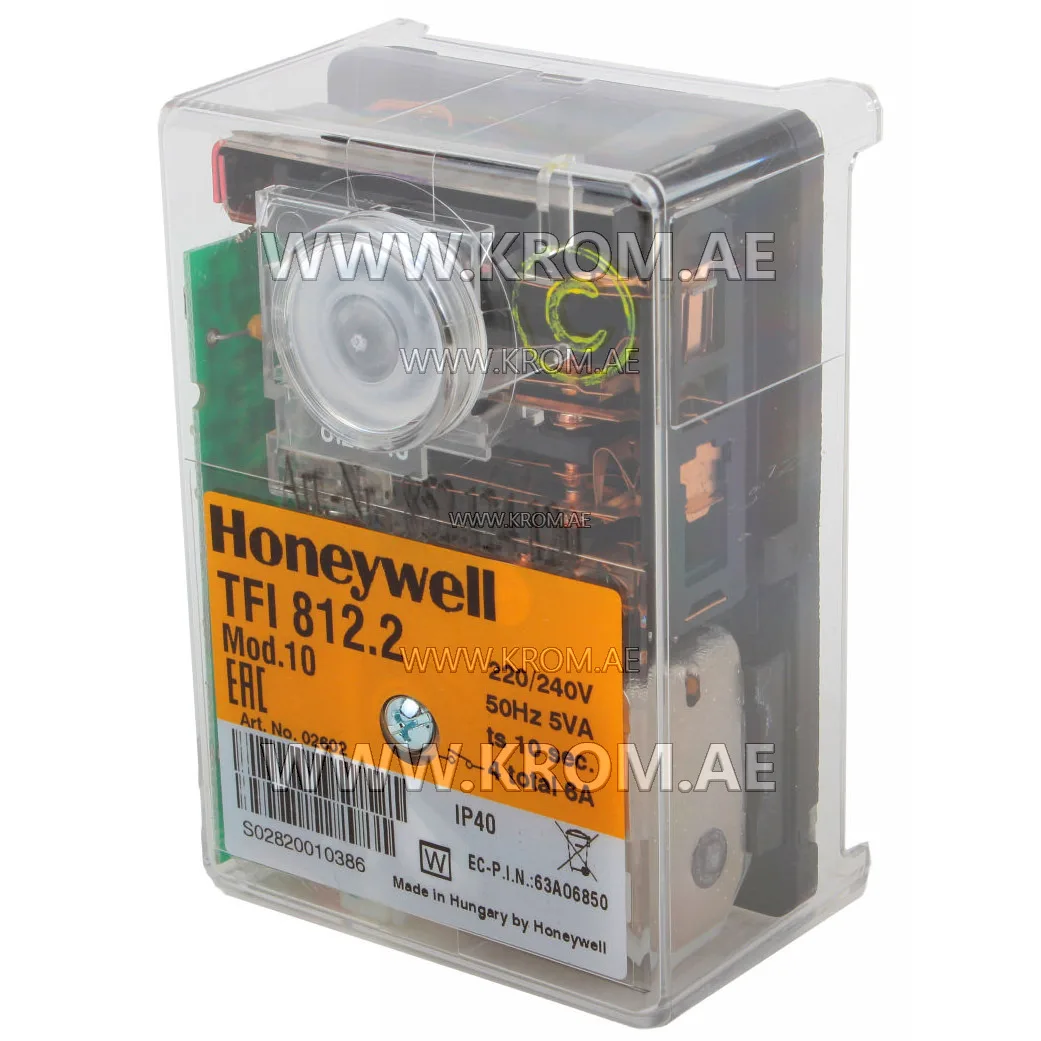

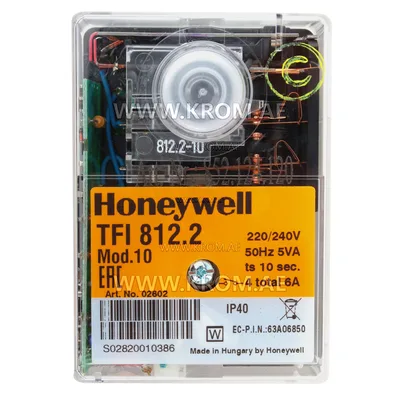

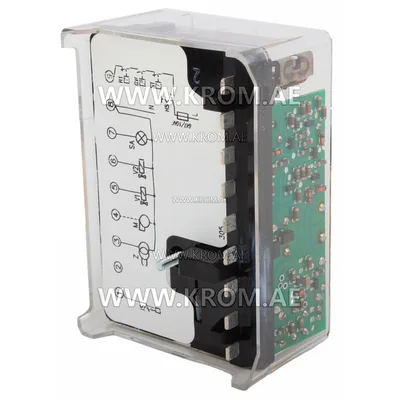

Honeywell TFI812 mod.10 02602 control box

A Honeywell TFI812 mod.10 control box, listed under catalogue article 852.124.120 and manufacturer code 02602, belongs to the category of burner controls (flame safeguards) that manage the ignition sequence and enforce safety times on oil or gas burners. Parts of this type are wired into the burner circuit between the room thermostat or controller and the actuators: they read signals from the air pressure switch and the flame detector, then drive the ignition transformer, fuel valve(s) and fan motor. During startup the control box performs pre-purge, ignition trial, fuel admission and flame proving within defined time windows; if no flame is detected within the safety time it locks out and must be reset manually. Selection of a replacement control box must be based on the exact series and type designation, supply voltage, pre-purge and safety times, flame detection method (ionisation, UV or IR), and the physical base or plug pattern – these parameters are not interchangeable across series even within the same brand. A mismatched safety time creates a genuine safety hazard, not a minor difference. When replacing a unit of this kind, always verify that the wiring diagram of the new control matches the existing burner circuit and that the flame detector type is compatible; some controls require a specific flame sensor or a separate amplifier. For modern wall-hung boilers the role is taken by an electronic control board matched to the boiler model, but in larger industrial or commercial burners a standalone control box like the TFI812 remains standard.
