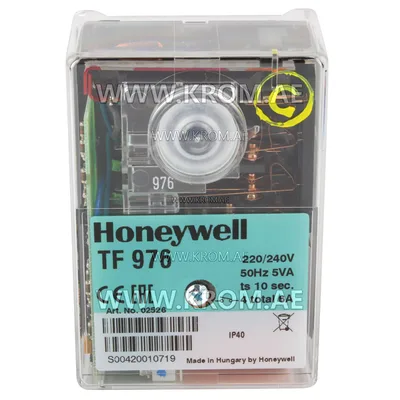

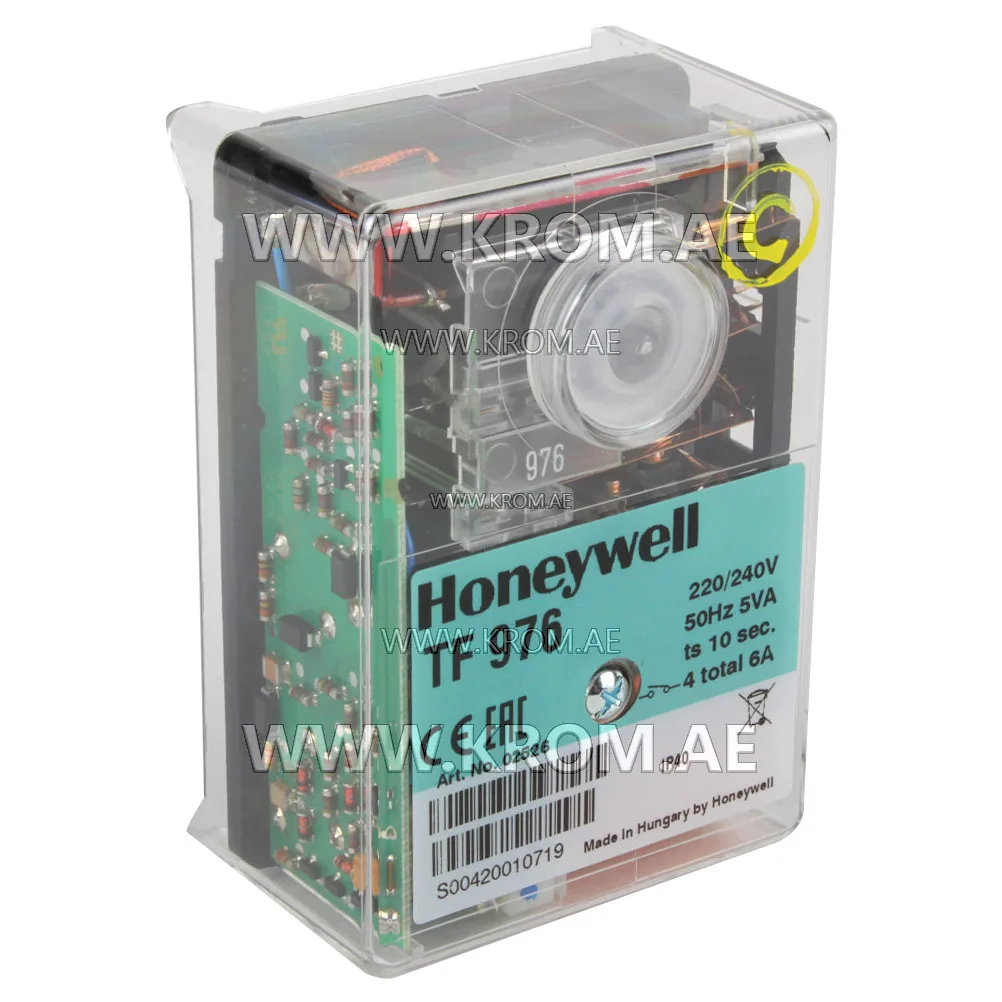

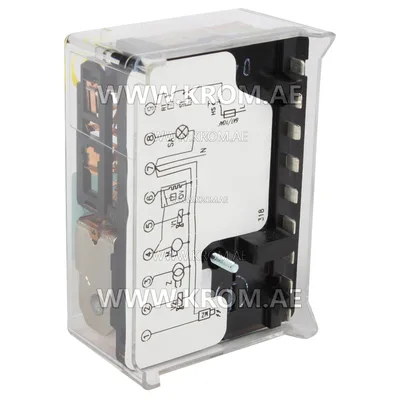

Honeywell TF976 02526 control box

Satronic TF976 02526 control box for 1- or 2-stage oil burners up to 30 kg/h, designed for intermittent operation. Flame detection: Photoresistor MZ 770 S Infrared-flicker detector IRD 1010.1 UV solid state sensor UVD 970 Honeywell TF976 gas burner control box technical data: Operating voltage 220/240 V (-15..+10%) 50 Hz (40-60Hz) Power consumption: ca. 5 VA Pre-purge time: ca. 12 sec Pre-ignition time: ca. 12 sec Post-ignition time: 2-4 sec Lockout safety time: 10 sec Reset time from lockout: ca. 60 sec Weight incl. wiring base: 0.25 kg Mounting position: any Protection class: IP44 Recommended ambient operating temperature for control and flame detector: 0°C...+60°C
