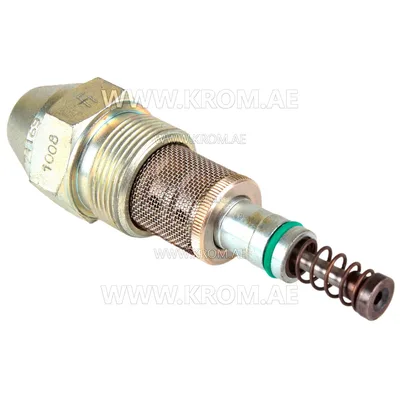

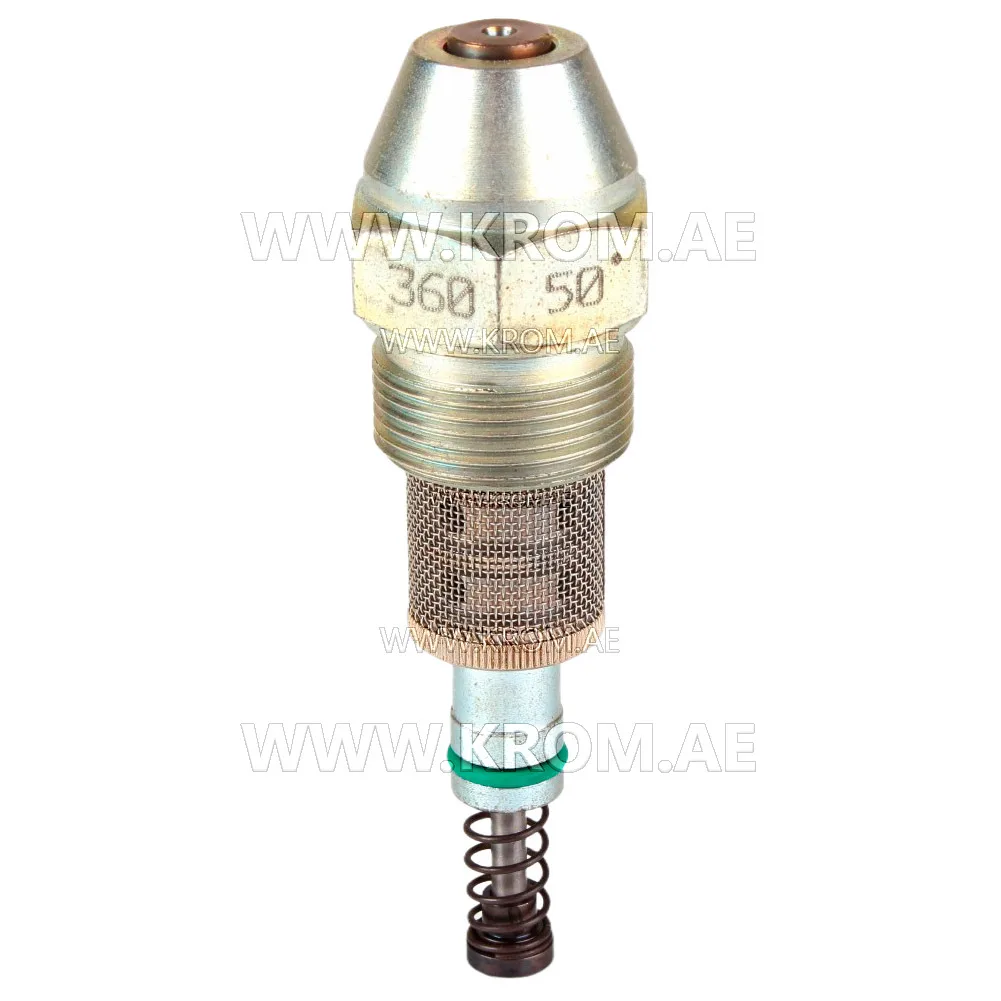

Fluidics W2-360-50 nozzle

Fluidics Nozzle W2-360-50 is designed to deliver 3.60 gallons of fuel per hour at a 50° spray angle. The solid cone pattern ensures a dense, focused flame, ideal for systems with restricted combustion chambers. The W2 series guarantees stable flame performance under high thermal load. The nozzle works by inducing internal swirl within the fuel chamber, producing a uniform atomized mist through a precision orifice. This enhances combustion efficiency and reduces soot emissions. Flow rate: 3.60 GPH Spray angle: 50° Spray type: Solid Cone (W2) Material: stainless steel Operating pressure: 145–375 psi Ideal for industrial burners, drying systems, and thermal generators with compact combustion zones.
