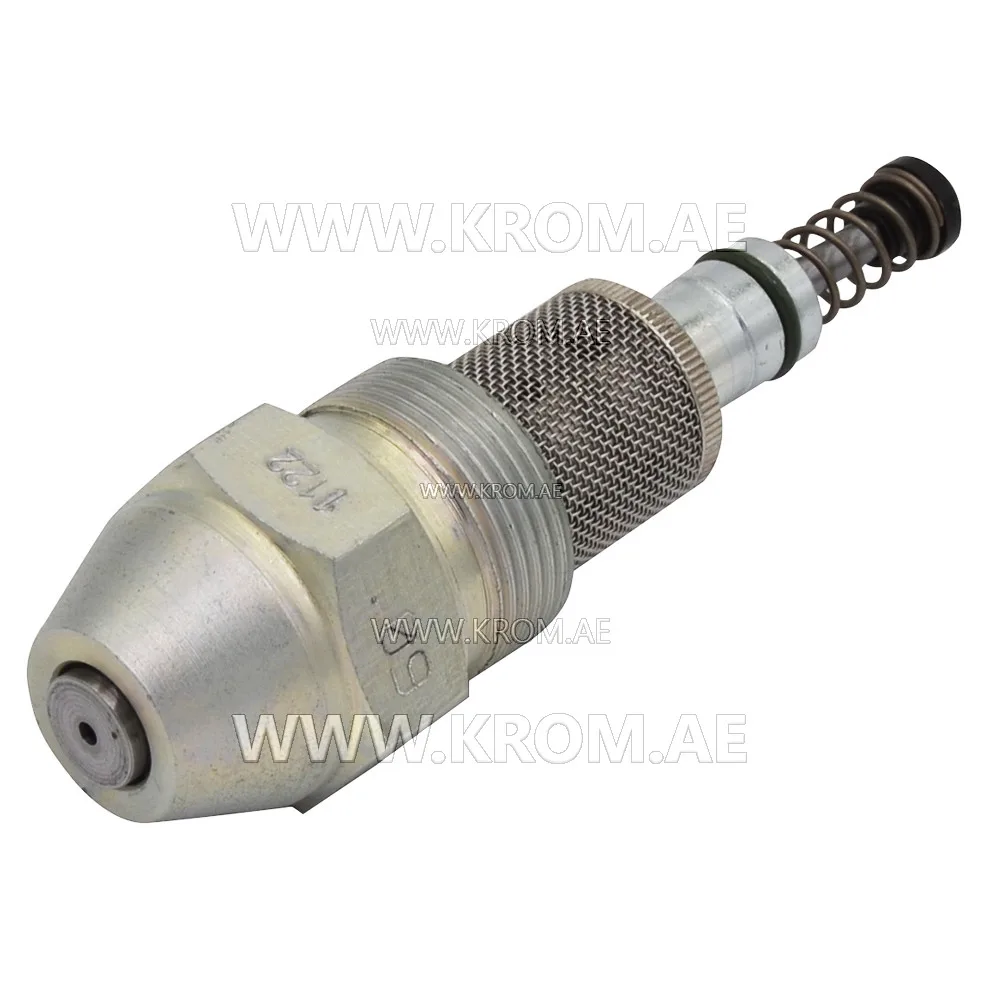

Fluidics W1-200-60 nozzle

The Fluidics W1-200-60 nozzle is an oil nozzle, a precision consumable component that atomises fuel oil into a fine spray cone for complete combustion. Nozzles of this type are selected by three interdependent parameters: flow rate (given in GPH or kg/h at a reference pressure, typically 7 bar or 100 psi), spray angle (commonly between 30° and 80°), and spray pattern (hollow, solid, or semi-solid). The thread size must also match the burner’s nozzle holder. Using a nozzle with the correct rating but a mismatched pattern or angle can cause sooting, pulsation, or unstable ignition. Always verify all three parameters against the burner data plate. Parts of this class sit at the end of the oil supply line, downstream of the pump and solenoid valve, and direct the atomised fuel into the combustion head’s air stream. Because oil nozzles are consumable items subject to wear from thermal stress and fuel contaminants, periodic replacement is standard practice. When replacing a nozzle, note the existing nozzle’s rating, angle, and pattern, and confirm the thread type (usually 1/8″ BSP or NPT). The Fluidics W1-200-60 is one such nozzle; its catalogue reference is 480.892.066. No further performance data or compatibility details are available from the supplier.
