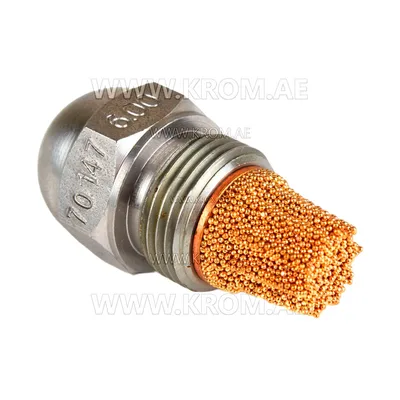

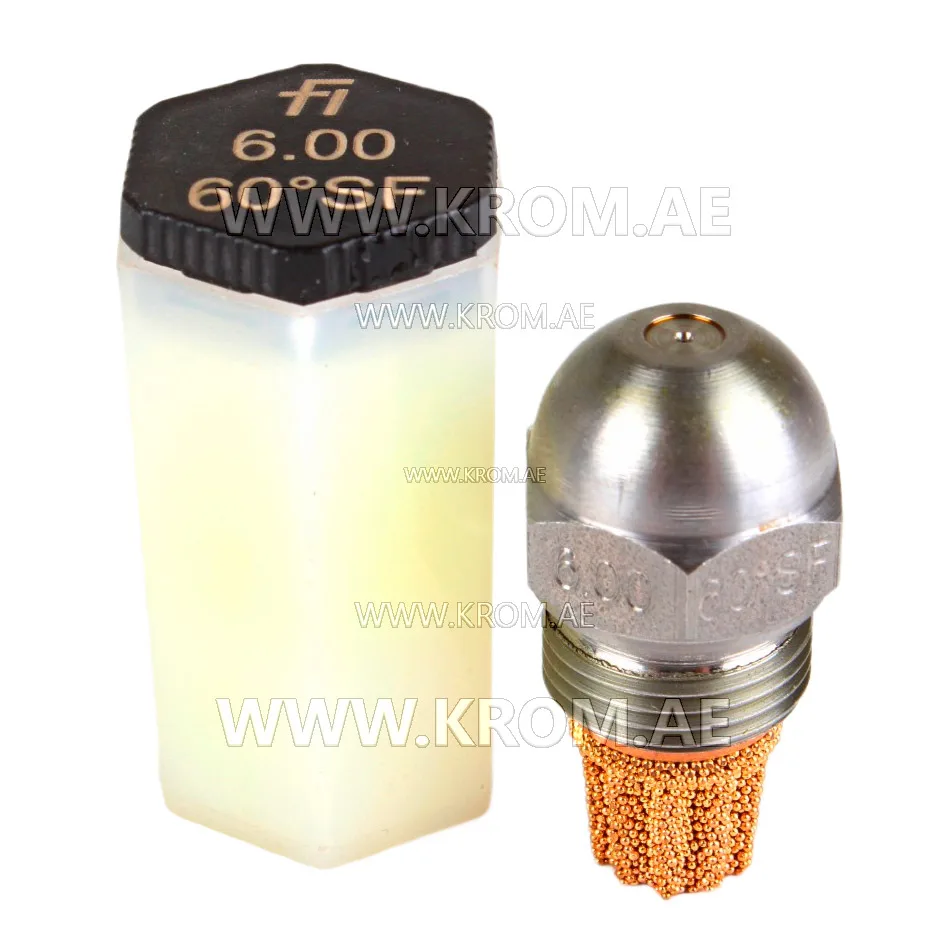

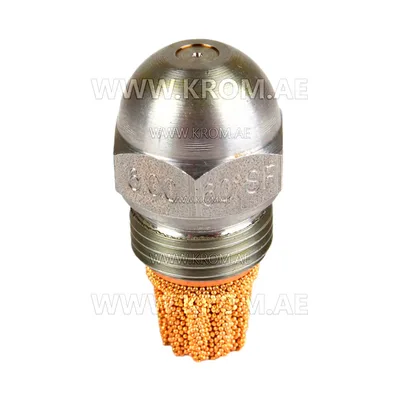

Fluidics 6.00GPH, 60SF nozzle

This Fluidics oil nozzle is rated 6.00 GPH and carries the designation 60SF. It belongs to the category of precision consumable parts that atomise fuel oil into a fine spray for combustion. The nozzle is fitted at the end of the oil pump line and delivers a metered flow of fuel into the combustion head, where it mixes with air and is ignited. For a nozzle of this type, three parameters determine correct operation: the flow rate (in GPH at a reference pressure), the spray angle, and the spray pattern. The flow rate must match the burner’s capacity; the spray angle (typically between 30 and 80 degrees) positions the flame relative to the combustion head; the pattern (hollow, solid, or semi-solid) governs the air-fuel mixing. A nozzle with the correct flow but wrong pattern may cause sooting, pulsation, or unstable ignition. Therefore, when replacing an oil nozzle, all three values should be verified against the burner data plate. The thread size and type must also be compatible with the nozzle holder. The 6.00 GPH and 60SF markings are part of the standard identification system for such nozzles. No further compatibility or application information is available for this specific article. Always compare the existing nozzle’s rating, angle, and pattern to ensure a correct match.
