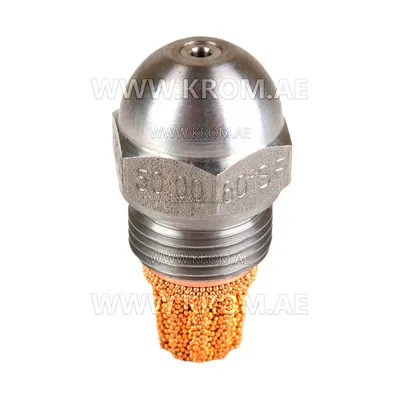

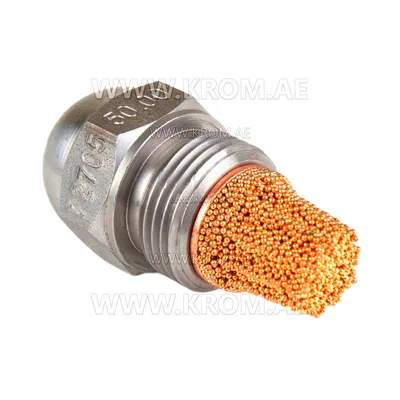

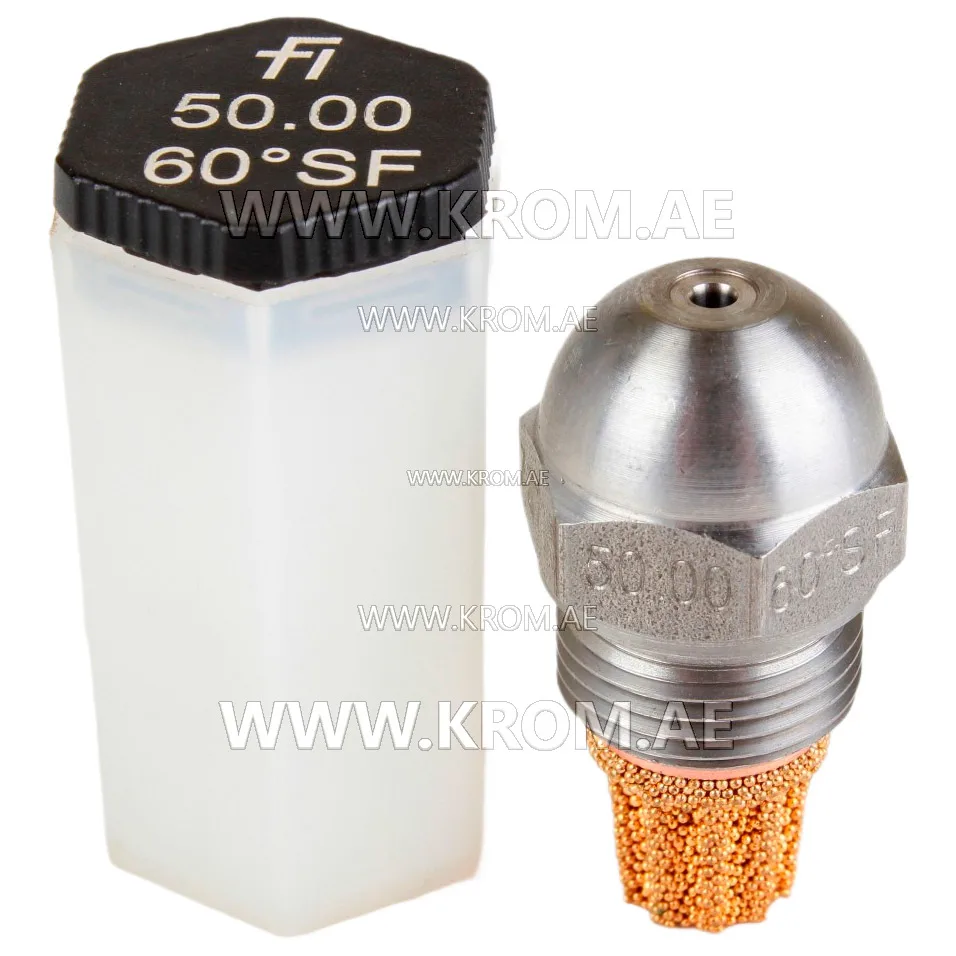

Fluidics 50.00GPH, 60SF nozzle

This article is a Fluidics oil nozzle, catalogue number 480.892.042, listed as a 50.00GPH, 60SF nozzle. In an oil burner, the nozzle sits at the end of the oil line inside the combustion head. Its job is to atomise the fuel oil into a fine spray so that it mixes with the combustion air and burns completely. The nozzle is a precision consumable: its flow rating, spray angle and spray pattern together determine how the flame sits in the combustion head and how stable the ignition and combustion are. When selecting a replacement, the heating engineer must match three parameters from the burner data plate: the flow rate (given in US gallons per hour – GPH – at the rated pump pressure), the spray angle (typically between 30° and 80°), and the pattern – hollow cone, solid cone or semi-solid. The designation 50.00GPH refers to the flow capacity at the reference pressure, and 60SF likely indicates the angle and pattern, but these abbreviations should be verified against the manufacturer’s specification. A nozzle with the correct flow rate but the wrong pattern can cause sooting, pulsation or unstable ignition, so all three values must be confirmed before fitting. When changing a nozzle, always check the condition of the oil filter and replace it if any debris is present. The nozzle thread and sealing washer must be undamaged to prevent leaks and air ingress. Torque should be moderate – overtightening can distort the nozzle bore and alter the spray. After installation, run the burner and verify the flame shape and combustion readings with a flue gas analyser, adjusting the air setting if necessary.
