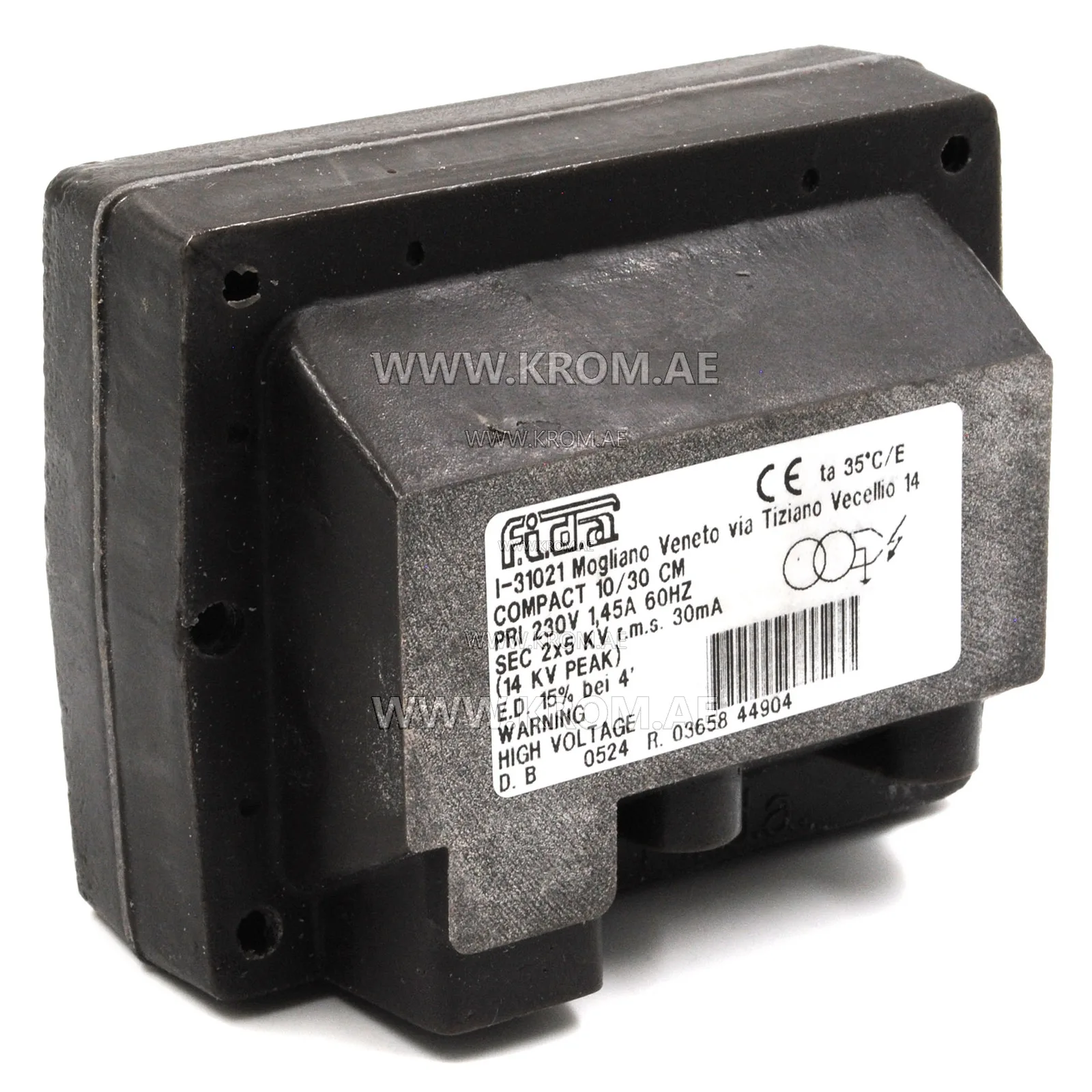

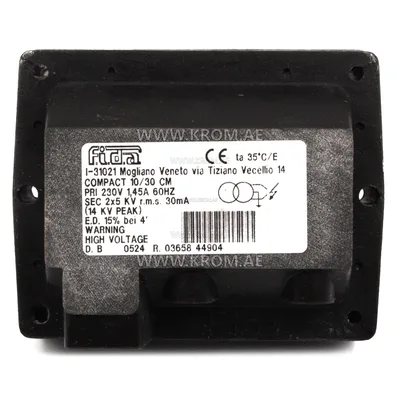

Fida Compact 10/30CM 15% ignition transformer

Ignition transformer Fida Compact 10/30CM 15%, TE105D01 Powerful dual-spark transformer 2x5 kV for intermittent operation of industrial burners Ignition transformer Fida Compact 10/30CM 15% (TE105D01) is an original high-voltage component designed to generate a powerful spark that ignites the fuel-air mixture in the combustion chamber of gas and oil burners. The Compact 10/30CM model has two high-voltage outputs (dual-spark) with output voltage 2 x 5 kV and is rated for intermittent operation with duty cycle ED 15%. If your burner fails to start, does not spark, or operates intermittently, the cause is often a worn or damaged ignition transformer. Technical specifications Parameter Value Part numbers TE105D01, 462.820.035 Manufacturer Fida (Italy) Transformer type Dual-spark (2 outputs), compact (Compact) Supply voltage (PRI) 230 V, 50/60 Hz Primary current 1.45 A Secondary voltage (SEC) 2 x 5 kV r.m.s. (up to 14 kV PEAK) Secondary current 30 mA Duty cycle (ED) 15% (intermittent, 15% ON) Ingress protection IP44 (sealed plastic housing) Ignition cable connectors Plug-in Ø4 mm Dimensions (L x W x H) 115 x 86 x 70 mm Weight 1.9 kg Key advantages Powerful dual-spark ignition: The transformer generates a stable high-voltage spark (2x5 kV) with 30 mA current, ensuring reliable ignition of the fuel-air mixture even with significant electrode gaps. Intermittent operation (ED 15%): The transformer is designed for cyclic operation (15% on time, 85% pause), matching the typical operation of most industrial burners with intermittent start cycles. Sealed and compact IP44 housing: The transformer is enclosed
