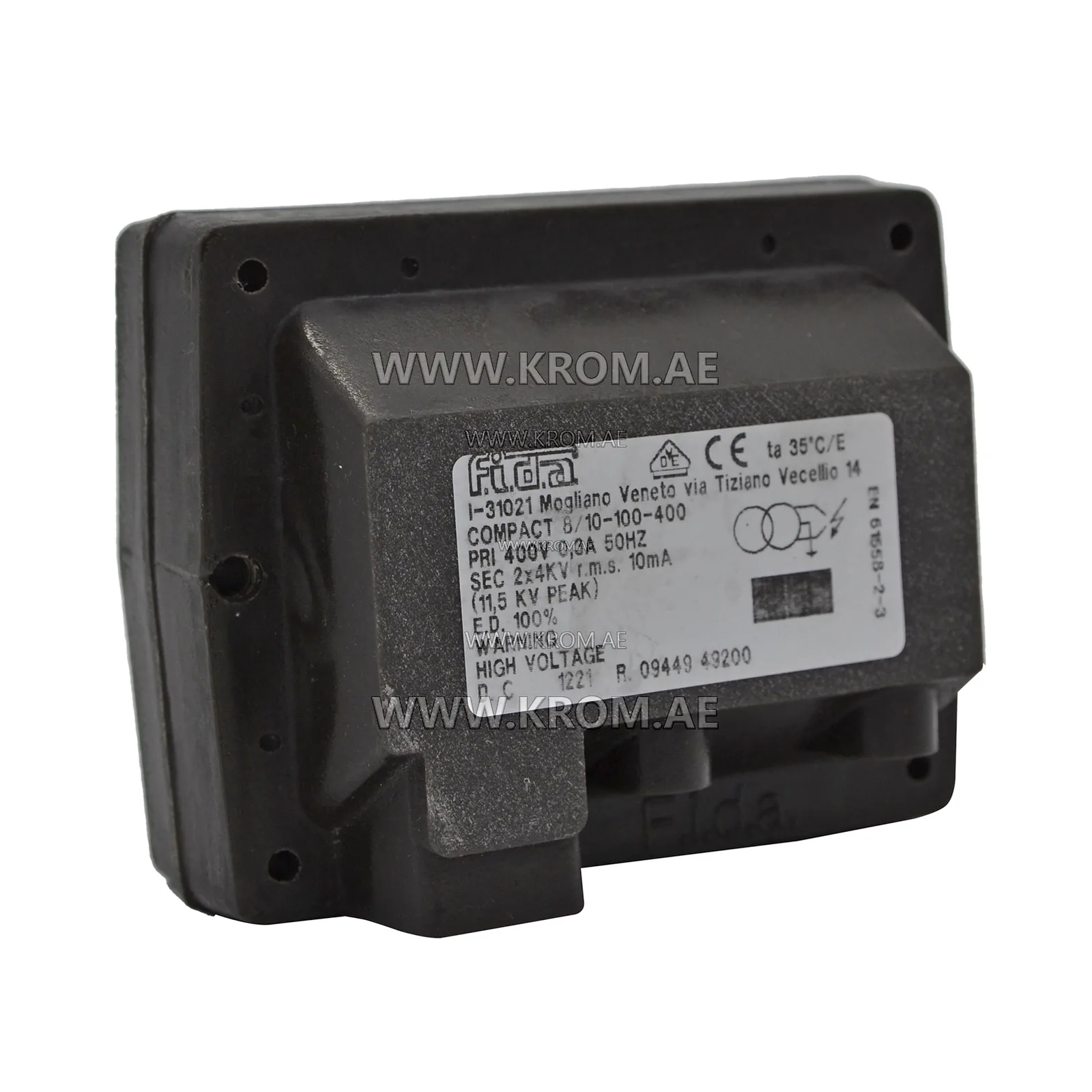

Fida Compact 8/10CM 400V ignition transformer

Ignition transformer Fida Compact 8/10CM 400V (TE081S05) Dual-spark transformer 2x4 kV with 400 V supply for industrial burners and continuous operation Ignition transformer Fida Compact 8/10CM 400V (TE081S05) is an original high-voltage component designed to generate a powerful spark that ignites the fuel-air mixture in the combustion chamber of gas and oil burners. The key feature of this model is the 400 V (three-phase/line-to-line voltage) power supply, making it an ideal solution for industrial equipment where single-phase 230 V is not available or where connection to an existing three-phase network is required. If your burner fails to start, produces no spark, or operates intermittently, the cause is often a worn or damaged ignition transformer. Technical specifications Parameter Value Part numbers TE081S05, 462.820.029, F8/10CM400 Manufacturer Fida (Italy) Transformer type Dual-spark, compact (Compact) Primary voltage (PRI) 400 V, 50 Hz Primary current 0.3 A Secondary voltage (SEC) 2 x 4 kV r.m.s., current 10 mA Duty cycle (ED) 100% (continuous operation) Max. ambient temperature (ta) 35°C Ingress protection rating IP44 (sealed plastic housing) Application Industrial burners with 400 V supply Key advantages 400 V supply for industrial installations: Model TE081S05 is specifically designed for connection to a 400 V three-phase network. This allows the transformer to be used in burners of industrial equipment where standard single-phase 230 V supply is not available, or to be connected to an existing line-to-line circuit without additional converters. High reliability for continuous operation: The transformer has a duty cycle (ED) of 100%, meaning it can operate
