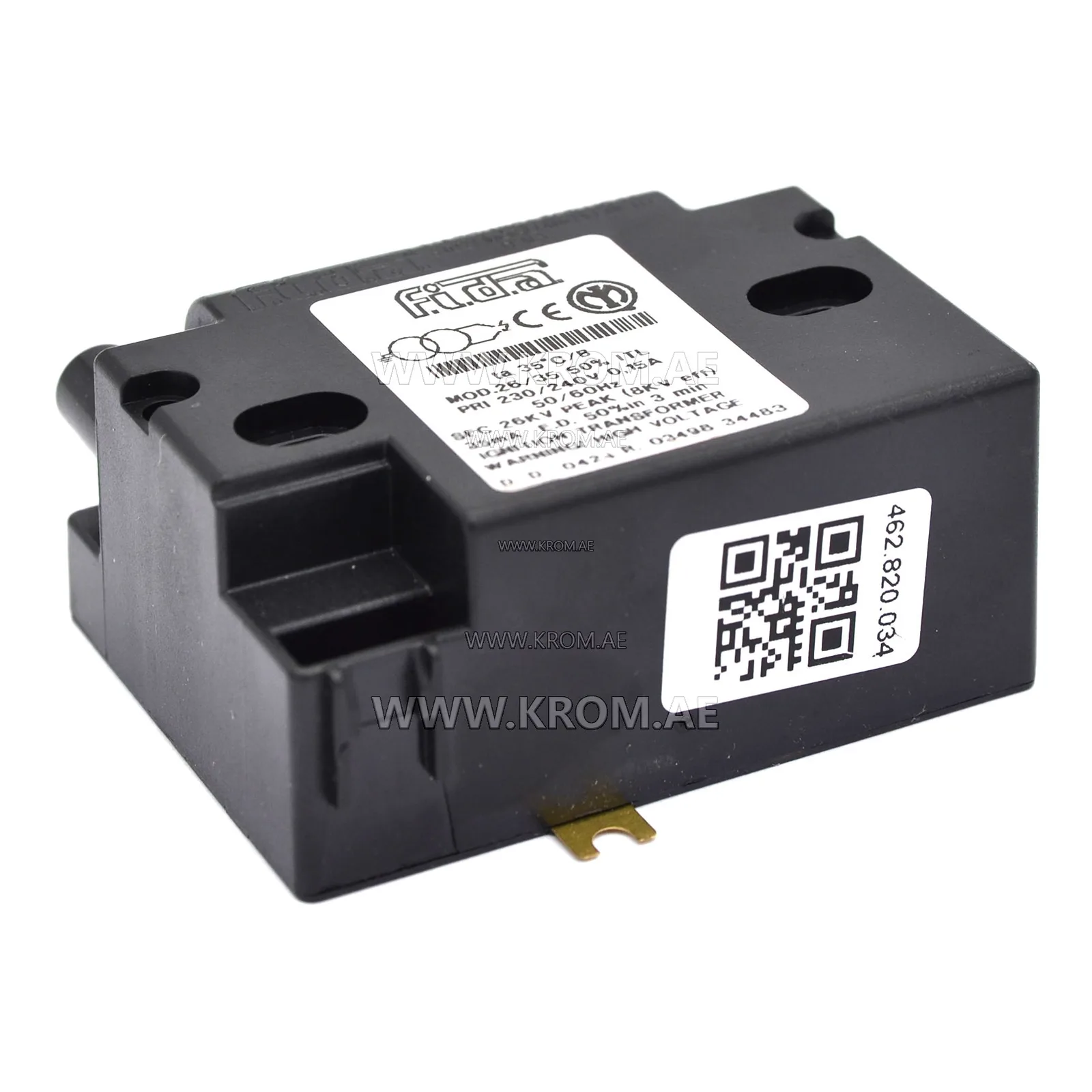

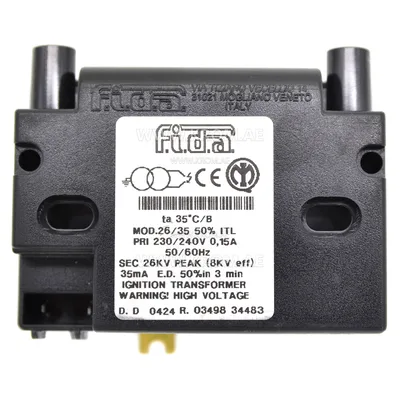

Fida 26/35 50% ITL ignition transformer

Ignition transformer Fida 26/35 50% ITL, ENTLD3 Powerful dual-spark transformer 26 kV for industrial burners Elco and other brands Ignition transformer Fida 26/35 ITL (ENTLD3) is an original high-voltage component designed to generate a powerful spark that ignites the fuel-air mixture in the combustion chamber of industrial gas and oil burners. The model has two high-voltage outputs and is rated for continuous operation (ED 50%), making it indispensable for powerful boiler equipment with frequent start cycles. If your burner fails to start, does not spark, or operates intermittently, the cause is often a worn or damaged ignition transformer. Technical specifications Parameter Value Part numbers ENTLD3, 462.820.034 Manufacturer Fida (Italy) Transformer type Dual-spark (two outputs) Supply voltage 230 V, 50/60 Hz Ignition voltage (Peak) 26 kV Ignition voltage (Eff) 2 x 7.5 kV / 13 kV Ignition current 35-40 mA Primary current 0.15-0.25 A Duty cycle (ED) 50% (at 3 min) Ingress protection IP44 Ignition cable connectors Plug-in Ø4 mm Power connector 3-pin plug-in, separate ground terminal Dimensions (L x W x H) 8.5 x 3.8 x 6.6 cm Weight 0.6 kg Compatibility Fida 26/35 ITL (ENTLD3) transformer is used for servicing powerful industrial burners, including: Elco: VG 3.290 D E, VG 3.350 D E, VG 3.290 DP E, VG 3.350 DP E, VG 5.950 DP, VG 5.950 DP R, VG 5.1200 DP, VG 5.1200 DP R, VG 6.1600 DP, VG 6.1600 DP R, VG 6.2100 DP, VG 6.2100 DP R Key advantages High output voltage 26 kV (peak): The transformer generates a powerful spark with voltage up to 26 kV peak, ensuring reliable ignition of the fuel-air mixture even in large chambers with
