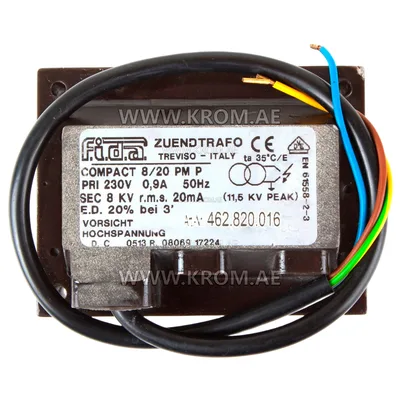

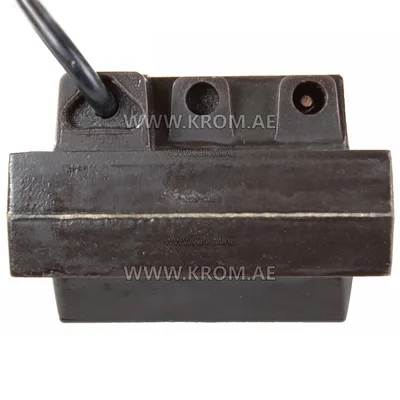

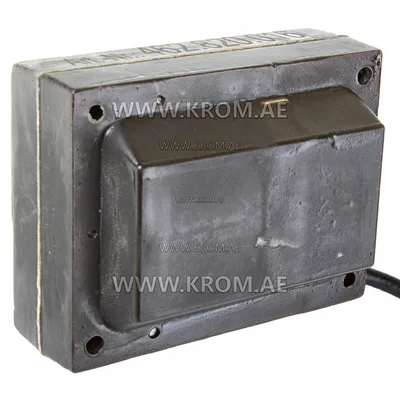

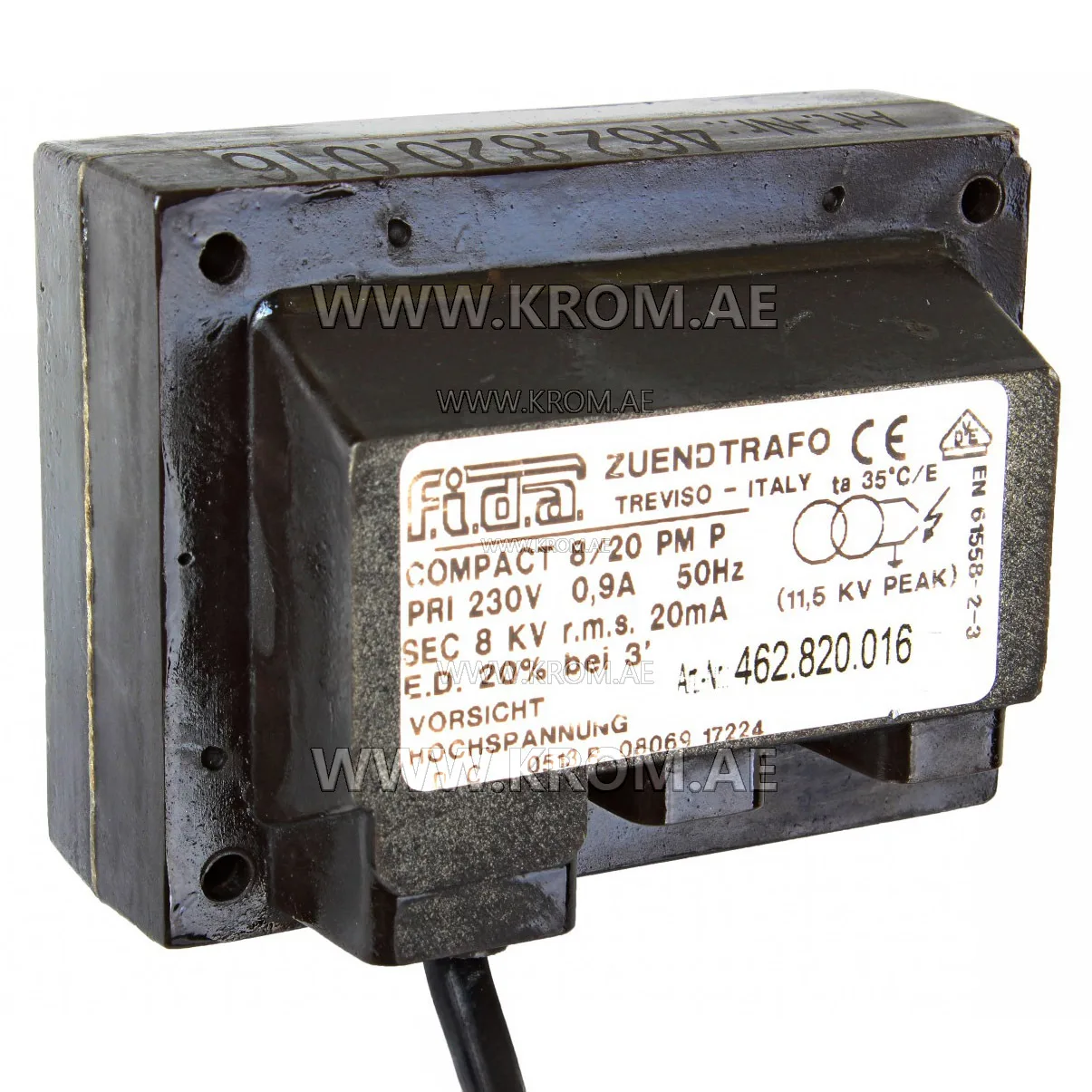

Fida 8/20PM P compact ignition transformer

Fida is the manufacturer of the ignition transformer called Fida Compact 8/20 PM P (cable) TF084C02. It is designed to create a high-voltage electric arc between the ignition electrodes to initiate the combustible mixture. Here are the main characteristics of this 8/20 PM P (cable) ignition transformer: Supply voltage is 230 V at a frequency of 50 Hz and a current of 0.9 A. The ignition voltage is 8 kV. The ignition current is 20 mA. The peak voltage reaches 11.5 kV. The discharge time efficiency is 20% within 3 minutes. The power cable length is 520 mm. The plug connector of the ignition cable has a diameter of 4 mm.
