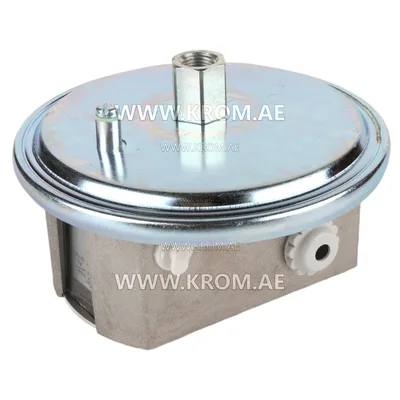

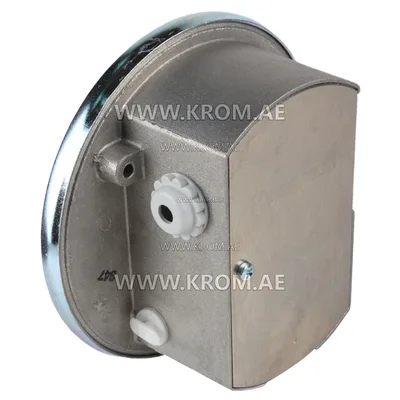

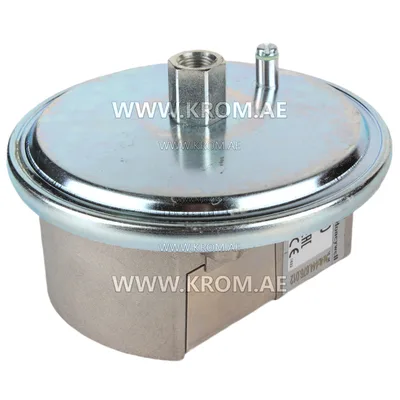

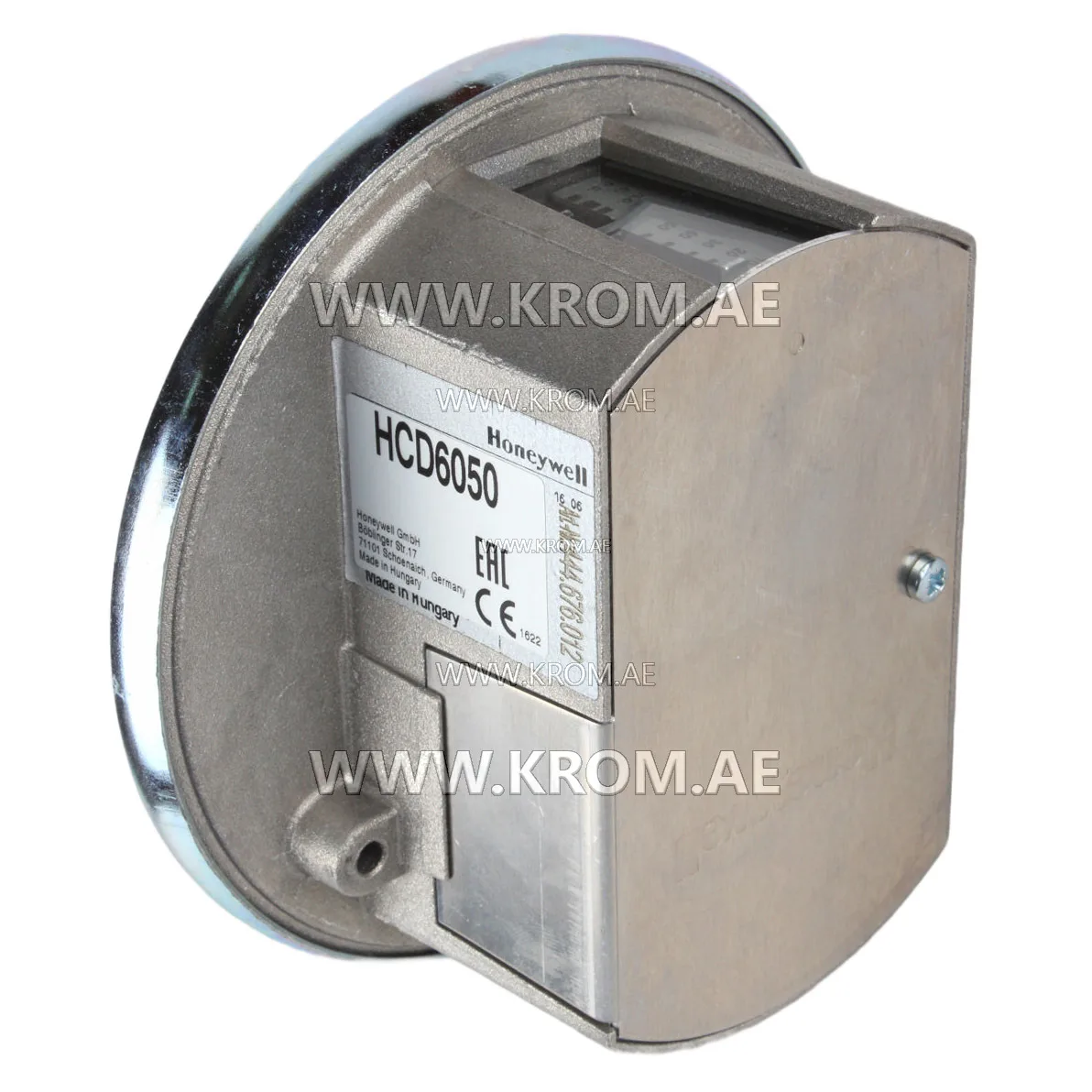

Fema HCD6050 pressure switch

Honeywell HCD6050 pressure switches suitable for neutral and non-aggressive gases. Honeywell Fema HCD6050 pressure switch can be used for monitoring overpressure and differential pressure. Fema HCD6050 differential pressure switch technical data: Setting range: 5-50 mbar Switching differential: 1.5-3 mbar Maximum working pressure: 200 mbar Pressure connection: Pressure connection for overpressure: G 1/4" internal thread. For vacuum and differential pressure: G 1/8" internal thread Switch housing: Diecast aluminium Medium temperature: -15 to +60 °C Mounting position: Horizontal with connection pieces pointing downwards Type of protection: IP 40 according to DIN 40050 Mounting: Either directly on pipe or with mounting bracket (supplied) on a vertical surface Setting the switching point: Remove the cover and turn the setting spindle marked +/- in the corresponding direction. The scale shows only guideline values. For accurate setpoint adjustment, it is necessary to use a pressure gauge, which can be attached to the measuring point (9 mm ø pressure measurement connector) Switching function: Single pole switching
