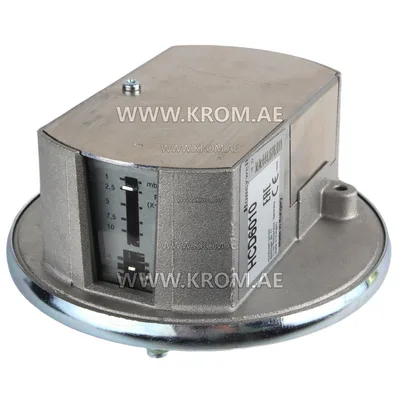

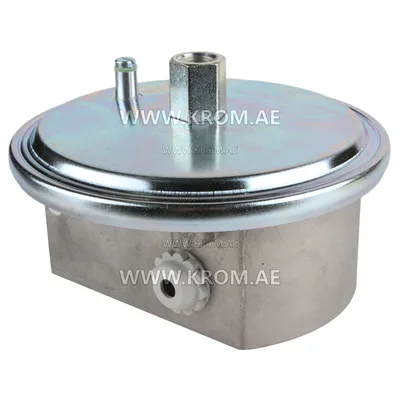

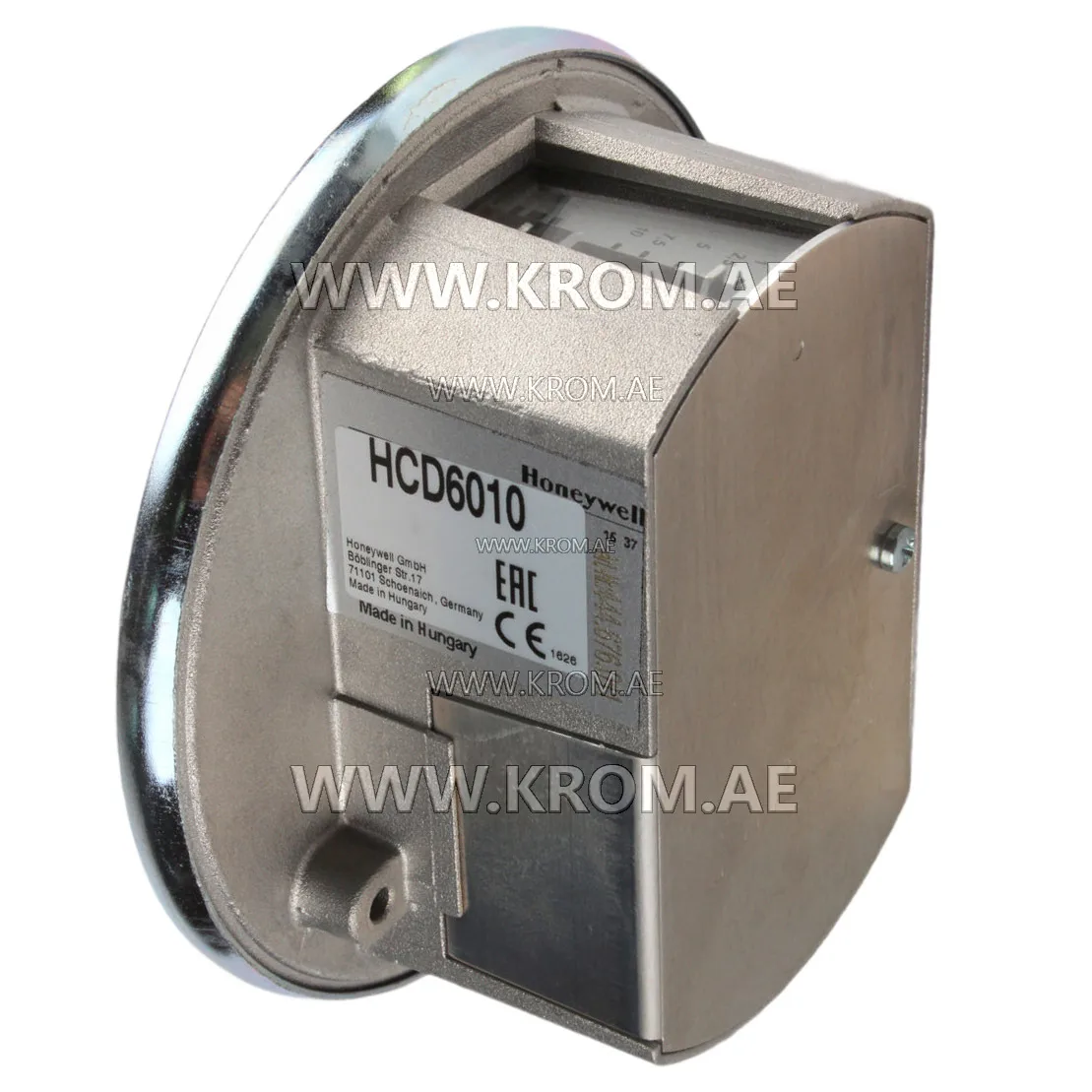

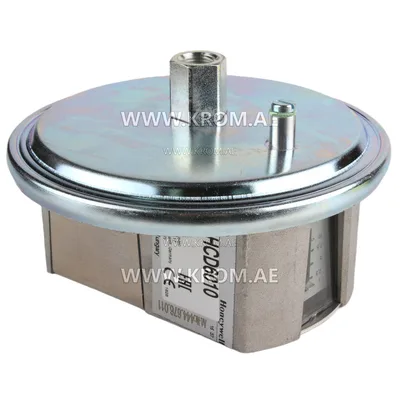

Fema HCD6010 pressure switch

Fema HCD6010 pressure switches suitable for neutral and non-aggressive gases. Honeywell HCD6010 differential pressure switches can monitor both overpressure and differential pressure. For overpressure, connect the pressure side to the lower G 1/4" fitting. For vacuum, use the upper G 1/8" fitting. For differential pressure, apply high pressure to the lower G 1/4" fitting and low pressure to the upper G 1/8" fitting. The switches feature a 9 mm measuring nozzle for precise pressure adjustment. Honeywell HCD6010 pressure switch have been tested to DIN EN 1854 and approved by DVGW for air and fuel gases per DVGW G 260. Honeywell Fema HCD6010 differential pressure switch technical data: Setting range: 1-10 mbar Switching differential: 0.3-1 mbar Maximum working pressure: 100 mbar Pressure connection: Pressure connection for overpressure: G 1/4" internal thread. For vacuum and differential pressure: G 1/8" internal thread Switch housing: Diecast aluminium Medium temperature: -15 to +60 °C Mounting position: Horizontal with connection pieces pointing downwards Type of protection: IP 40 according to DIN 40050 Mounting: Either directly on pipe or with mounting bracket (supplied) on a vertical surface Setting the switching point: Remove the cover and turn the setting spindle marked +/- in the corresponding direction. The scale shows only guideline values. For accurate setpoint adjustment, it is necessary to use a pressure gauge, which can be attached to the measuring point (9 mm ø pressure measurement connector) Switching function: Single pole switching
