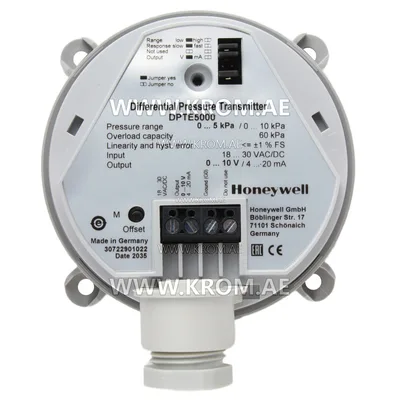

Fema DPTE5000 pressure switch

Honeywell DPTE1002 differential pressure switches used in ventilation systems to accurately monitor the condition of filters, dampers, and fans. Fema DPTE5000 pressure switch technical data: Output signal: 4...20 mA (2-wire); Working environment: air, non-aggressive gas; Operating temperature: 0...50°C; Measurement error: ≤ ± 1.0%; Transport and storage temperature: -40...+85°C; Humidity: 0...95% rh, non-condensing; Supply voltage: 18...30 Vac/DC, 50/60 Hz; Response time: 1 s (up to 100ms possible); connection of the pipeline: a tube with a diameter of 6mm; Electrical connection: screw terminal block for wires no more than 1.5 mm2; Protection class: IP54. Honeywell Fema DPTE1002 pressure switches measure the pressure differential across the specified devices, ensuring precise monitoring of their operation. Honeywell DPTE1002 differential pressure switches allows users to promptly detect and address any deviations in the performance of the ventilation system, thereby enhancing its efficiency and reliability. Fema DPTE1002 differential pressure switches help maintain optimal operating conditions for the equipment, preventing overload and wear. They are easy to install and configure, making them a convenient solution for various ventilation systems.
