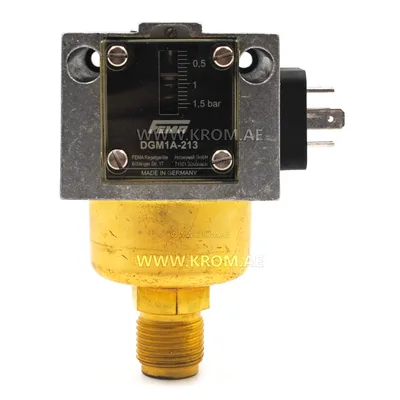

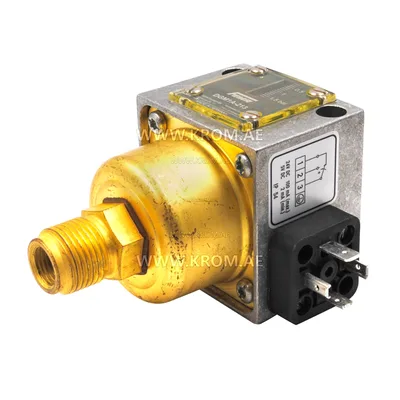

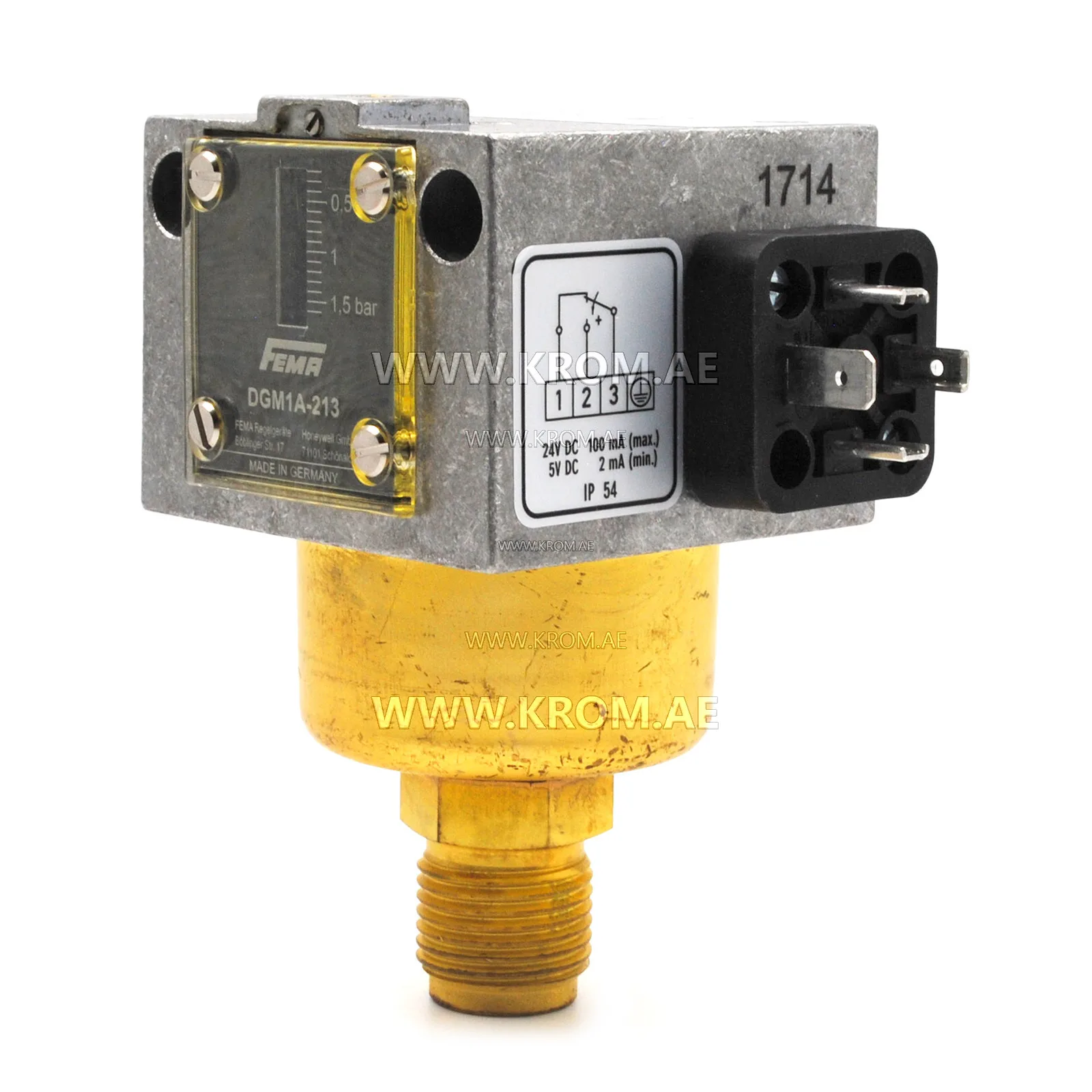

Fema DGM1A-213 pressure switch

Honeywell Fema DGM1A-213 pressure switches designed for steam, hot water, fuel gases, and liquid fuels. Honeywell DGM1A-213 pressure switches developed and certified to operate with gases according to DVGW G260 specifications and EN 1854 sealing criteria. However, it is essential to conduct a chemical resistance test before selecting the device. The standards include EN 13611 and DIN EN 1854, while the directives encompass EU/2009/142/EC (GAD) and EU/94/9/EC (ATEX). Fema DGM1A-213 pressure switch technical data Setting range: 0.2-1.6 mbar Switching differential: 40 mbar Maximum working pressure: 3 bar ambient temperature: -25 to 60 °C ambient temperature: 60 °C The difference in the sizes of materials operating at contact pressure (average values) when pulling the medium Switching: Single-pole switching Switching capacity: 8 (5) A, 250 V AC Installation position: Vertical and horizontal Pressure connection: External thread G 1/2” A (pressure gauge connection) according to DIN 16288 and internal thread G 1/4” according to ISO 228, Part 1. When working with gas, the internal thread is allowed only at pressures up to 4 bar. If the pressure is > 4 bar, use a flat O-ring.
