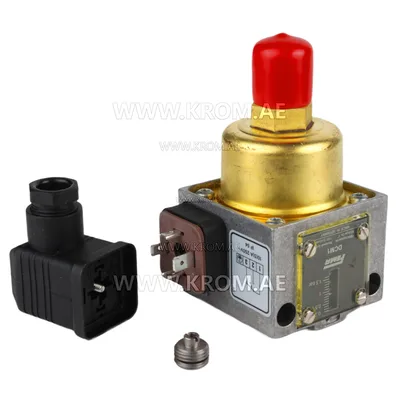

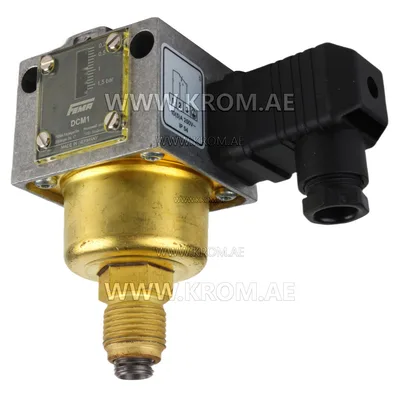

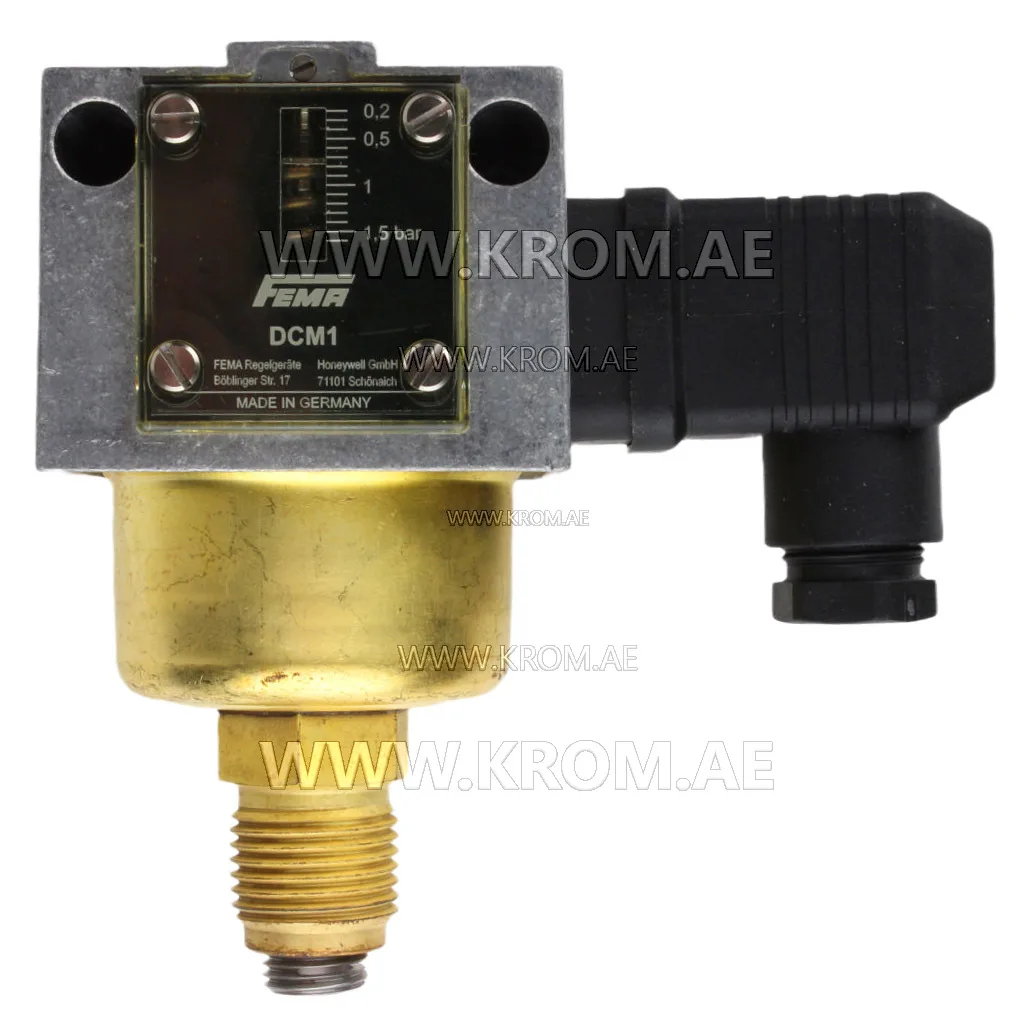

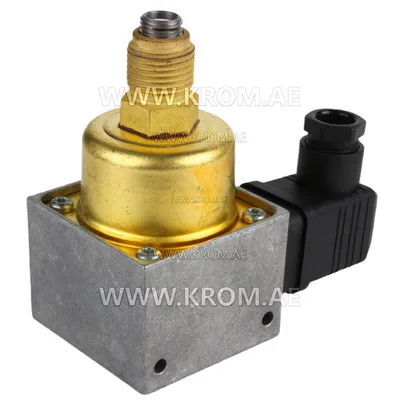

Fema DCM1 pressure switch

Fema DCM1 differential pressure switch employed to measure overpressure. Honeywell DCM1 pressure switch can be utilized in various sectors, such as mechanical engineering, the printing industry, and in pneumatic and hydraulic systems. Honeywell Fema DCM1 pressure switches calibrated to operate under decreasing pressure, meaning that the adjustable switching pressure on the scale matches the switching point when the pressure drops. The reset point is higher by the amount of the switching differential. Fema DCM1 gas pressure switch technical data: Setting range: 0.2-1.6 bar Switching differential: 0.04 bar Maximum working pressure: 6 bar Pressure connection: External thread G 1/2 (pressure gauge connection) according to DIN 16 288 and internal thread G 1/4 according to ISO 228 Part 1 Switching device: Robust housing (200) made of seawater-resistant die cast aluminium GD Al Si 12 Degree of protection: IP 54, in vertical position medium temperature: The maximum medium temperature at the pressure sensor must not exceed the permitted ambient temperature at the switching device. Temperatures may reach 85°C for short periods. Higher medium temperatures are possible provided the above limit values for the switching device are ensured by suitable measures (e.g. siphon) Mounting: Directly on the pressure line (pressure gauge connection) or on a flat surface with two 4 mm Ø screws Switching pressure: Adjustable from outside with screwdriver Contact arrangement: Single-pole changeover switch
