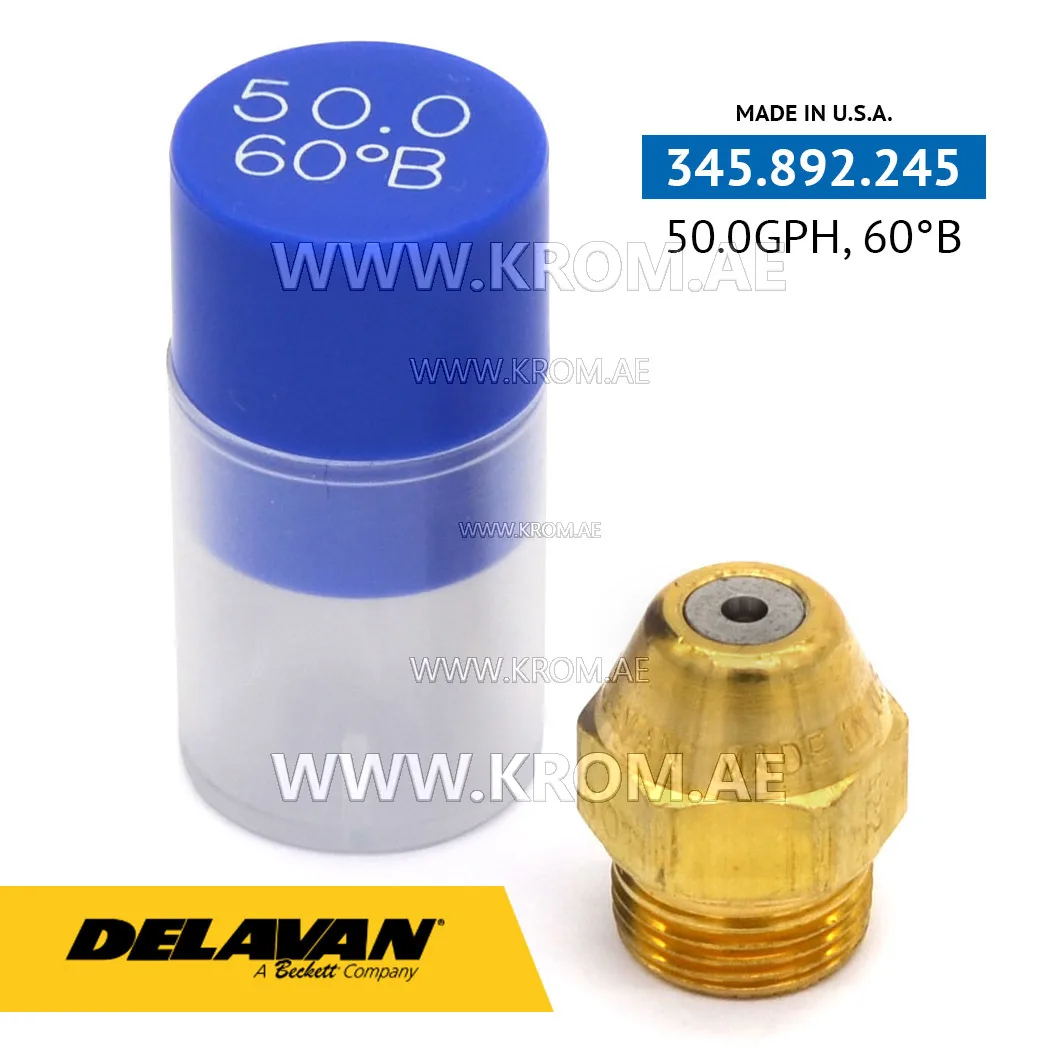

Delavan 50.00GPH, 60B nozzle

Delavan 05000-60B0 oil burner nozzles in burners are used to evenly distribute fuel (most often gas or liquid) inside the burner and form an optimal mixture with air. This ensures efficient combustion, which allows you to achieve the required temperature and thermal energy output with minimal fuel consumption. Delavan 50.00GPH, 60B oil burner nozzle technical data: Capacity: 50 gal/hr Spray angle: 60 degrees Nozzle Type: B SOLID-CONE Type B -nozzles produce a spray that distributes droplets fairly uniformly throughout the complete pattern. The spray pattern becomes progressively more hollow at higher flow rates, particularly above 8.00 GPH. Provides smooth ignition and efficient combustion, particularly in larger burners.
