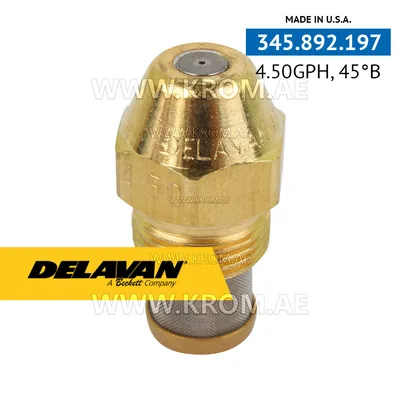

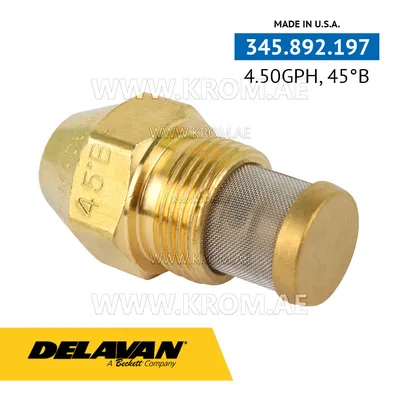

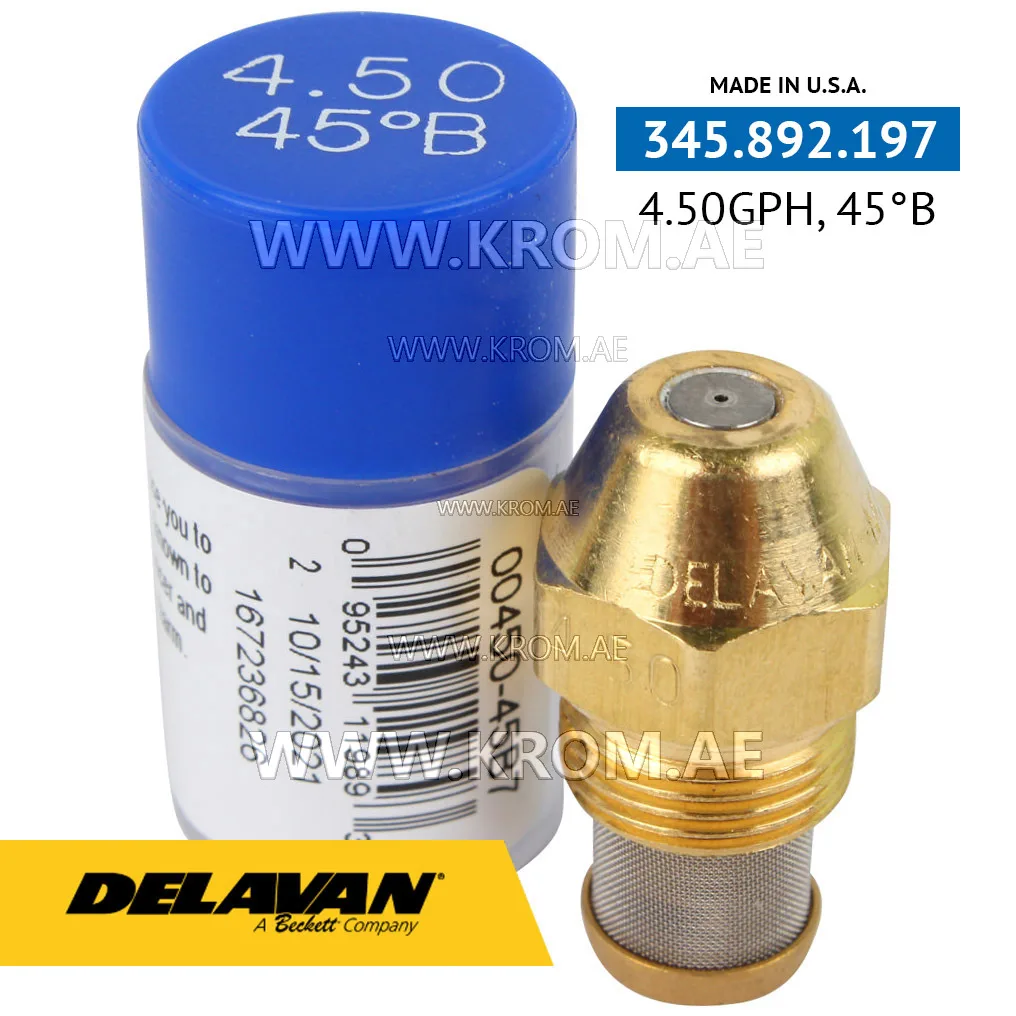

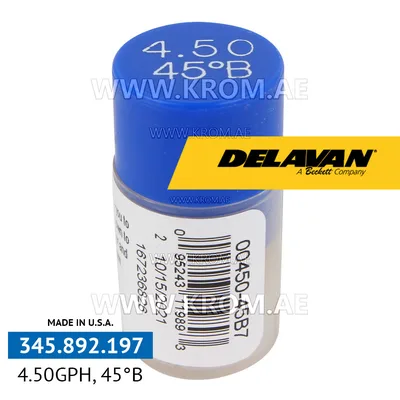

Delavan 4.50GPH, 45B (7) nozzle

Delavan 00450-45B7 oil nozzles in burners play a crucial role in the fuel combustion process, ensuring optimal distribution of fuel and air. Thanks to innovative technologies and high-quality materials, Delavan 4.50GPH, 45B (7) oil burner nozzles provide stable and economical operation, which makes them an important component for achieving high productivity and energy efficiency in various industries and domestic use. Delavan 4.50GPH, 45B (7) oil burner nozzle technical data: Capacity: 4.5 gal/hr Spray angle: 45 degrees Nozzle Type: B SOLID-CONE Type B -nozzles produce a spray that distributes droplets fairly uniformly throughout the complete pattern. The spray pattern becomes progressively more hollow at higher flow rates, particularly above 8.00 GPH. Provides smooth ignition and efficient combustion, particularly in larger burners.
