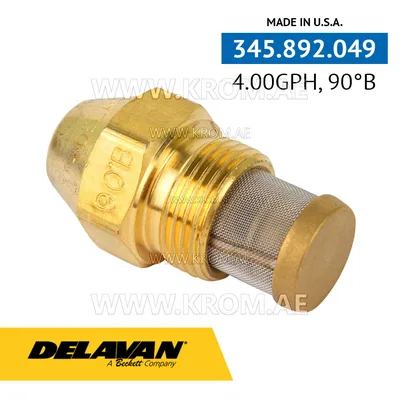

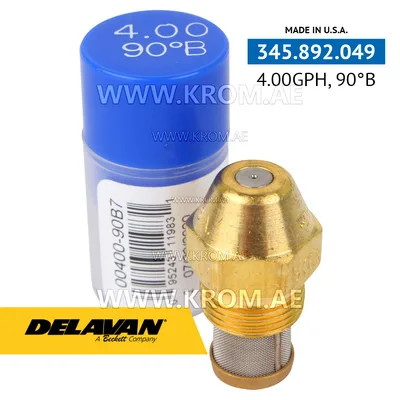

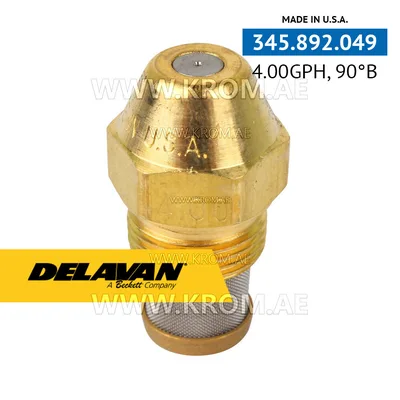

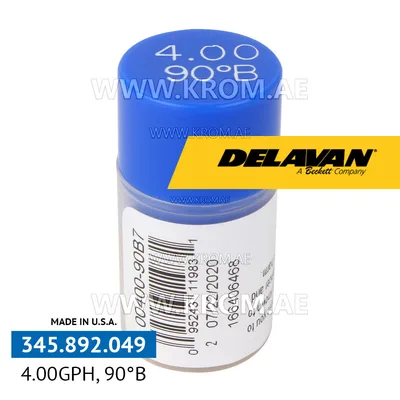

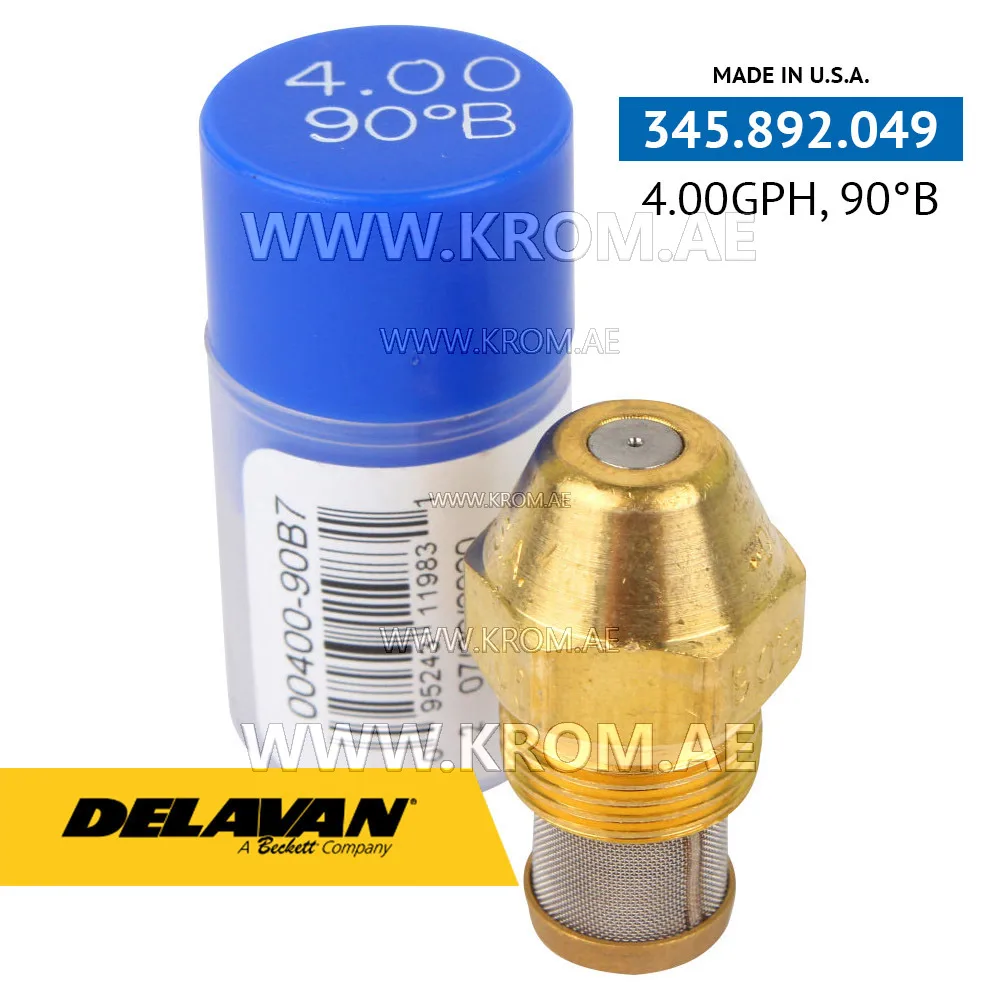

Delavan 4.00GPH, 90B (7) nozzle

Delavan 00400-90B7 oil burner nozzles in burners play a crucial role in the fuel combustion process, ensuring optimal fuel and air distribution. Their precise execution and high reliability guarantee the efficient operation of the heating system or production equipment. Thanks to innovative technologies and high-quality materials, Delavan 4.00GPH, 90B (7) oil nozzles provide stable and economical operation, which makes them an important component for achieving high productivity and energy efficiency in various industries and domestic use. Delavan 4.00GPH, 90B (7) oil burner nozzle technical data: Capacity: 4 gal/hr Spray angle: 90 degrees Nozzle Type: B SOLID-CONE Type B -nozzles produce a spray that distributes droplets fairly uniformly throughout the complete pattern. The spray pattern becomes progressively more hollow at higher flow rates, particularly above 8.00 GPH. Provides smooth ignition and efficient combustion, particularly in larger burners.
