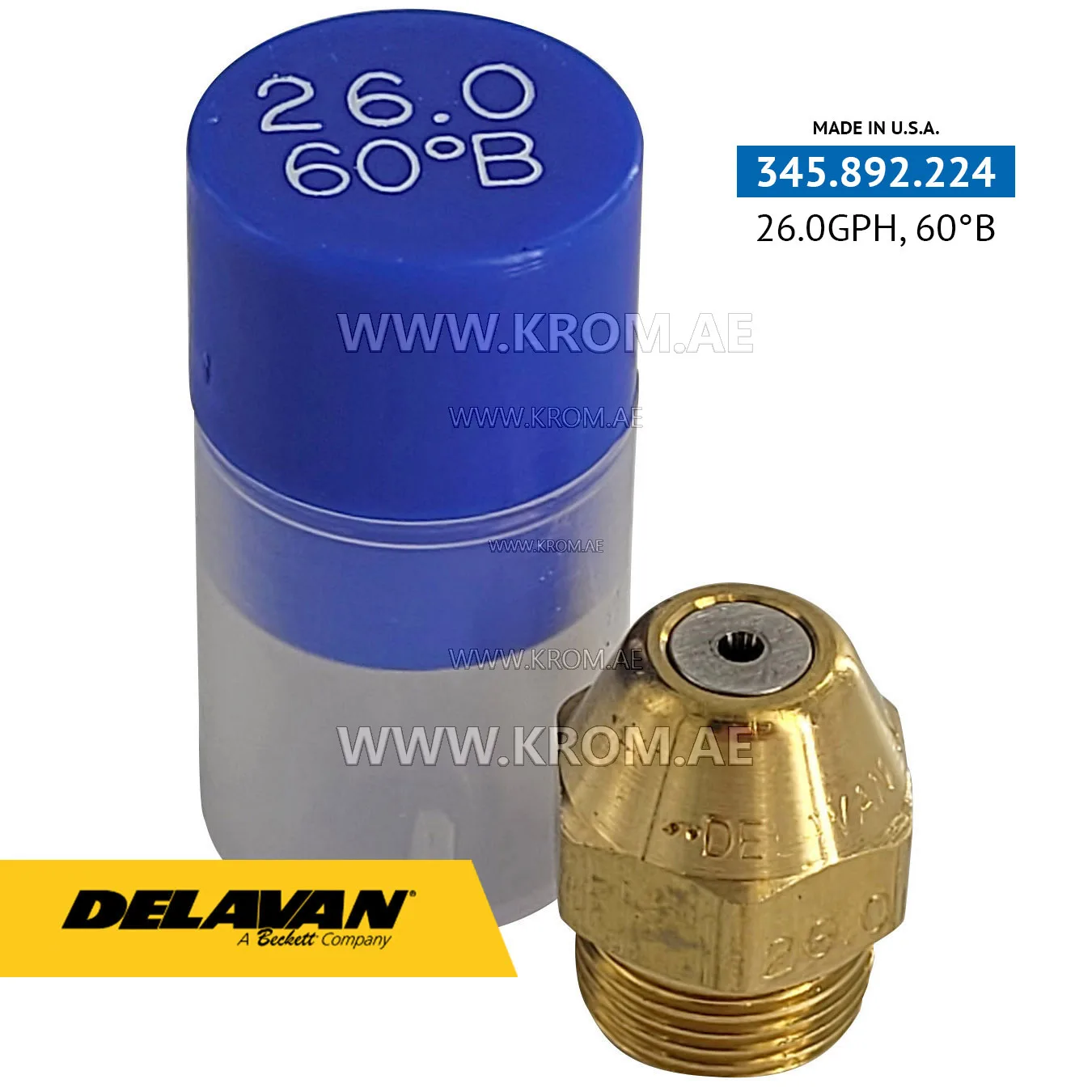

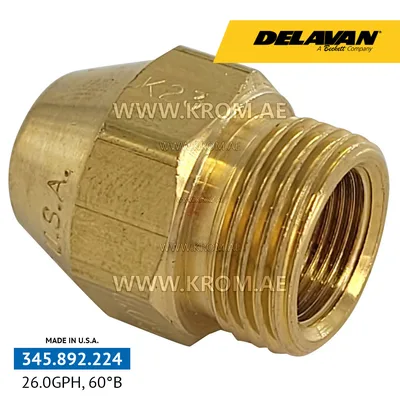

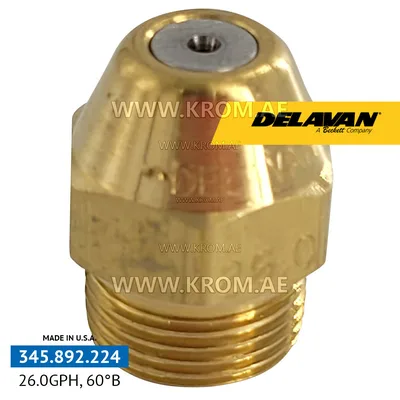

Delavan 26.00GPH, 60B nozzle

The Delavan 02600-60B0 oil nozzle includes a fuel supply adjustment mechanism, which allows you to adapt the combustion process to the changing operating conditions of the system. This is important to ensure stable and efficient operation of the burner under various loads and changes in external parameters such as ambient temperature or fuel composition. The Delavan 26.00GPH, 60B oil nozzle in the burners is the key element responsible for spraying and mixing fuel with air to ensure optimal combustion. Delavan 26.00GPH, 60B oil burner nozzle technical data: Capacity: 26 gal/hr Spray angle: 60 degrees Nozzle Type: B SOLID-CONE Type B -nozzles produce a spray that distributes droplets fairly uniformly throughout the complete pattern. The spray pattern becomes progressively more hollow at higher flow rates, particularly above 8.00 GPH. Provides smooth ignition and efficient combustion, particularly in larger burners.
