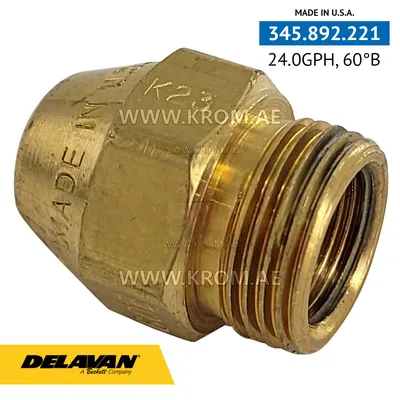

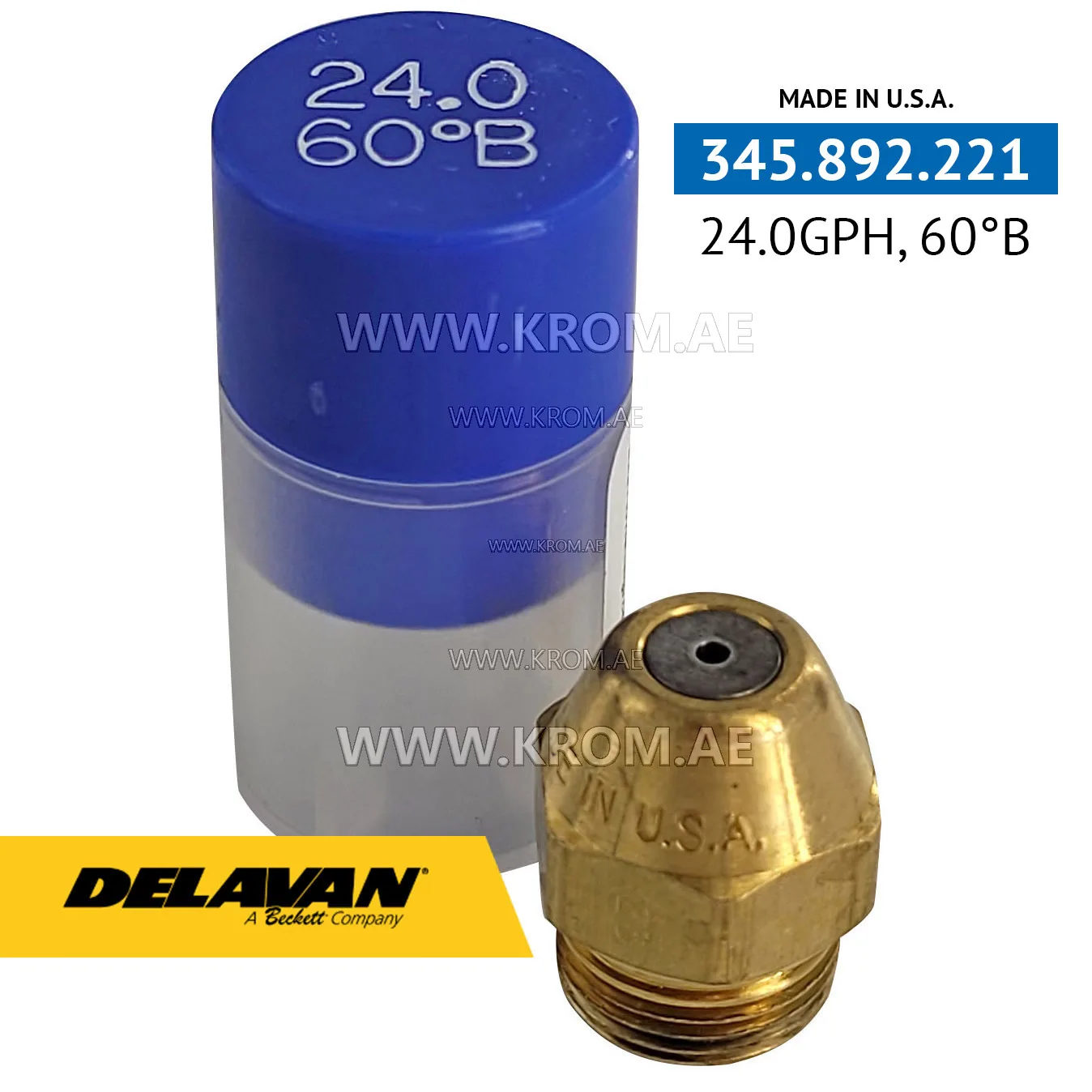

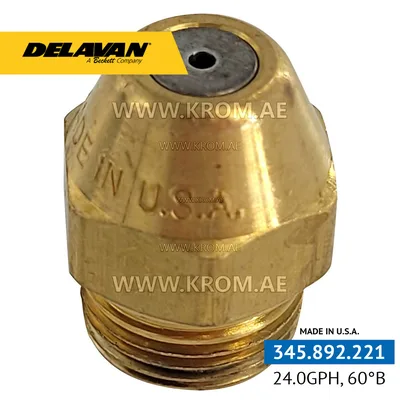

Delavan 24.00GPH, 60B nozzle

The Delavan 02400-60B0 oil nozzle in burners plays a key role in the fuel combustion process. It is responsible for spraying the fuel in the right volume and shape to ensure efficient combustion. The Delavan 24.00GPH, 60B oil burner nozzle supplies fuel to the burner under high pressure, which allows it to be sprayed evenly. This ensures a more complete combustion of the fuel, which increases the efficiency of the burner and reduces emissions of harmful substances. Delavan 24.00GPH, 60B oil burner nozzle technical data: Capacity: 24 gal/hr Spray angle: 60 degrees Nozzle Type: B SOLID-CONE Type B -nozzles produce a spray that distributes droplets fairly uniformly throughout the complete pattern. The spray pattern becomes progressively more hollow at higher flow rates, particularly above 8.00 GPH. Provides smooth ignition and efficient combustion, particularly in larger burners.
