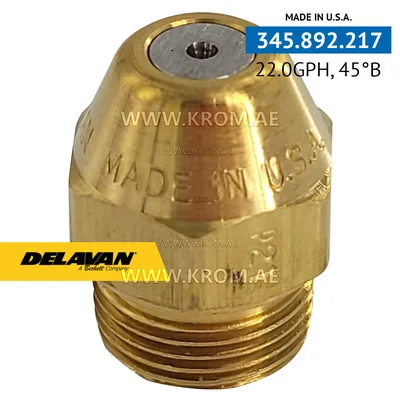

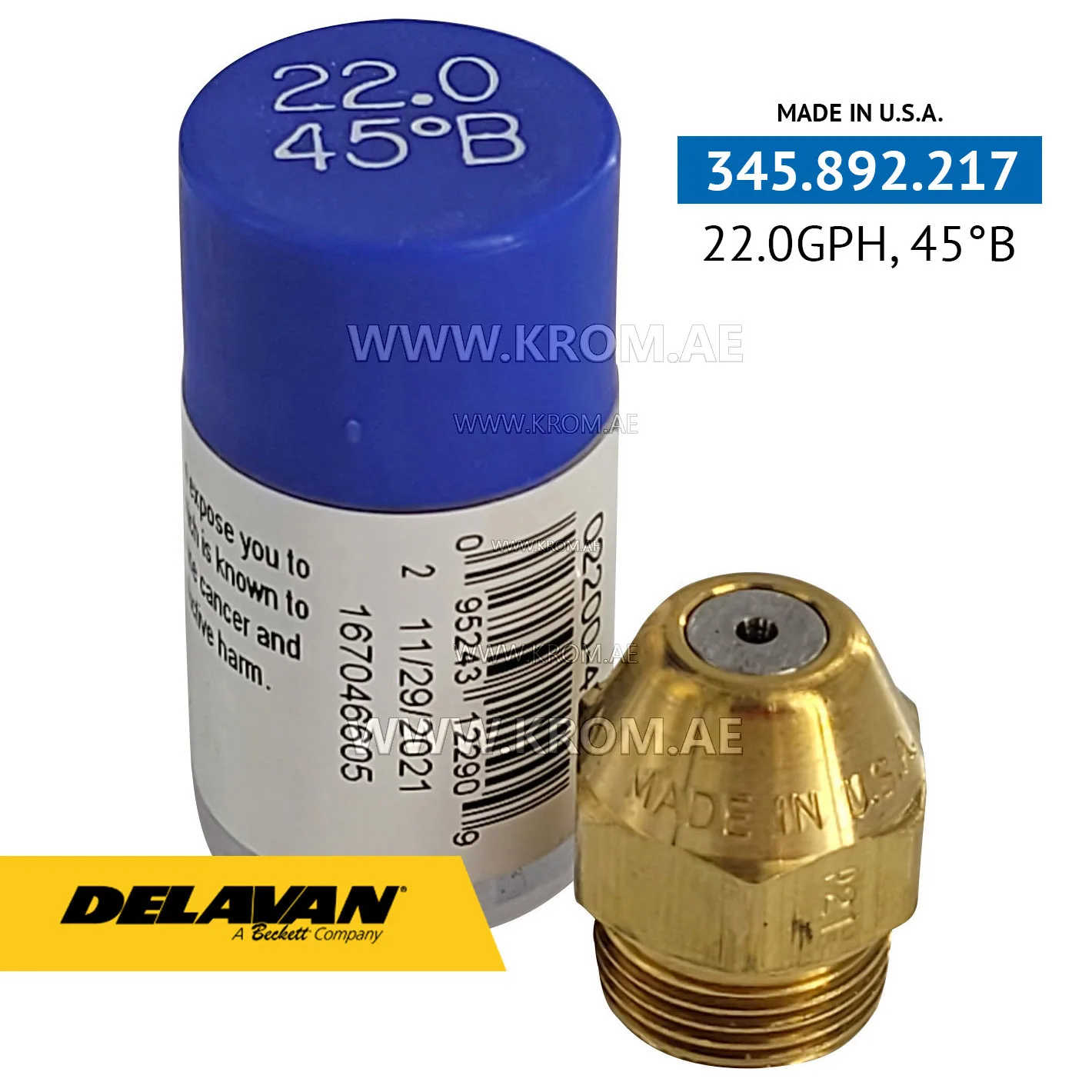

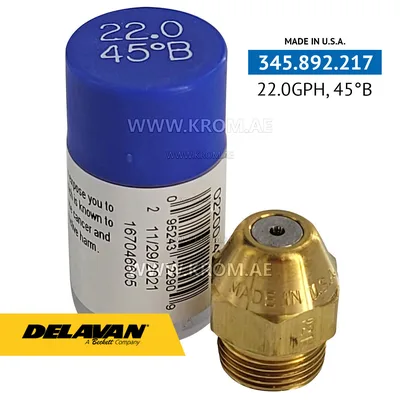

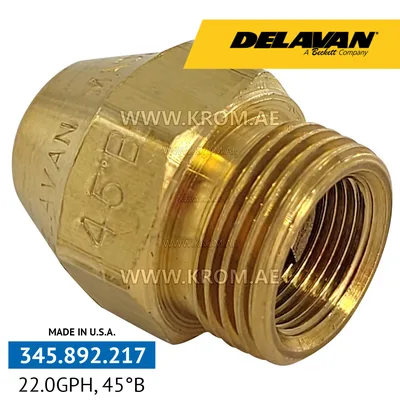

Delavan 22.00GPH, 45B nozzle

Delavan 22.00GPH, 45B oil nozzles in burners are a key element to ensure efficient fuel combustion and thermal energy generation. Features of the Delavan 22.00GPH, 45B oil burner nozzle: Nozzle geometry Materials of manufacture Adjustment mechanisms Delavan 22.00GPH, 45B oil burner nozzle technical data: Capacity: 22 gal/hr Spray angle: 45 degrees Nozzle Type: B SOLID-CONE Type B -nozzles produce a spray that distributes droplets fairly uniformly throughout the complete pattern. The spray pattern becomes progressively more hollow at higher flow rates, particularly above 8.00 GPH. Provides smooth ignition and efficient combustion, particularly in larger burners.
