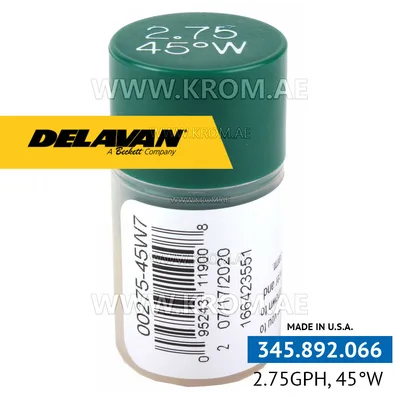

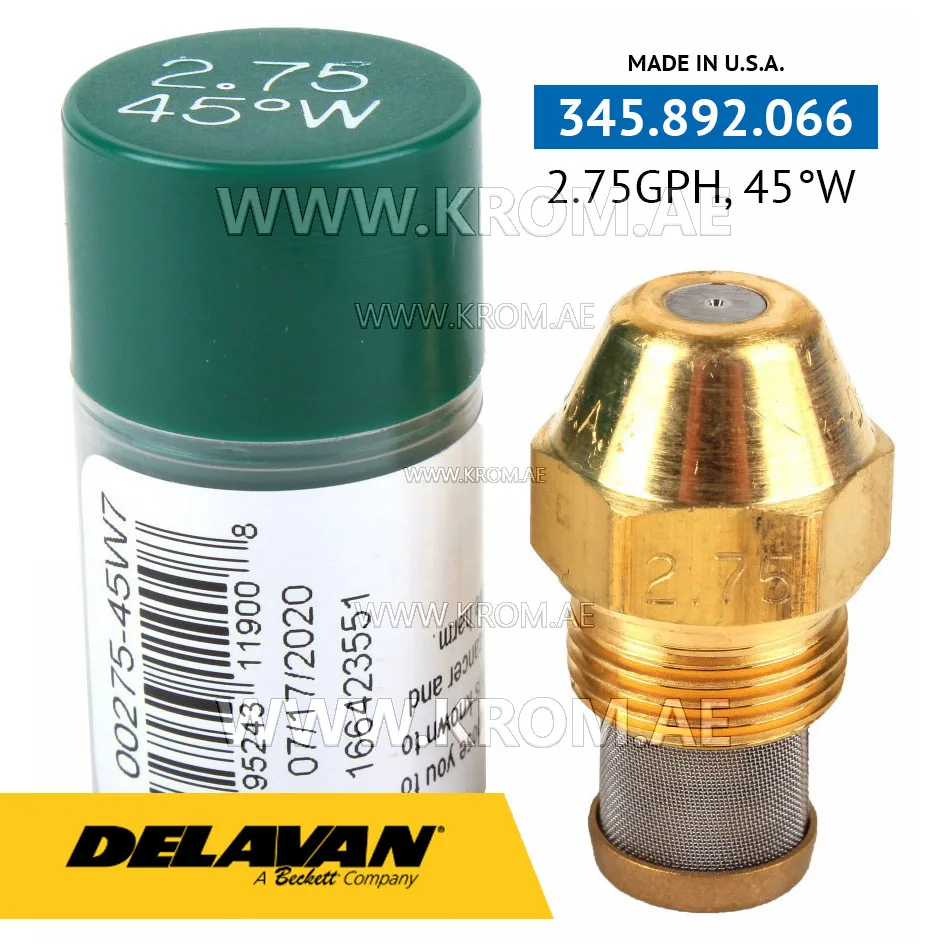

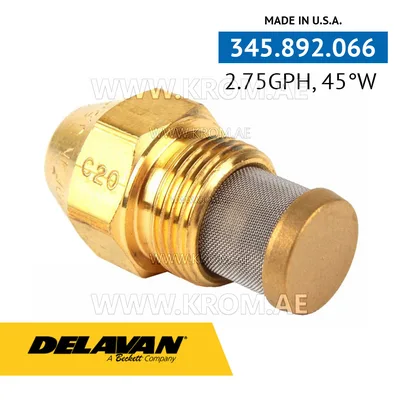

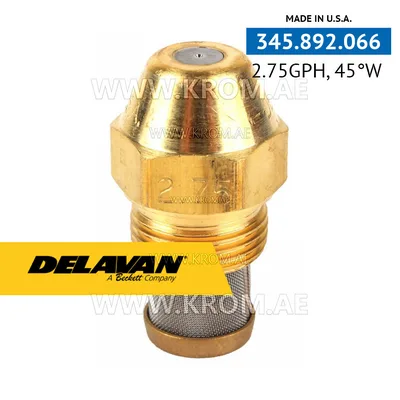

Delavan 2.75GPH, 45W (7) nozzle

The Delavan oil nozzle 00275-45W7 in burners is the key element responsible for spraying and mixing fuel with air to ensure optimal combustion. This component plays a critical role in the fuel combustion process, ensuring efficiency and energy savings in the heating system or production process. The main function of the Delavan oil burner nozzle 2.75GPH, 45W (7) is to create a fine spray of fuel inside the burner chamber. This is achieved due to the high pressure with which the fuel enters the nozzle and the specially designed design of the nozzle itself. The sectional or conical shape of the inner nozzle channel ensures optimal fuel distribution over the entire area of the burner chamber. Delavan 2.75GPH, 45W (7) oil burner nozzle technical data: Capacity: 2.75 gal/hr Spray angle: 45 degrees Nozzle Type: W Type W «ALL PURPOS» -nozzles are neither truly hollow nor solid. These nozzles frequently can be used in place of either solid or hollow cone nozzles between 0.40 and 8.00 GPH, regardless of the burner’s air pattern. The lower flow rates tend to be more hollow.
