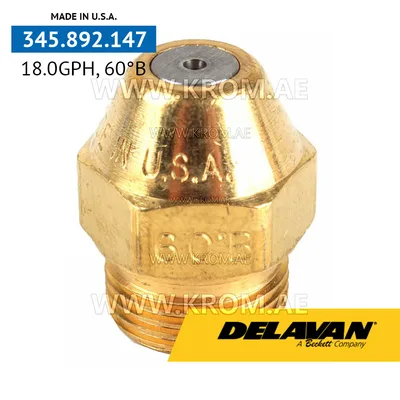

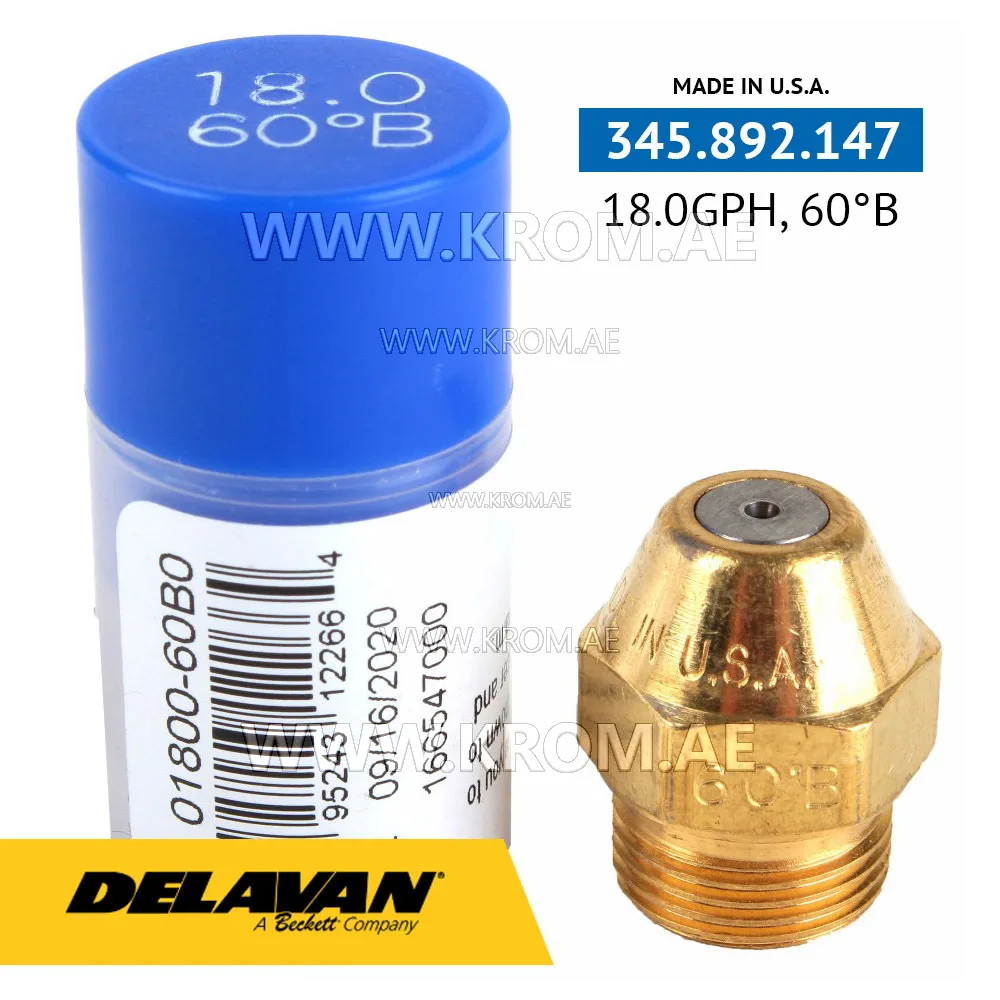

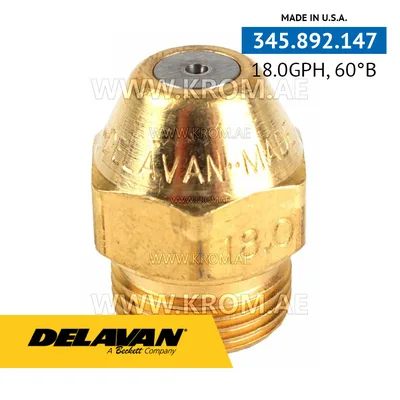

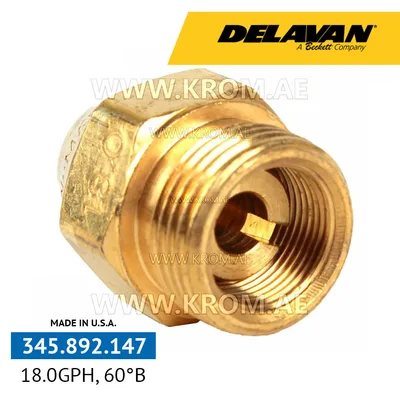

Delavan 18.00GPH, 60B (0) nozzle

01800-60B0 oil burner nozzles in burners play an important role in the fuel combustion process, ensuring efficient mixing with air and regulating the fuel supply for optimal combustion. Despite the importance of Delavan 18.00GPH, 60B (0) oil nozzles, regular maintenance and operation monitoring are necessary to prevent possible breakdowns and ensure long-term and efficient operation of the heating system. Technical data Capacity: 18 gal/hr Spray angle: 60 degrees Nozzle Type: B SOLID-CONE Type B -nozzles produce a spray that distributes droplets fairly uniformly throughout the complete pattern. The spray pattern becomes progressively more hollow at higher flow rates, particularly above 8.00 GPH. Provides smooth ignition and efficient combustion, particularly in larger burners.
