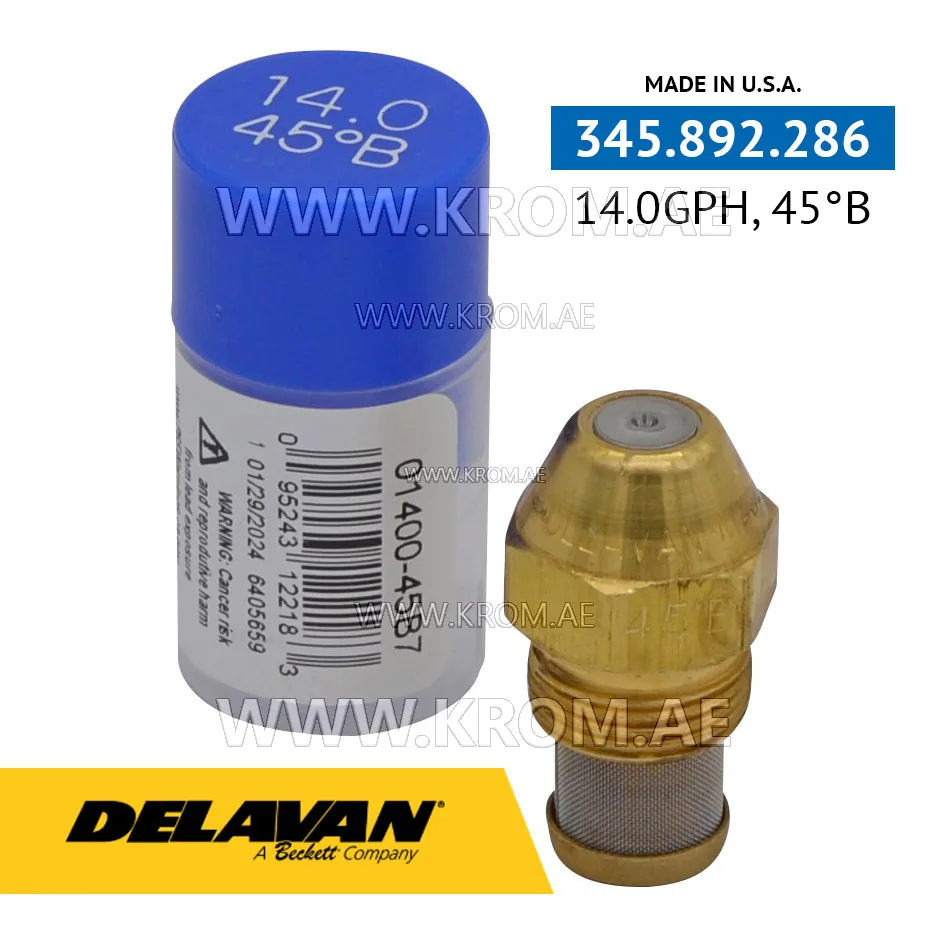

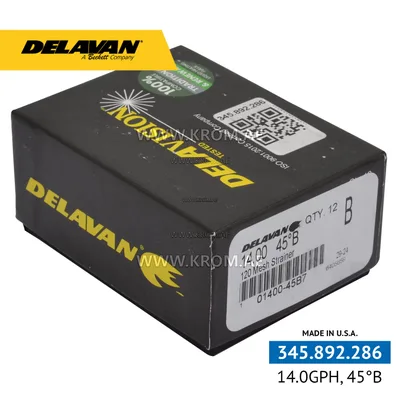

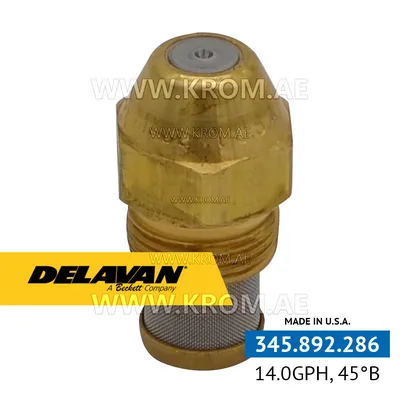

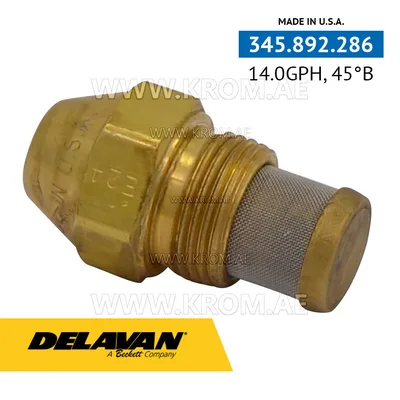

Delavan 14.00GPH, 45B nozzle

The Delavan 01400-45B7 oil nozzles in the burners not only ensure an even distribution of fuel and the formation of an optimal mixture with air, but also have their own characteristics. Delavan 14.00GPH, 45B oil burner nozzles can be designed to take into account specific burner operating parameters such as pressure and fuel delivery rate to ensure optimal combustion. In addition, Delavan 14.00GPH, 45B oil nozzles can have various shapes and sizes of holes, as well as adjustment mechanisms that allow you to change fuel consumption depending on the needs of the heating system or the production process. Delavan 14.00GPH, 45B oil burner nozzle technical data: Capacity: 14 gal/hr Spray angle: 45 degrees Nozzle Type: B SOLID-CONE Type B -nozzles produce a spray that distributes droplets fairly uniformly throughout the complete pattern. The spray pattern becomes progressively more hollow at higher flow rates, particularly above 8.00 GPH. Provides smooth ignition and efficient combustion, particularly in larger burners.
