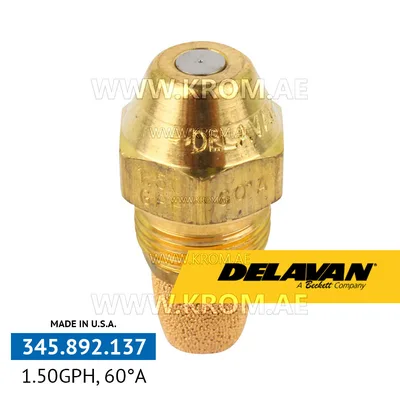

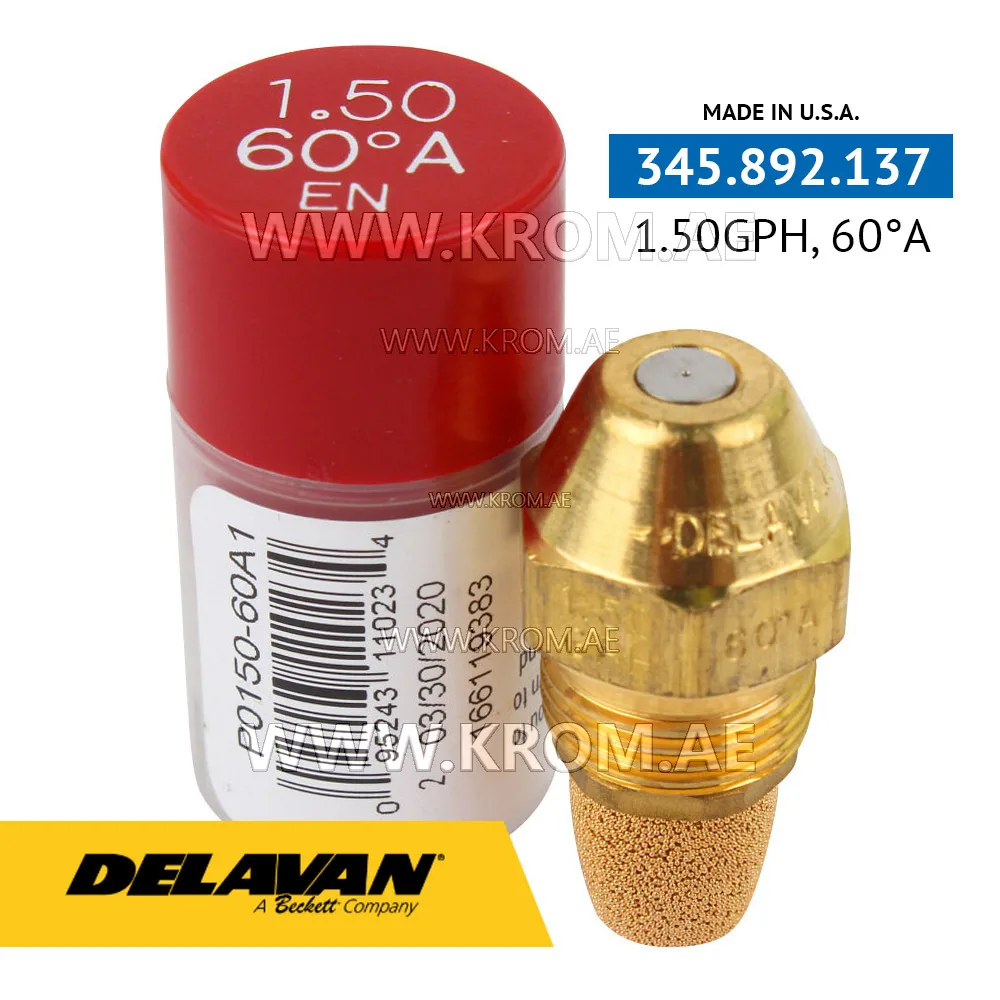

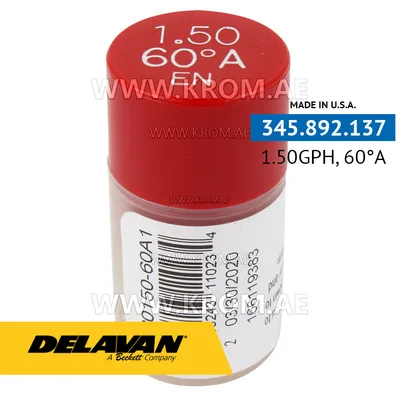

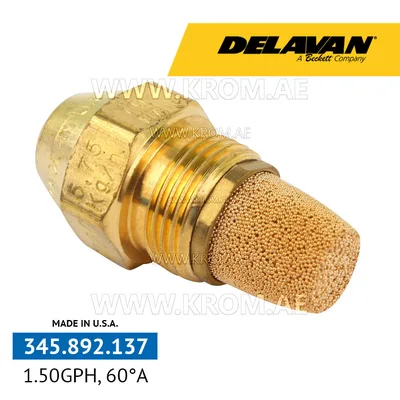

Delavan 1.50GPH, 60A (1) nozzle

Delavan P0150-60A1 nozzles in burners are devices that are used to spray fuel in the combustion chamber. They play a key role in the fuel combustion process, ensuring uniform and efficient mixing of fuel with air. Features of Delavan injectors 1.50GPH, 60A (1): Fuel sprayed in the combustion chamber. Ensure uniform mixing of fuel with air. Consist of a metal housing with a hole or channel. High-pressure fuel passes through them. The holes or nozzle design disperse the fuel into small droplets. The size, shape and location of the holes can be adjusted to the operating conditions of the burner. The quality of the injectors affects combustion efficiency, fuel consumption and emissions of harmful substances. Regular maintenance and checking of the injectors are important to keep the burner running. Delavan 1.50GPH, 60A (1) oil burner nozzle technical data: Capacity: 1.5 gal/hr Spray angle: 60 degrees Nozzle Type: A HOLLOW-CONE Type A-nozzles are mainly used on burners with a hollow cone air pattern and for through puts up to 2.00 GPH. The droplet distribution is concentrated on the outside of the cone and results in good ignition and low-noise combustion.
