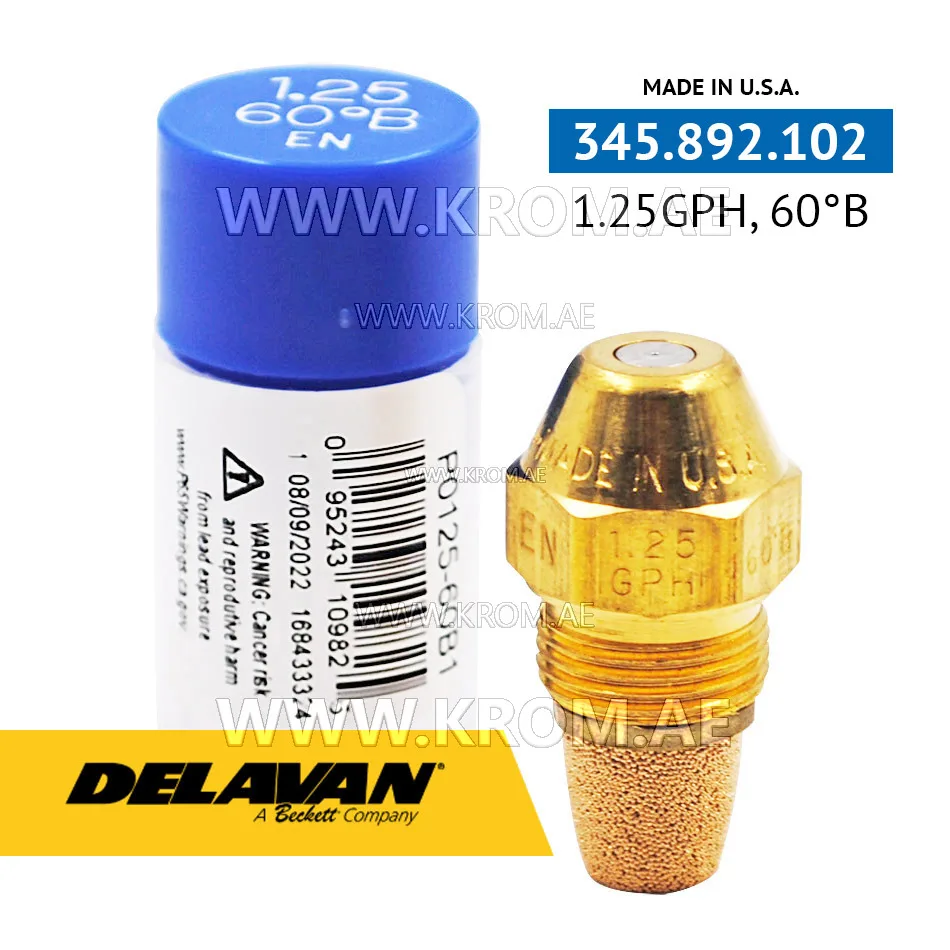

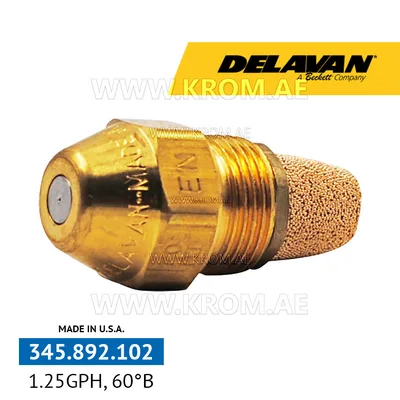

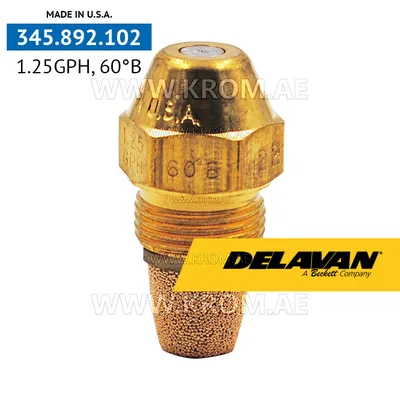

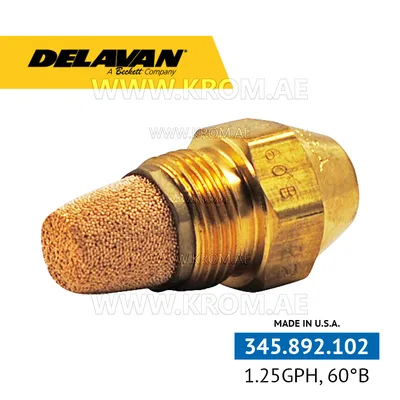

Delavan 1.25GPH, 60B (1) nozzle

The principle of operation of the Delavan P0125-60B1 oil nozzles is based on the mechanism of liquid dispersion into the smallest droplets. Under the influence of high pressure, the fuel passes through a narrow channel in the nozzle, where it is separated into the smallest particles. These fuel droplets are then evenly sprayed in the air stream, creating a mixture of fuel and air with an optimal ratio for efficient combustion. Delavan 1.25GPH, 60B (1) oil burner nozzle technical data: Capacity: 1.25 gal/hr Spray angle: 60 degrees Nozzle Type: B SOLID-CONE Type B -nozzles produce a spray that distributes droplets fairly uniformly throughout the complete pattern. The spray pattern becomes progressively more hollow at higher flow rates, particularly above 8.00 GPH. Provides smooth ignition and efficient combustion, particularly in larger burners.
