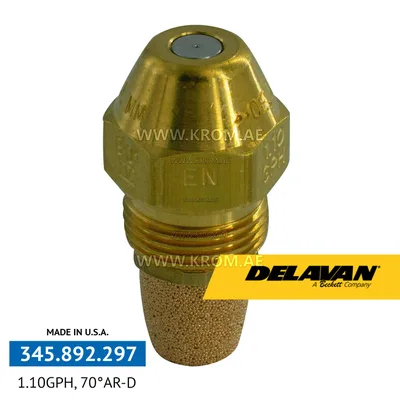

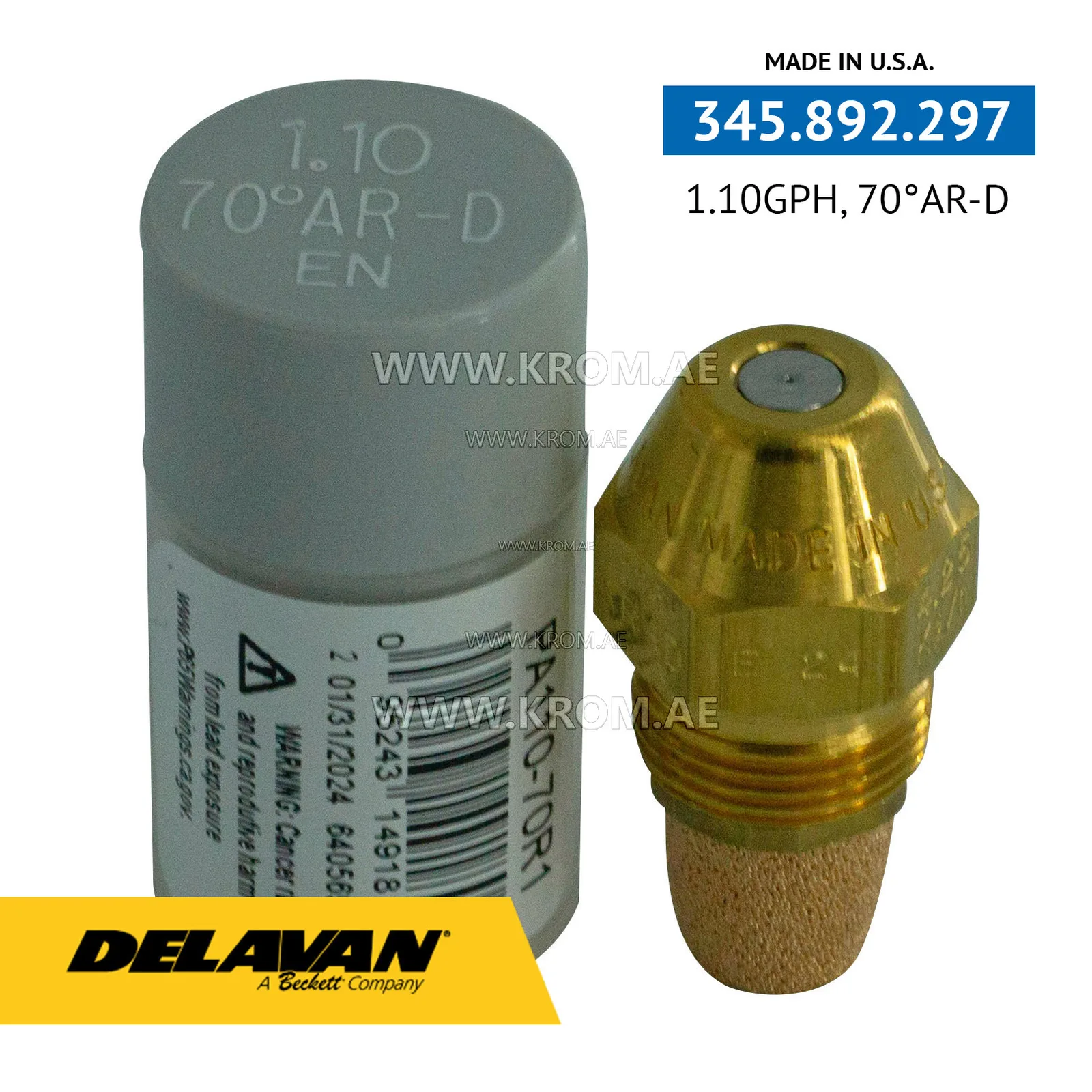

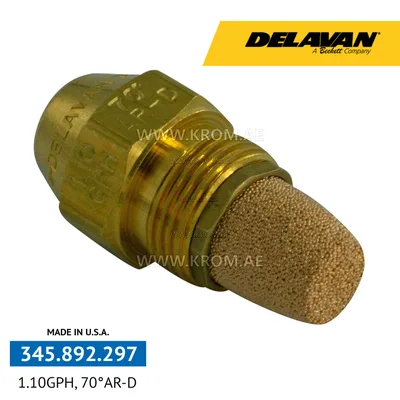

Delavan 1.10 GPH, 70AR (1) nozzle

Delavan PA110-70R1 oil burner nozzles in burners designed to spray fuel before it enters the burner or combustion chamber. These components play an important role in the system, ensuring efficient mixing of fuel with air and creating optimal conditions for the combustion process. Delavan 1.10 GPH, 70AR oil burner nozzles are used in various technical devices, including heating boilers, gas stoves and even aircraft engines. Delavan 1.10 GPH, 70AR oil burner nozzle technical data: Capacity: 1.1 gal/hr Spray angle: 70 degrees Nozzle Type: AR Type AR-D Nozzles are of a «solid cone» type similar to Type B but with a slightly lower concentration of the droplets in the center of the cone. They are high performance in burners of low up to medium capacity (up to flows of 2.00 GPH).
